Zone4 Bell Connection
Zone4 (Z4+ and Z4‑) can be connected to the control panel bell output. This zone detects an alarm condition on the
control panel by monitoring the voltage and cadence timing of the bell output. The communicator evaluates the first
3.5seconds of bell cadence timing to detect the type of alarm sent. See Figure 6.
To enable alarm detection operation, Zone4 Bell Connection must be programmed as Zone Type (A2) in Zone
Information programming. See Table 2 for bell cadence type, zone number, and type of message sent to the receiver.
The communicator generates zones5 and6 using the zone name of zone4 to send to the central station. Zones5
and6 cannot be preprogrammed in Zone Information. CID Dialer Connection cannot be used when using Zone4 Bell
Connection.
BELL CADENCE ZONE NUMBER TYPE OF MESSAGE
Steady Zone4 Burglary
Pulse or Temporal3 Zone5 Fire
Temporal4 Zone6 Emergency or Carbon Monoxide
Table 2: Message Breakdown

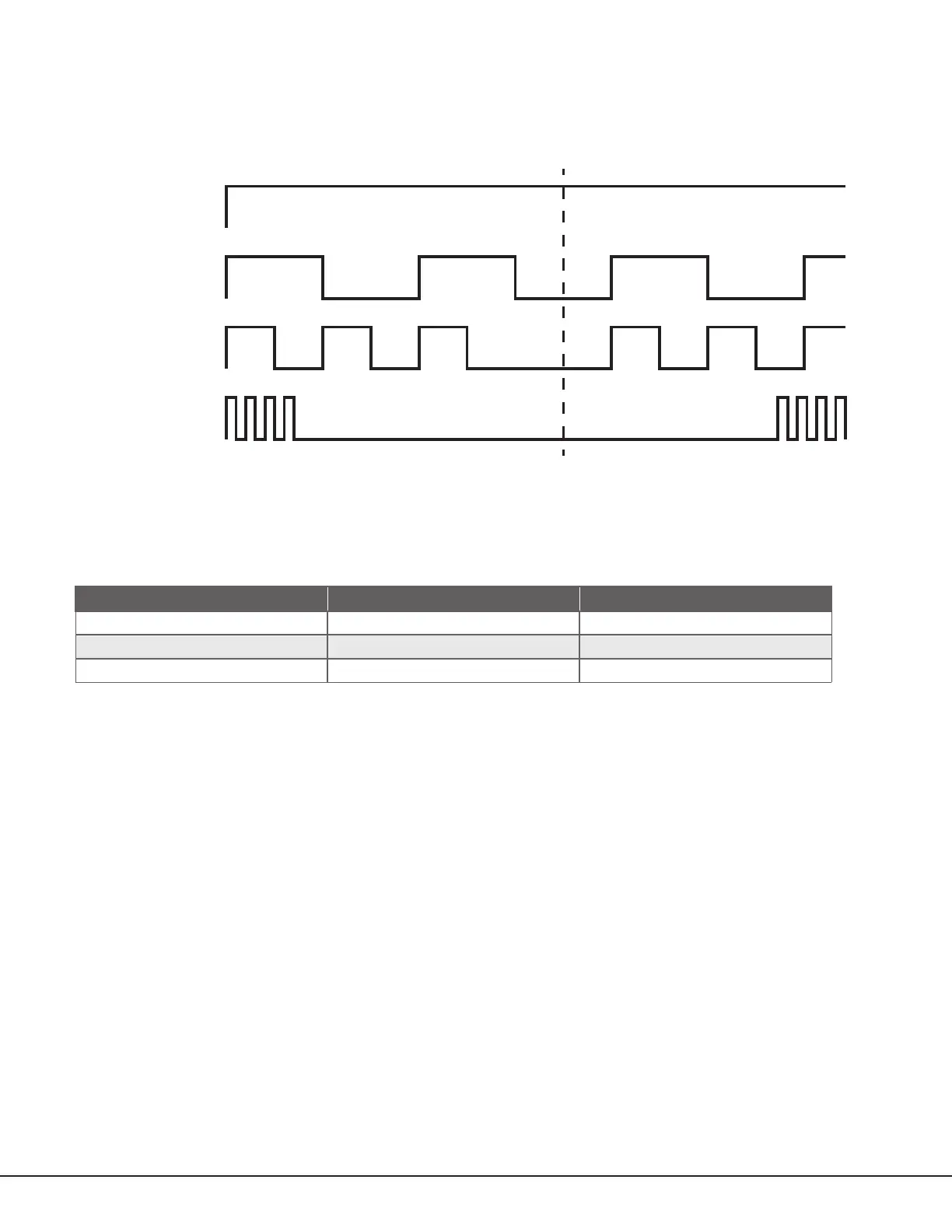

Figure 6: Zone 4 Bell Cadence Information
Steady
Pulse
Temporal 3
Temporal 4
1.0 sec 1.0 sec 1.0 sec 1.0 sec 1.0 sec
0.5 sec 0.5 sec 0.5 sec 1.5 sec 0.5 sec0.5 sec 0.5 sec 0.5 sec
3.5 sec
Each 0.1 sec On
5.0 sec
On
O
On
O
On
O
On
O
Each 0.1 sec O
Each 0.1 sec On
Each 0.1 sec O
