eBox-3300
14
ONBOARD CONNECTORS SUMMARY
SUMMARY TABLE FOR CPU BOARD
Nbr Description Type of Connections Pin nbrs.
J1 IDE connector Box Header 22x2 2.0mm 44-pin
J3 USB (Back) USB Connector 8-pin
J4 USB (Front) USB Connector 8-pin
J5 USB (Front) USB Connector 8-pin
J6 JTAG connector Wafer 1.25mm 6-pin
J8 PS/2 keyboard or Mouse Mini DIN Connector 6-pin
J9 COM1 Port Box Header 5x2 2.0mm 10-pin
J11 COM2 Port Box Header 5x2 2.0mm 10-pin
J12 DC 5V Input Mini-Din Connector 3-pin
J14: Mini PCI Mini PCI socket 124-pin
J15 VGA Connector D-Sub Connector 15-pin
J18 Secondary IDE Master Dip Switch 2-pin
J19 Line-Out Audio Jack 2-pin
J20 Microphone Audio Jack 2-pin
JP1 JTAG enable Jumper 2-pin
LAN Ethernet LAN RJ-45 8-pin

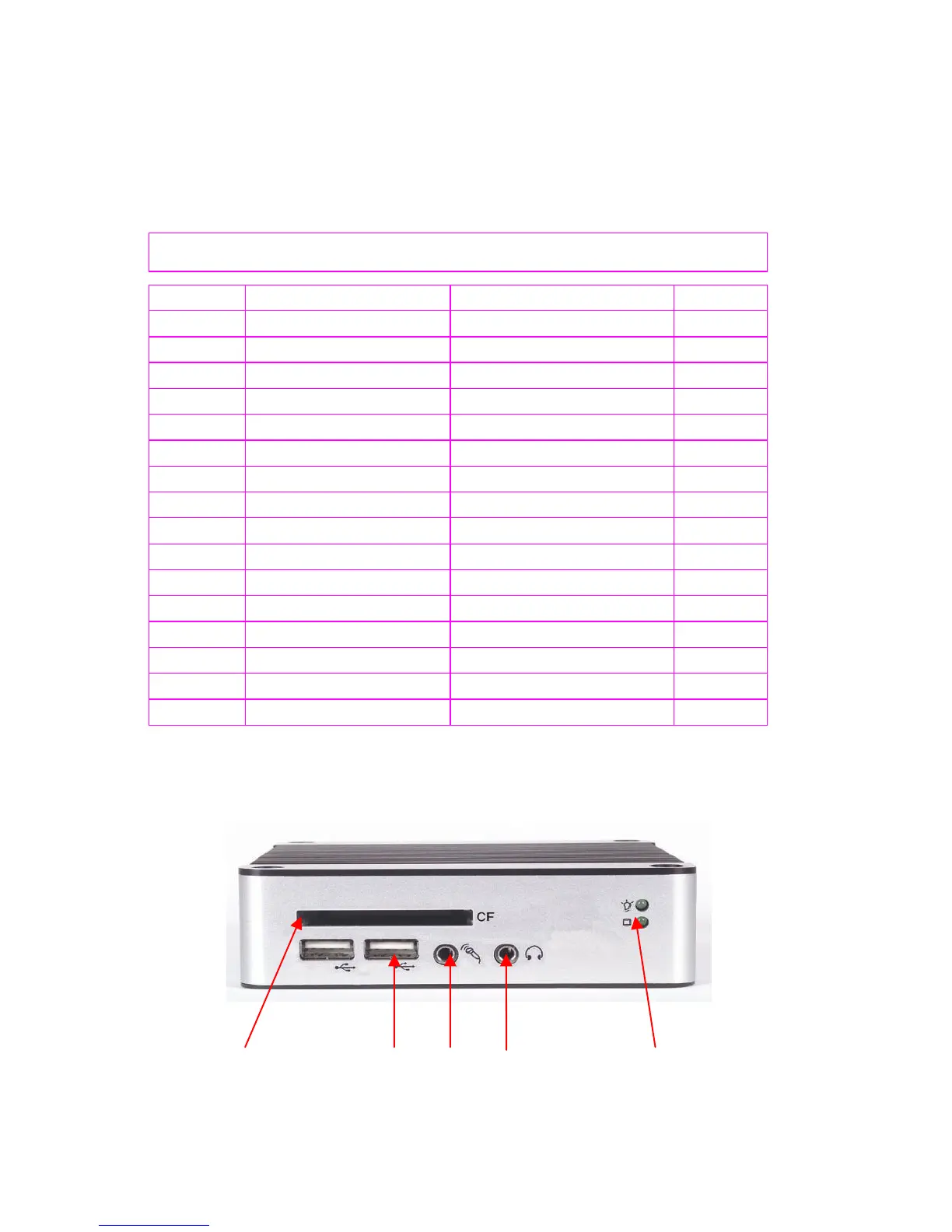

` FRONT CONNECTORS OUTLINE FOR eBOX-3300
CF, Micro SD Slot USB Min In, Line Out PWR, ACT LED
APPENDIX
