eBox-3300
16
`

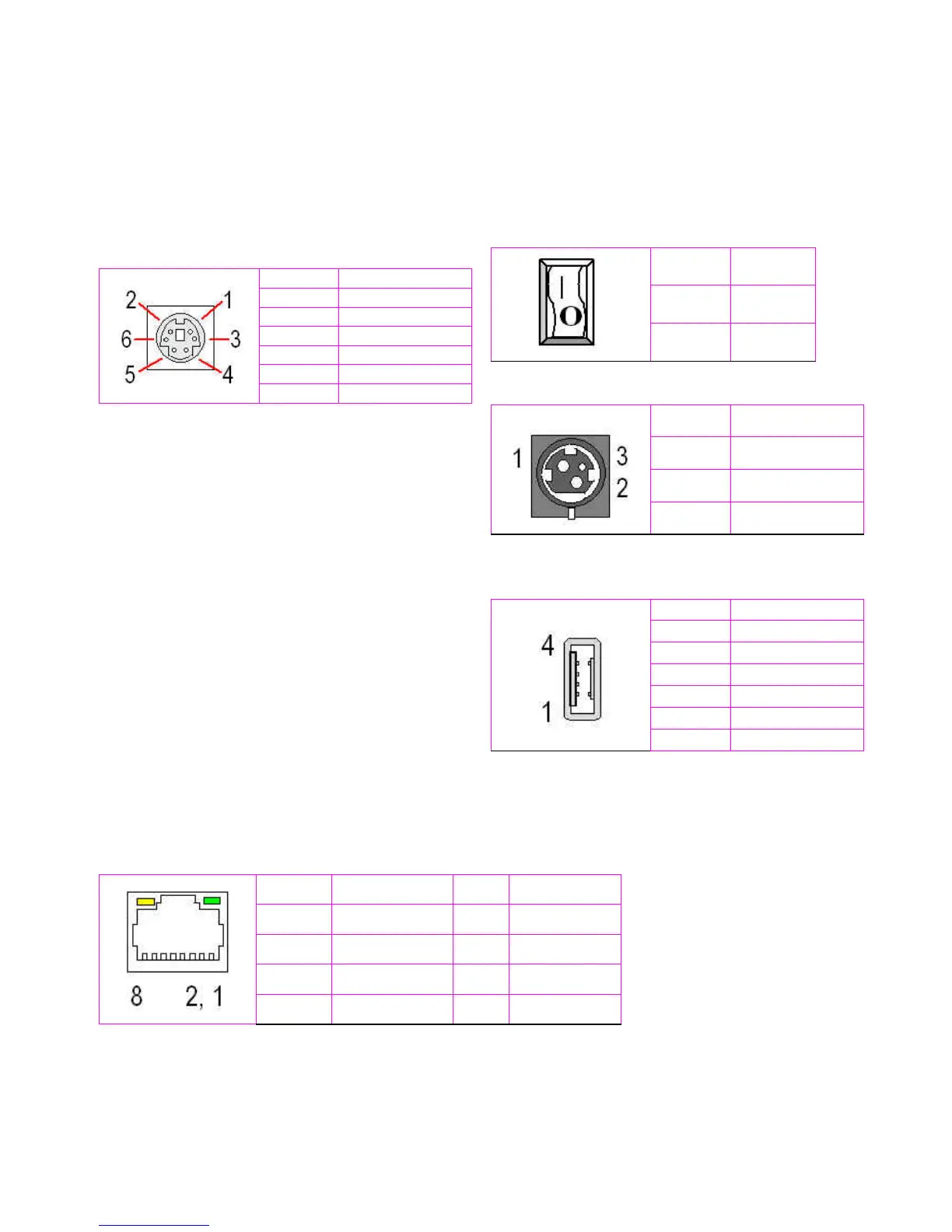

PIN ASSIGNMENTS
J8:PS/2 Keyboard or Mouse – 6-pin Mini-Din
Connector
Pin # Signal Name
1 KBCLK
2 PMCLK
3 GND
4 KBDAT
5 PMDAT
6 SB5V
Power SW – Push Button Switch
Pin # Status
| ON
O OFF
J12: DC-IN (5V) – 3-pin Mini-Din Lock Pin Socket
Pin #
Signal Name
1 VCC
2 GND
3 NC
J3: USB (90
o
)– 4-pin USB Type 1 Connector
(Vertical Type)
Pin # Signal Name
1 VCC
2 USB0-
3 USB0+
4 GND
5 GGND
6 GGND
LAN: RJ-45 Connector
Pin # Signal Name Pin # Signal Name
1 FTXD+ 2 FTXD-
3 FRXIN+ 4 NC
5 NC 6 FRXIN-
7 NC 8 NC
