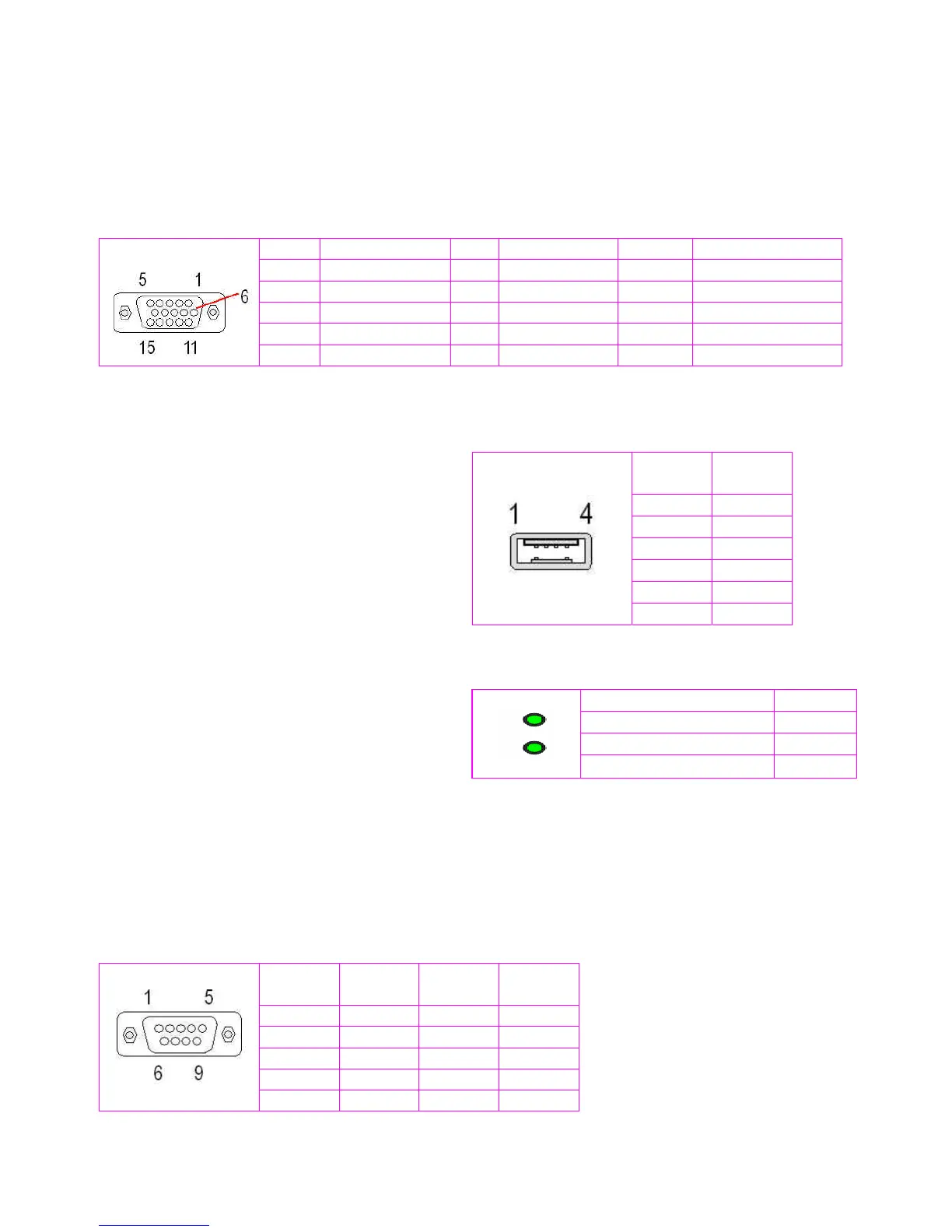

PIN ASSIGNMENTS
J15: VGA – 15-pin D-Sub Connector
Pin # Signal Name Pin # Signal Name Pin # Signal Name
1 MR 6 GND 11 NC
2 MG 7 GND 12 VCC
3 MB 8 GND 13 HYSYNC
4 NC 9 NC 14 VSYNC
5 GND 10 GND 15 VCC
J4,J5:USB (USB2): For connection to external USB
device –4-pin USB Type 1 Connector (H)
Pin #
Signal
Name
1 VCC
2 USB2-
3 USB2+
4 GND
5 NC
6 NC
LEDS: POWER ON/OFF & HDD R/W
LED Color State
Green Power On
Green HDD On
Green Flashes HDD R/W
J9,J11: COM - 9-pin D-Sub Connector
Pin #
Signal
Name
Pin #
Signal
Name
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1 -- --
