LUBRICATION
LUBRICATION CHART
LUBRICATION
LOCATION DESCRIPTION &
POINT NUMBER
SERVICE RECOMMENDATIONS
Hydraulic Feed Cylinder .
1 pint
(0. 47-liter)
1
capac ity . "Check oil le vel if head control is
not u niform•· add oil if necessary.
2
Saw Gulde Arm Slide . Clean & app ly oil.
3
Head Pivot Shaft Bearing Surfaces . App ly oil.
4
Miscellaneous :
Vise Slide, Hinges, Pivot Points,
Etc. Clean & apply oil.
5
Band Tension Screw . Clean & apply grease .
6
Motor Slide Rails. Clean & app ly grease .
7
Dr iv e Shaft Bearings . 2 grease fittings.
8
Electric Motor s. 011 cup &/or grease fit ti ngs .
9
Coolant Reservoir. 5- gallon (19-liter ) capac ity.
Drain, clean & refill as necessary .
LUBRICATION DIAGRAM
4

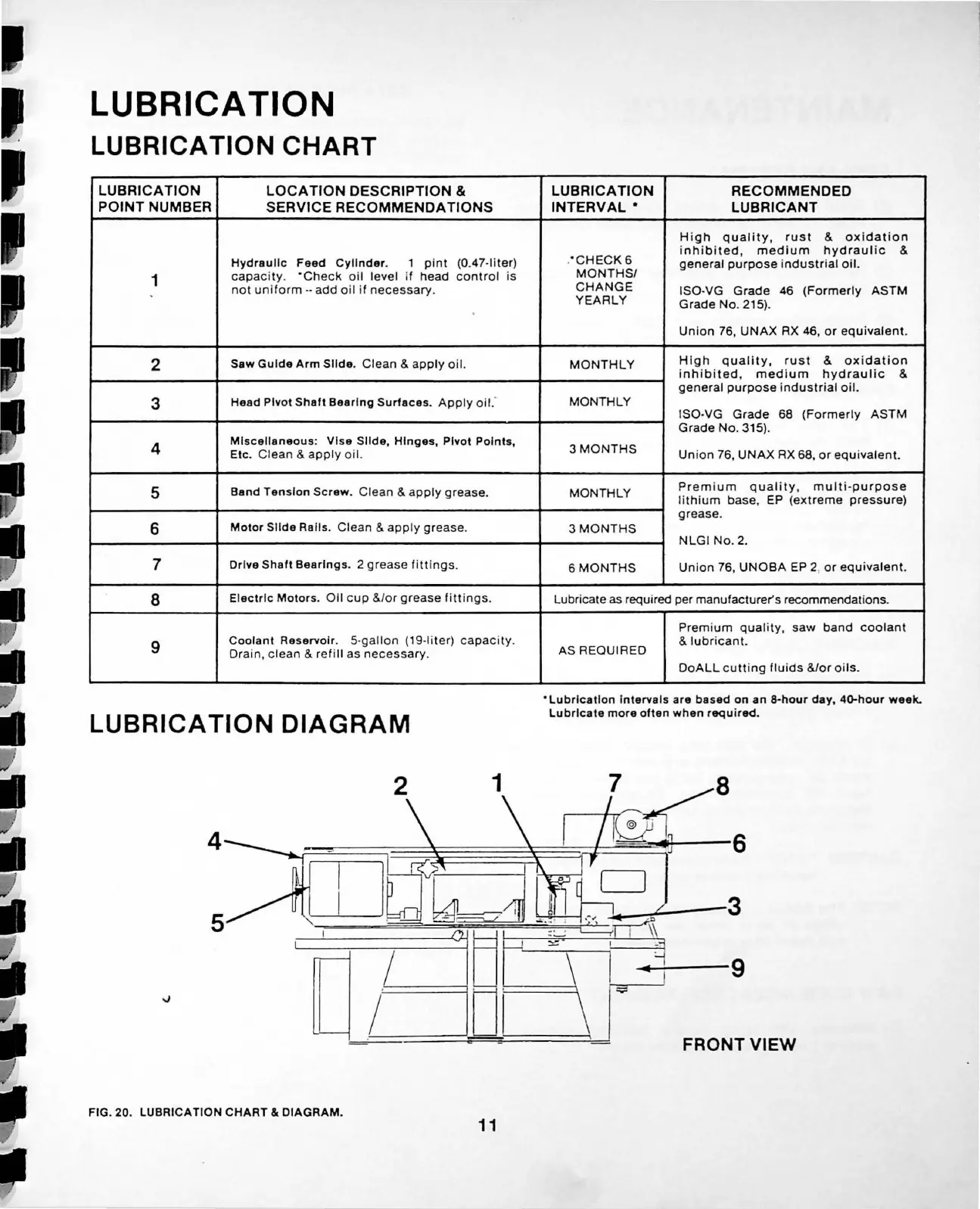

FIG. 20. LUBRICATION CHART & DIAGRAM.
11
LUBRICATION RECOMMENDED
INTERVAL*
LUBRICANT
High quality, rust &
oxidation
inhibited, medium hydraulic &
. •CHECK 6
general purpose industrial oil.
MONTHS/
CHANGE
ISO-VG Grade
46 (Formerly ASTM
YEARLY
G rade No. 215).
Union 76, UNAX RX 46, or equivalent.
MONTHLY
High quality , rust & oxidation
inhibited ,
med i um hydraulic
&
general purpose industrial oi l.
MONTHLY
ISO-VG Grade
68
( Formerly ASTM
Grade No . 315).
3 MONTHS
Un i on 76, UNAX RX 68. or equ i valent.
MONTHLY
Prem ium
quality, mult i -purpose
lith i um base , EP ( extreme pre ssu re)
grease .
3 MONTHS
NLGI No. 2.
6 MONTHS
Union 76, UNO BA EP 2. or equivalent .
Lubricate as required per manuf actu rer's recommendations.
Pr emium quality, saw band coolant
AS REQUIRED
& lubr i cant.
DoALL cutting fluids &/or oils .
"Lubr ication intervals are based on an 8·hour day, 40-hour week.
Lubr i cate more often when require d .
