11
At the same time, you need to consider placement of the Receiver so the antenna is not too close to
cables and devices, which may reduce its range.
Please note that a technician may need access to the Receiver, so check if it is easily accessible by
screwdriver.

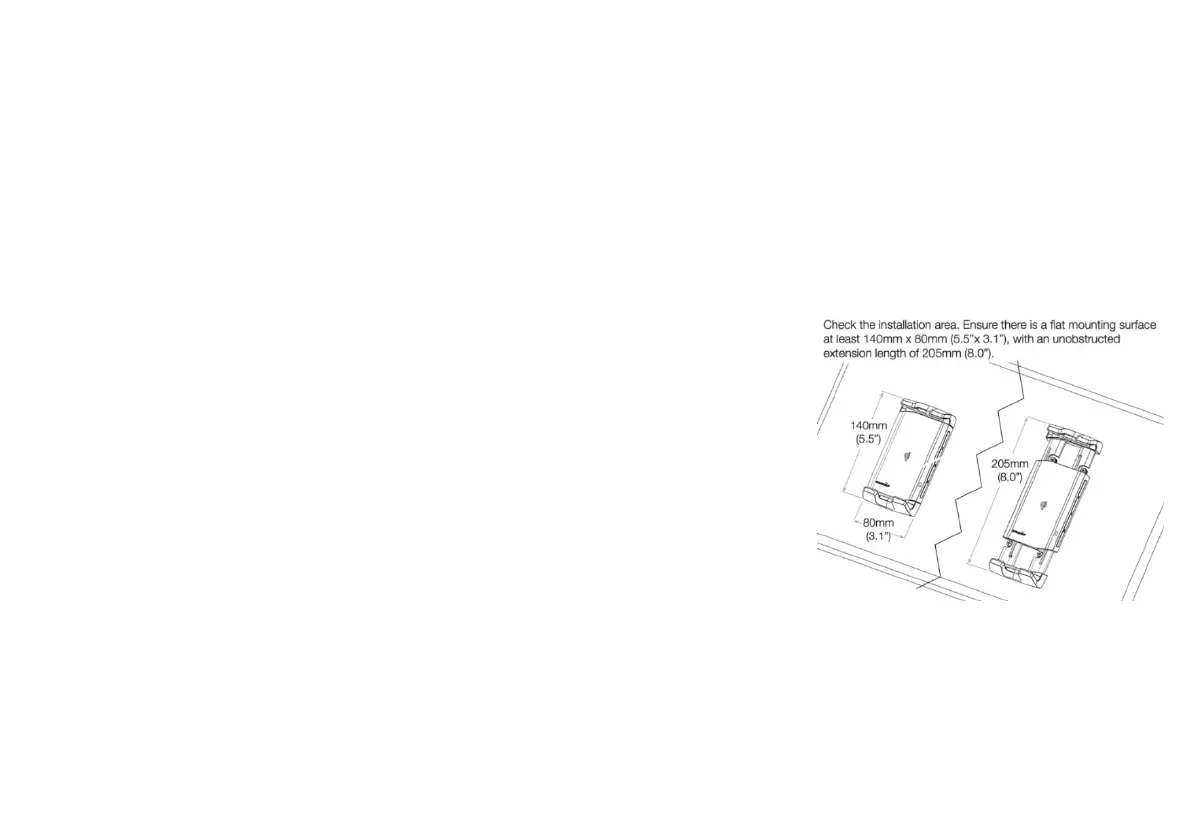

3.2. INSTALLATION OF THE CRADLE
The Dockmate Cradle is designed to be plugged into the Dockmate
Receiver.
A connection that bypasses the Receiver is also possible, but the
automatic switching to use the remote in the Cradle is then lost.
• Input voltage range: 10-30V DC (12/24V system)
• Input current max: 1.5A
• Output power: 5W (5V, 1A)
• Standby current draw: < 0.03W
• Certifications: Qi, CE, FCC, ROHSWaterproof rating: IPX6 front and back
