WHAT TO DO IN EMERGENCIES
237
6

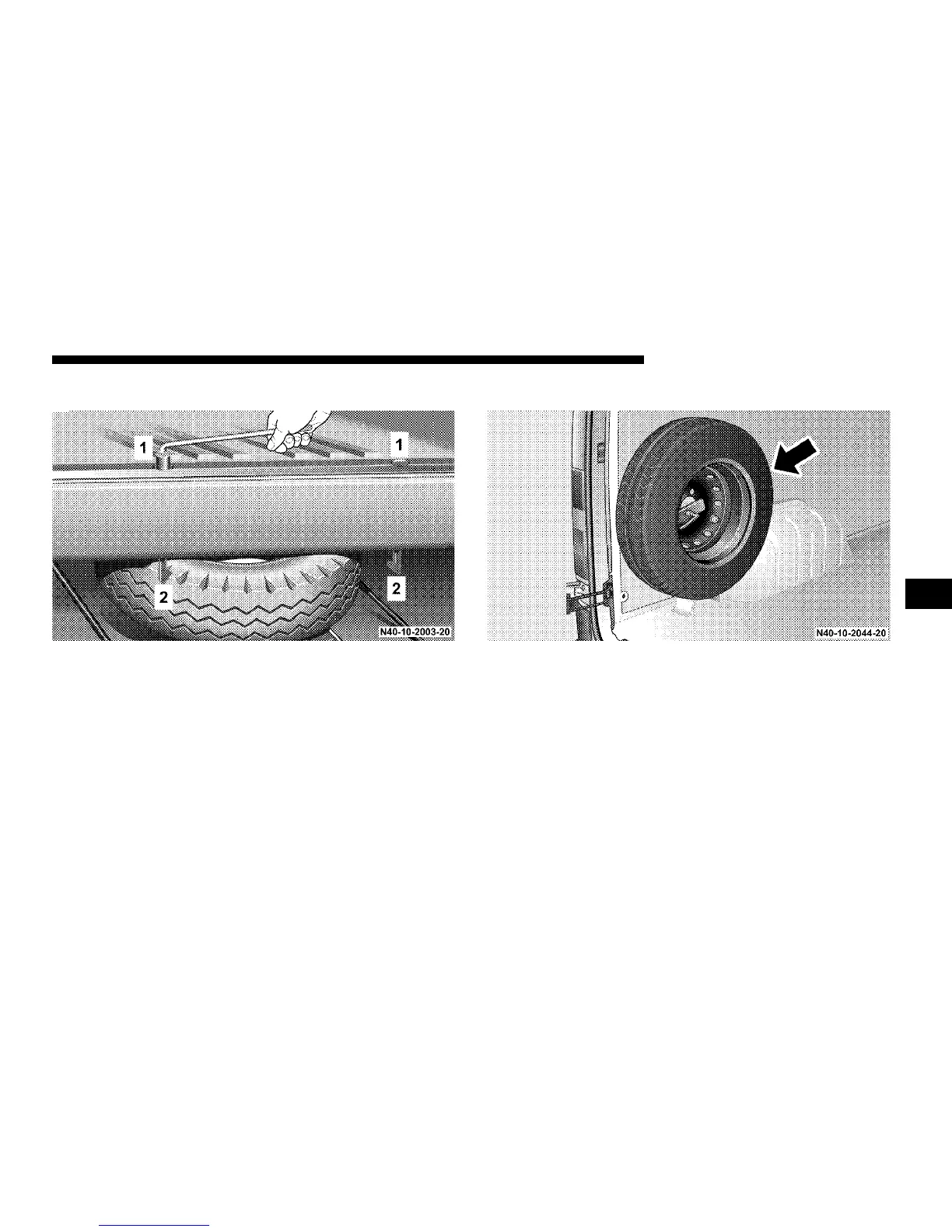

Spare Wheel Beneath the End of the Frame
Retaining screws for the spare wheel structural mem
ber
(1)
Hook (2)
1.
Open the cargo doors and
remove the retaining
screws
(1) with the lug wrench from the vehicle
tool kit.
2.
Lift the spare wheel structural member, unhinge
the hooks
(2), and lower the s
pare wheel structural
member. Remove the spare
wheel.
Spare Wheel in Cargo Area (Optional)
1.
Open the rear cargo doors.
236
238
