238
WHAT TO DO
IN EMERGENCIES
2.
Turn spare wheel
holder to loosen.
3.
Remove the spare wheel.

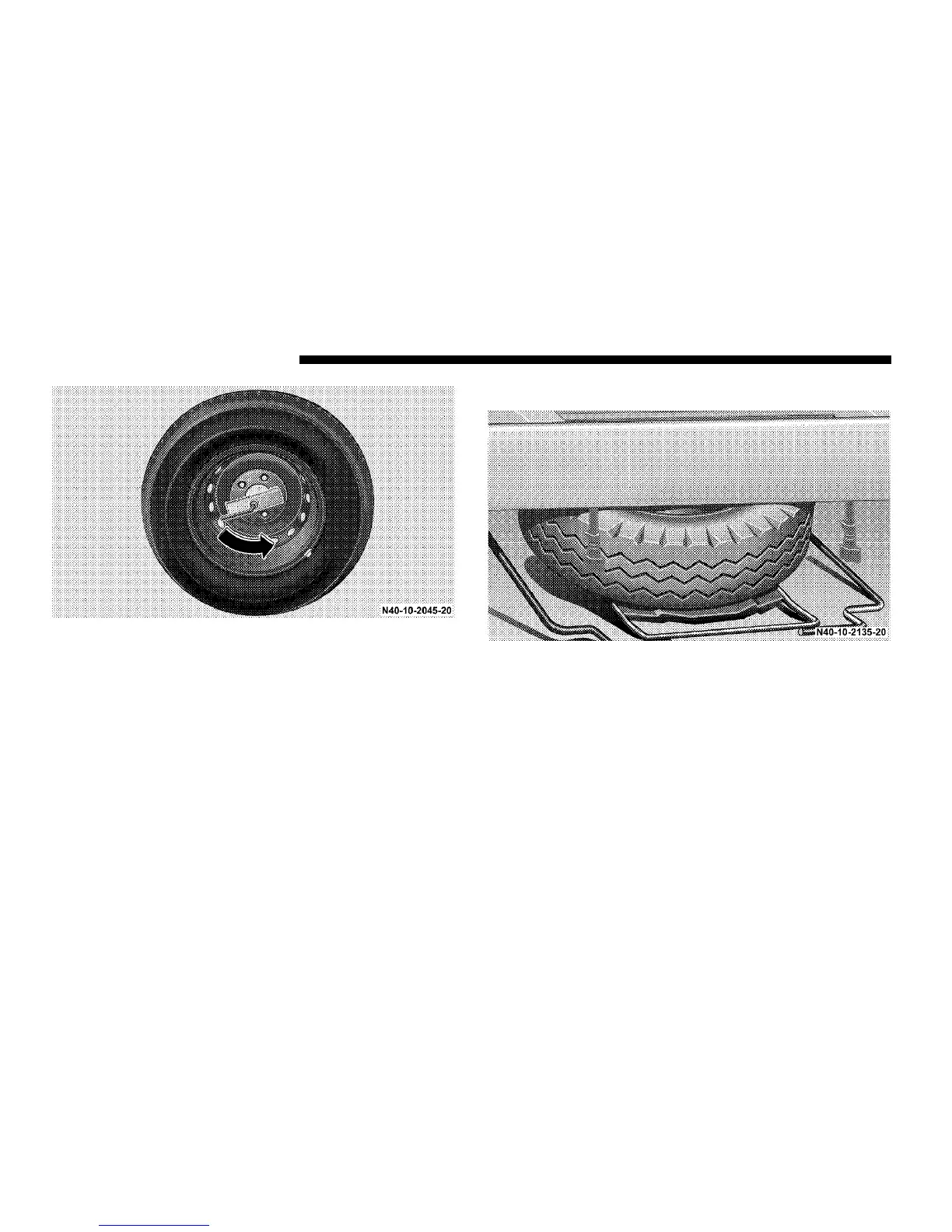

Spare Wheel Location for Chassis
1.
Loosen thumb nuts by hand and remove.
2.
Use wrench to loos
en fixing nut to the thread end.
3.
Lift spare wheel holde
r.
4.
Turn hooks to the side and lower spare wheel
holder. Remove the spare wheel.
