DOLD BI 5910 - Temporary Disabling of Function Keys; Assignment of Push Buttons to Outputs

74
74

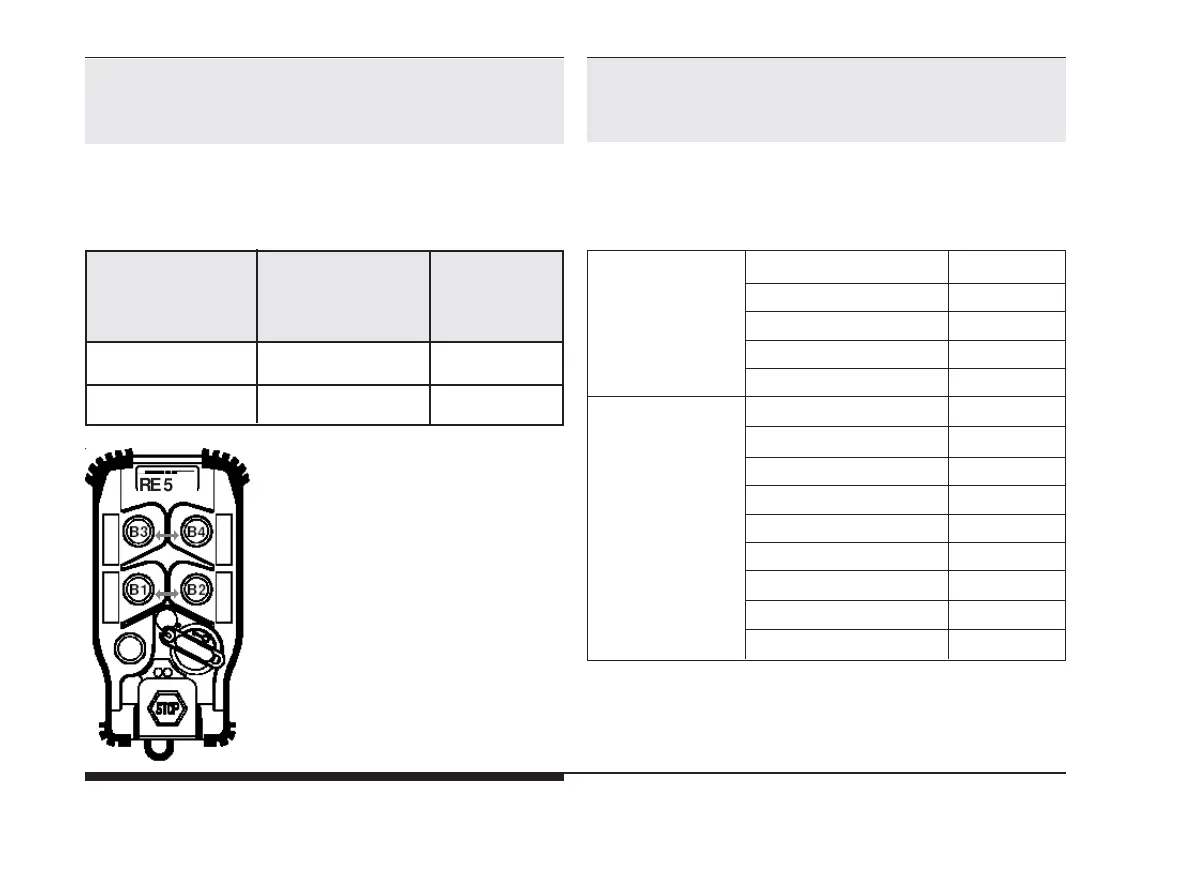

3.2 Temporary disabling
of function keys
By pressing both buttons
of a pair the function of
this 2 buttons is disabled.
(The corresponding
semiconductor outputs
are OFF).
Þ
Þ
Þ
Þ
RE 5910
The function key can be temporary disabled
in pairs.
1. button 2. button
Abbreviation
of of
pair pair
Button No. 1 Button No. 2 B1 - B2
Button No. 3 Button No. 4 B3 - B4
3.3 Assignment of push
buttons to outputs
The semiconductor outputs are assigned to
the push buttons as follows:
Button Output
Remote control B1 27
with 1-position B2 37
push buttons B3 57
B4 67
Button Outputs
B1 position 1 27
B1 position 2 27 + 47
B2 position 1 37
Remote control B2 position 2 37 + 47
with 2-position B3 position 1 57
push buttons B3 position 2 57 + 77
B4 position 1 67
B4 position 2 67 + 77
