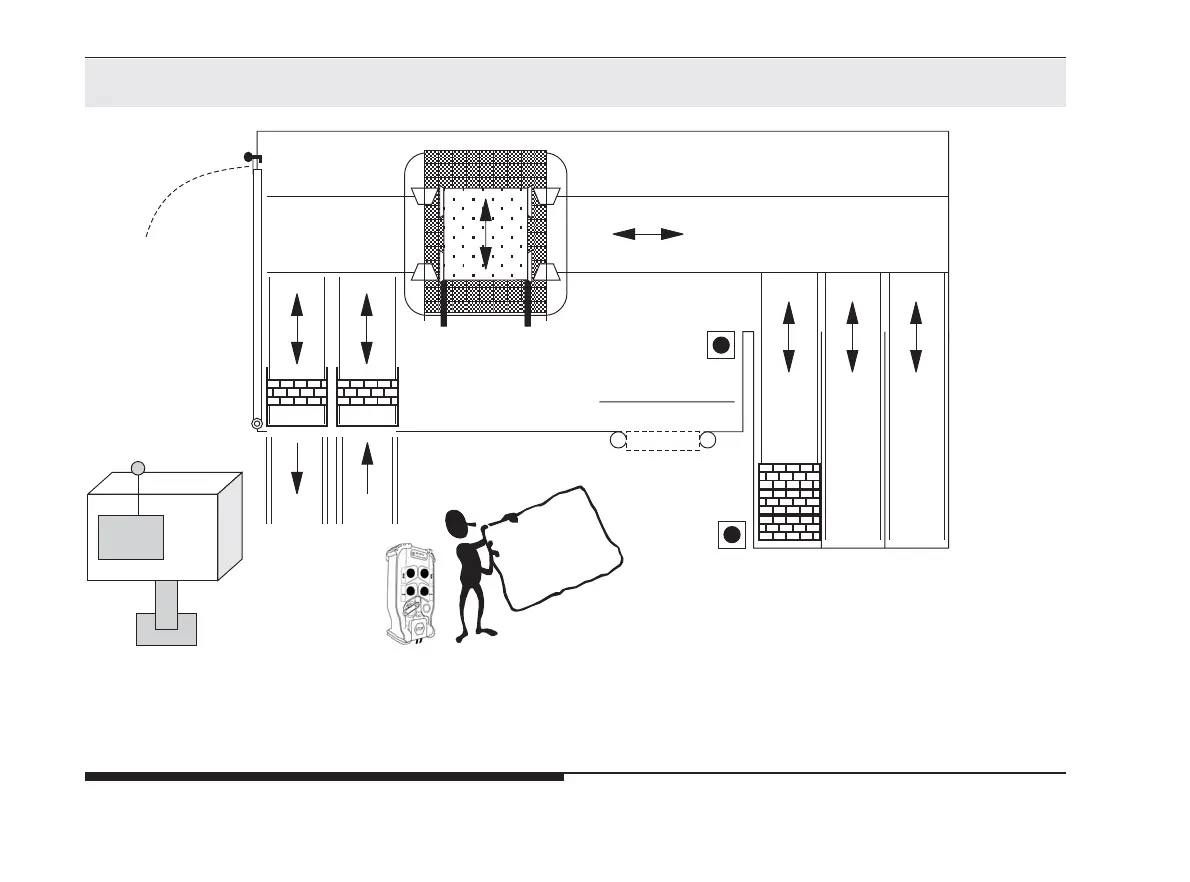

2.11 Operating modes 8 – 9 monitored zone access
The machine has an entry protected either by a light curtain or a safety gate. It may be
necessary that the operator has to enter the protected area while the machine is running
in order to carry out certain actions. The operator has to disable the protective device for
a short period while entering or leaving the protected area.
radio
receiver
control panel
person with
remote control
RE5910
down
up
key
access, when
machine stopped
conveyor
entry
light barrier, door
entry release
entry release
M9594
