Dolmar PB-252.4 - Designation of Parts

7

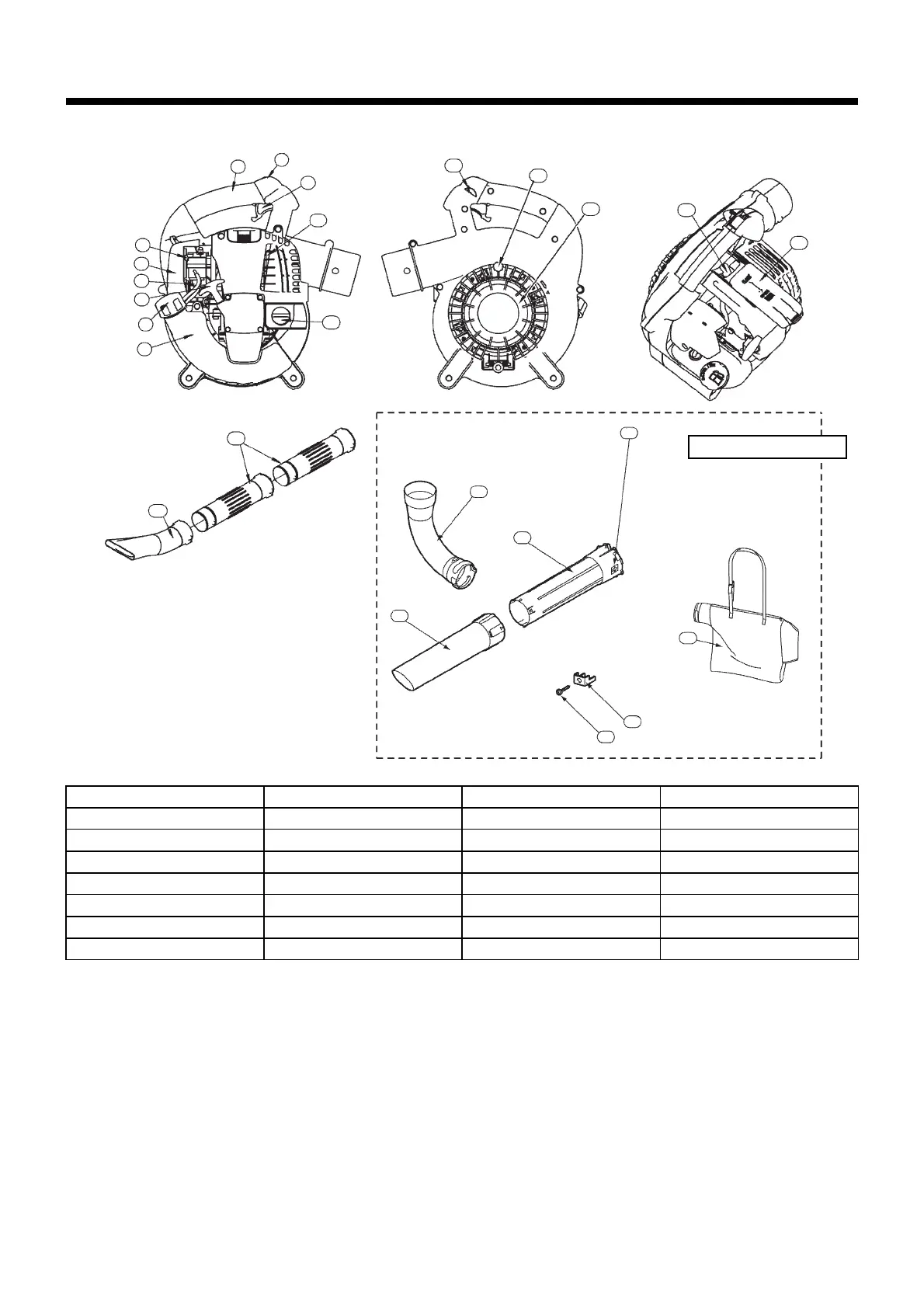

DESIGNATION OF PARTS
DESIGNATION OF PARTS DESIGNATION OF PARTS DESIGNATION OF PARTS DESIGNATION OF PARTS
1. Stop switch 8. Fuel Tank / Assist Handle 15. Plug Cover 22. Arrow Mark
2. Main Handle 9. Fuel Tank Cap 16. Spark Plug 23. Dust Bag
3. Trigger Lever 10. Muffler 17. Blower Tube 24. Bracket
4. Primer Pump 11. Oil Cap 18. Blower Nozzle 25. Screw
5. Air Cleaner Cover 12. Throttle lock button 19. Elbow
6. Choke Lever 13. Screw 20. Vacuum Pipe A
7. Starter Handle 14. Protector 21. Vacuum Pipe B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
24
22
20
21
23
25
Vacuum set (Optional)
