Assembly instructions
CAUTION: Before performing any work on the blower, always
switch off the moter and pull the spark plug connec-
tors off the spark plug.
Always wear protective gloves!
CAUTION: Start the blower only after having assembled it
completely.

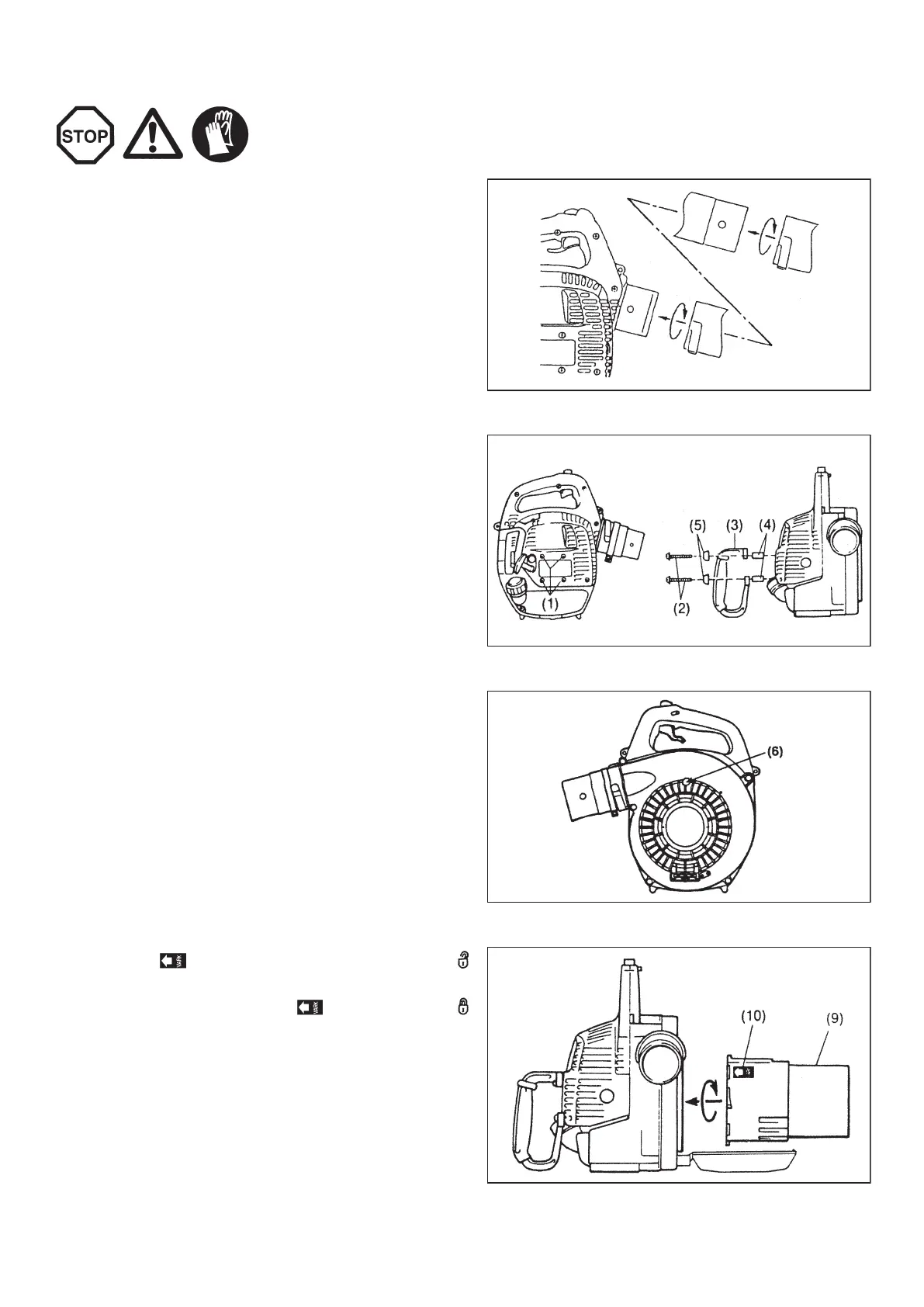

1. Assembly of blower pipes
1) Align grooves in the blower pipe with pegs on the blower housing and
slide the pipe onto housing.
2) Tum the blower pipe clockwise to lock it into place.
2. Assembly of vacuum attachment (Optional)
1) Installing Grip
(1) Remove the four screws (1).
(2) Install the screws (2), grip (3), spacers (4) and caps (5) provided
on the blower as shown in the gure.
(3) Tighten the screws (2) securely.
2) Installing Vacuum Pipe (nozzle)
(1) First, remove the screw (6).
(2) Align the
(10) indicated on the vacuum pipe (9) with the
indicated on the blower. Then insert the vacuum pipe (9) into the
blower.
(3) Tum the vacuum pipe (9) until the (10) is aligned with the
indicated on the blower to lock the vacuum pipe.
CAUTION: Hold the bottom of the vacuum pipe when turning the
vacuum pipe to install or remove it.
