06 STARTER
Tool
Replacing the starter cable
CAUTION: Injury hazard! Loosen and remove
screw 1 after the rewind spring tension has bein
released.
Remove the cable drum carefully.
CAUTION: Injury hazard! The return spring can
pop out!
Remove all pieces of the old cable.
Thread a new cable (108.164.020, dia 3.5 mm (1/

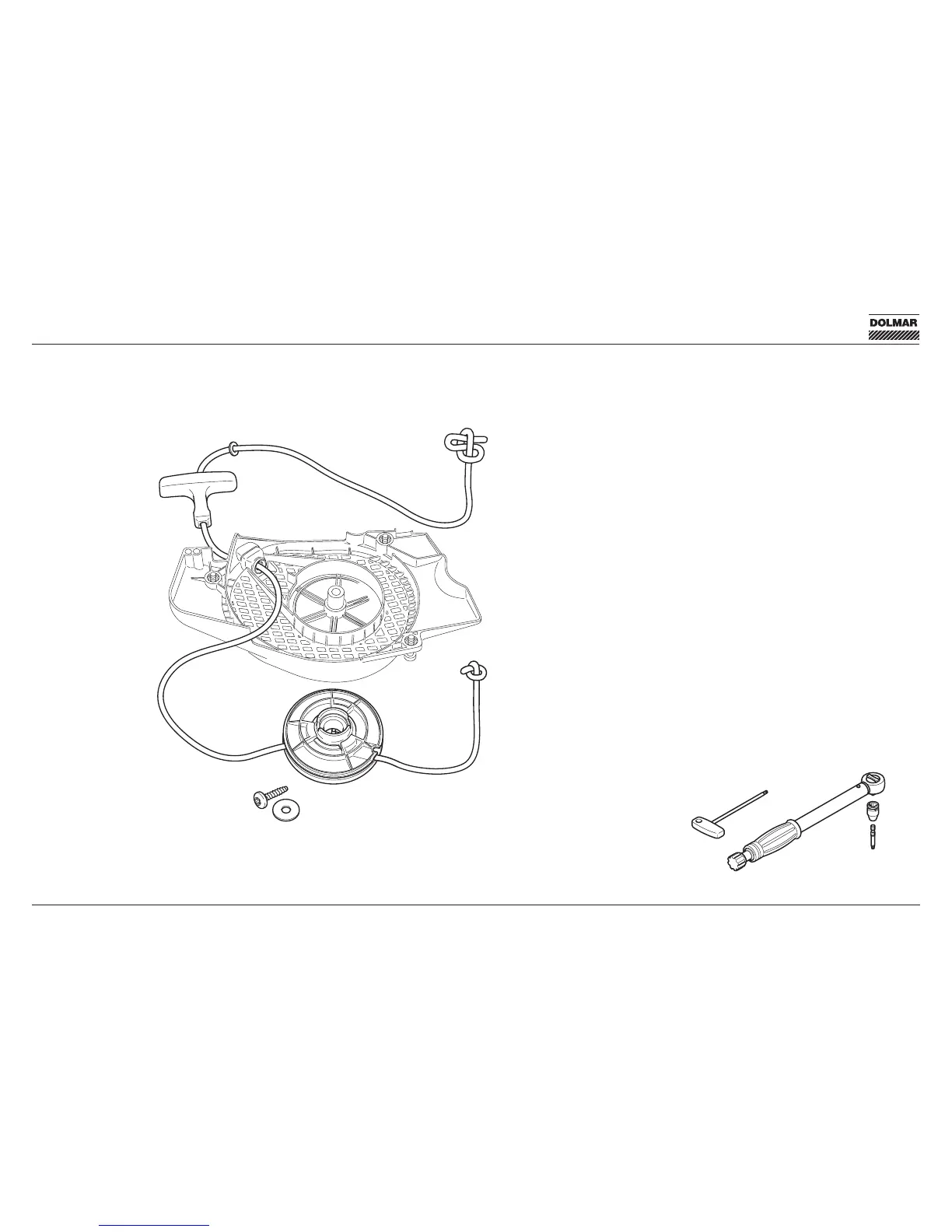

8”), length 980 mm (39”)) as shown in the diagram
(don’t forget washer 2) and knot both ends.
Put the cable drum on and turn it slgihtly until the
return spring catches.
Screw in screw 1 with washer and tighten.
NOTE: With the starter cable pulled out all the way,
it must still be possible to turn the cable drum at least
another quarter turn against the spring force.
CAUTION: Injury hazard! Secure the starter hand-
le when it is pulled out. It will be pulled back very
quickly if the cable drum is inadvertently
released.
