35Repair Manual PS-6400/PS-7300/PS-7900
1
2
10 TANK

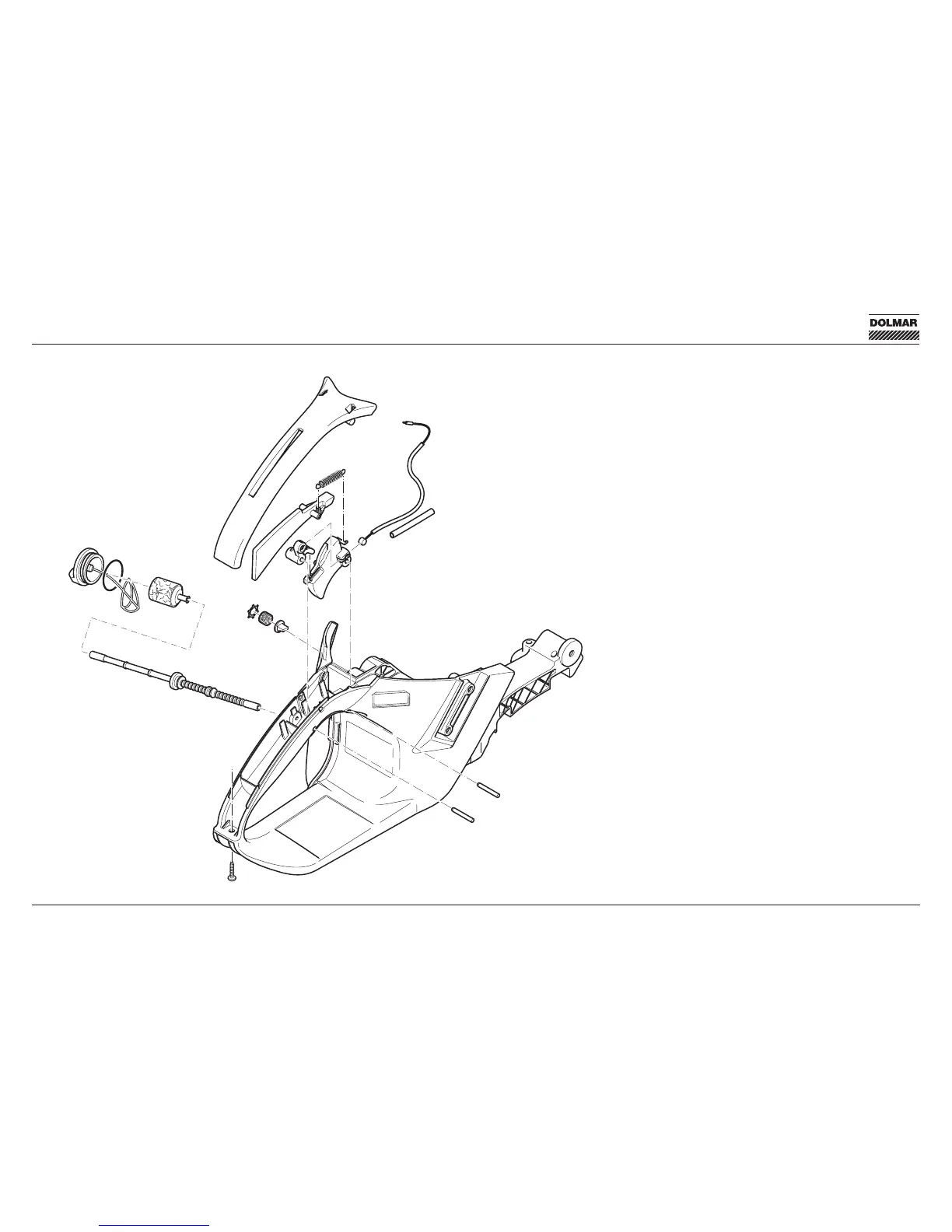

Fuel tank
Capacity 0.75 liter
Replace the fuel filter 1 every 3 months.
Removal:
Disassambly the Starter assy, see page 20.
Remove tubular handle and vibration damper.
Remove carburetor adjustment guide.
Disengage Bowden cable at carburetor.
Remove fuel line from carburetor.
Remove short-circuit switch and pull off wire.
Detach ground wire from housing.
At machines with heated handles, detach cable from
heated handle switch.
Installation:
Push fuel line through carburetor base.
Position complete forward clutch-side damper.
Insert rear clutch-side and magneto-side damper
bushings, start screws.
Tighten bushings.
Tighten screws.
Connect short-circuit wire with switch.
Engage throttle Bowden cable.
Connect fuel line to carburetor.
Insert carburetor adjustment guide.
The fuel tank air valve 2 acts only as ventilation.
NOTE: Fuel tank air valve 2 is supplied as a
complete unit. To replace it, it is necessary to
remove the tank.
