Dolmar PS-6400 - Vibration Damper; Tubular Handle

32Repair Manual PS-6400/PS-7300/PS-7900
1 (5,0 Nm ± 0,5)
2

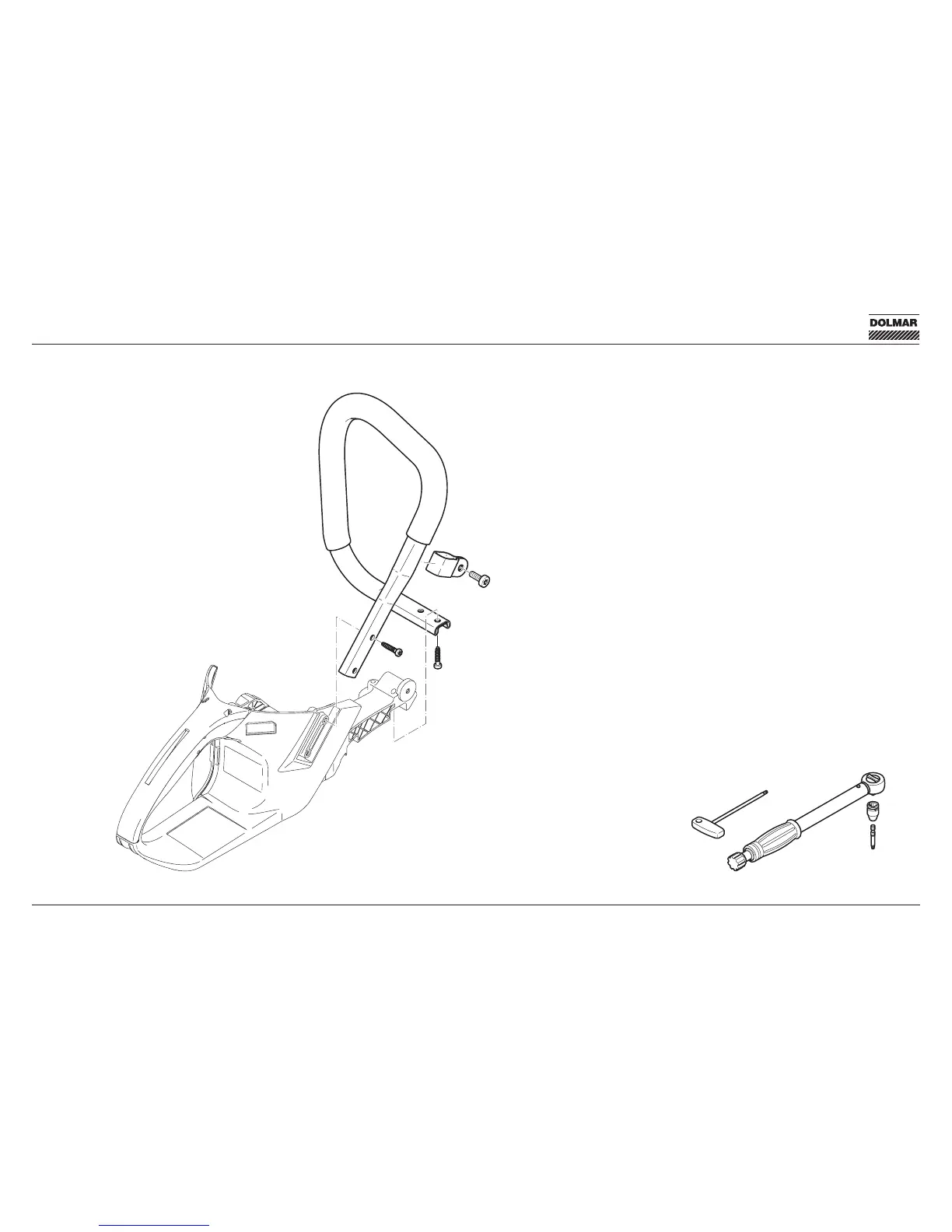

09 VIBRATION DAMPER / TUBULAR HANDLE
Handles
Forward tubular handle of aluminum tubing with
synthetic sleeve.
Assembly with 4 Torx screws 1 (5.5 x 20).
Clamp is fastened to the tubular handle with a Torx
screw 2 (6 x 14).
Clamp is asymetric, fixing Point of the clamp must
face off the cylinder.
Tool
(5.0 Nm ± 0.5)
