23Repair Manual PS-6400/PS-7300/PS-7900
1
2
3
10
11
5
6
7
9
8
8
8
4
10 mm

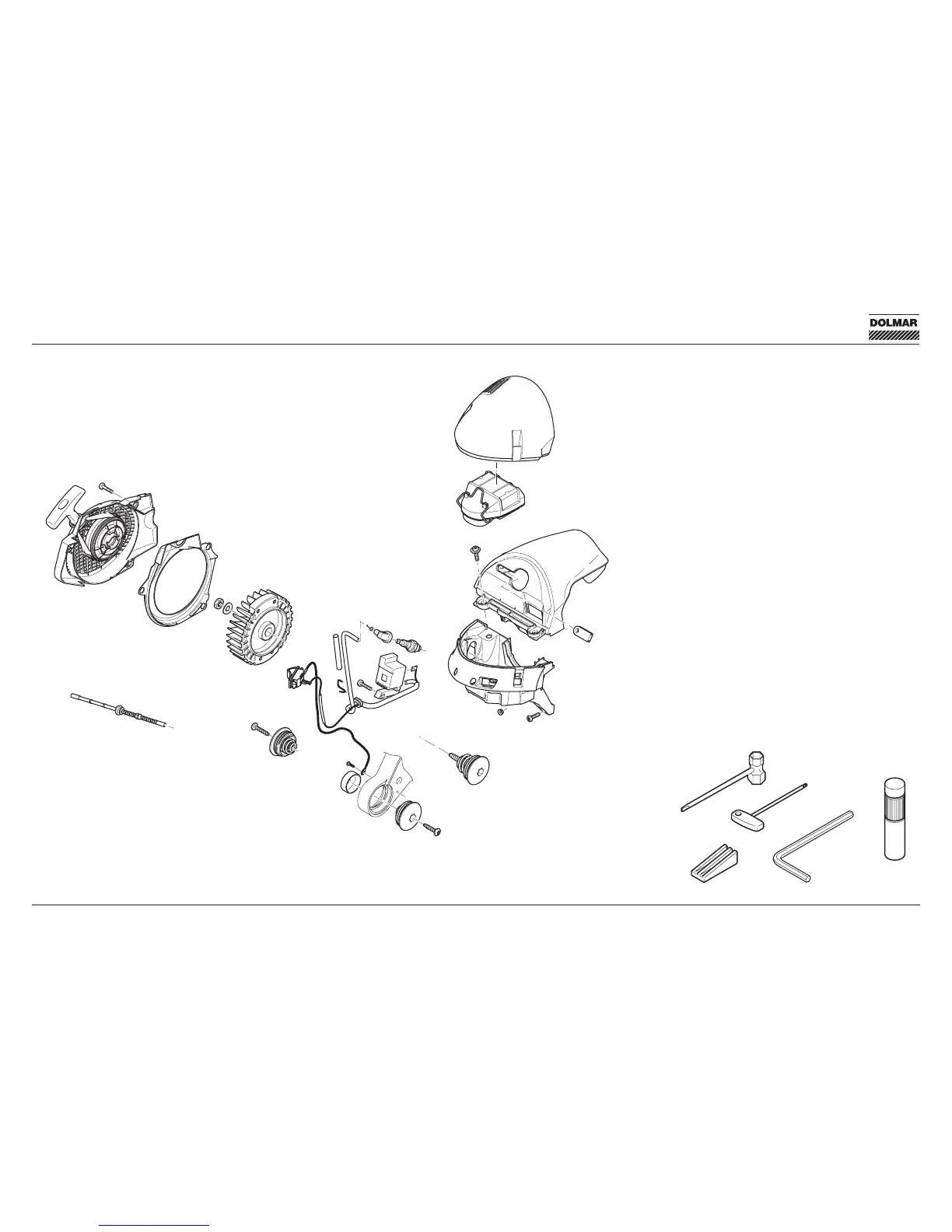

07 IGNITION SYSTEM
Inspecting the ignition system
Disengage the chain brake. Remove screw and
bushing (items 1 and 2, Page 14).
Remove the tubular handle.
Remove filter hood 1 and air filter 2.
Remove protective hood 3 (push spark plug socket
with wire grommet through the opening).
Unscrew the spark plug 7.
Remove fan housing 4 and air duct 5.
Remove the flywheel 6 with the disassembly mandrel
(944.500.880), see Page 26.
Unscrew the vibration damper 8 (3 pieces, see Page
33).
Separate the tank and engine unit. To do this pull
the wire terminals off the short-circuit switch and pull
the fuel line 9 from the carburetor and then out of
the carburetor base 10.
Loose the bowden cable with a needle nose plier.
Unscrew screws 11. The carburetor base can now
be lifted slightly so that the wires can be pulled
through.
Tool
