03 CHAIN BRAKE
Chain brake
The chain brake stops the chain within 0.1 seconds
in the event of kickback.

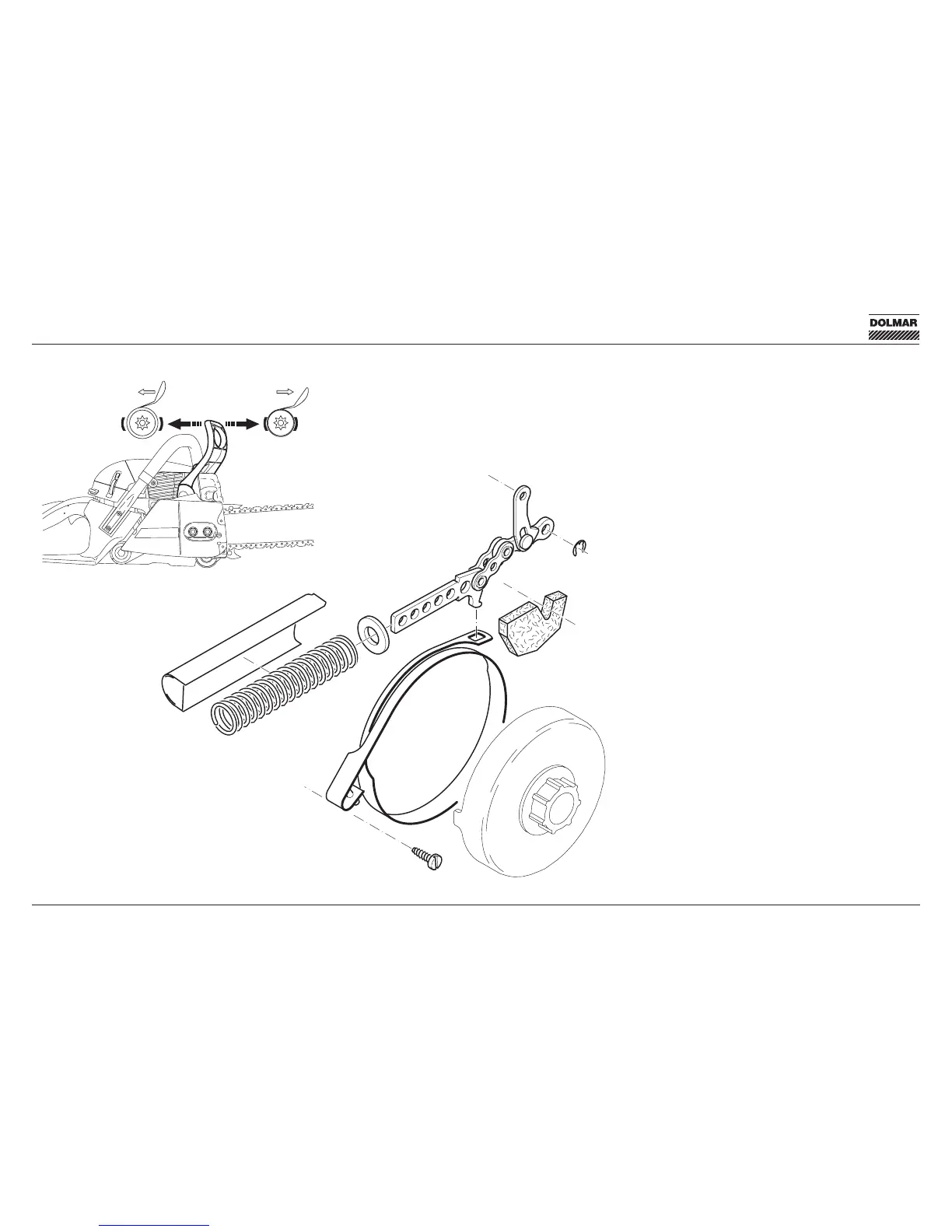

The brake band 2 encircles the clutch drum 380°.
A spring 1 pulls the brake band around the clutch
drum.
