34Repair Manual PS-6400/PS-7300/PS-7900
5
1
(4,0 Nm ±0,5)
3
2
4
10 TANK

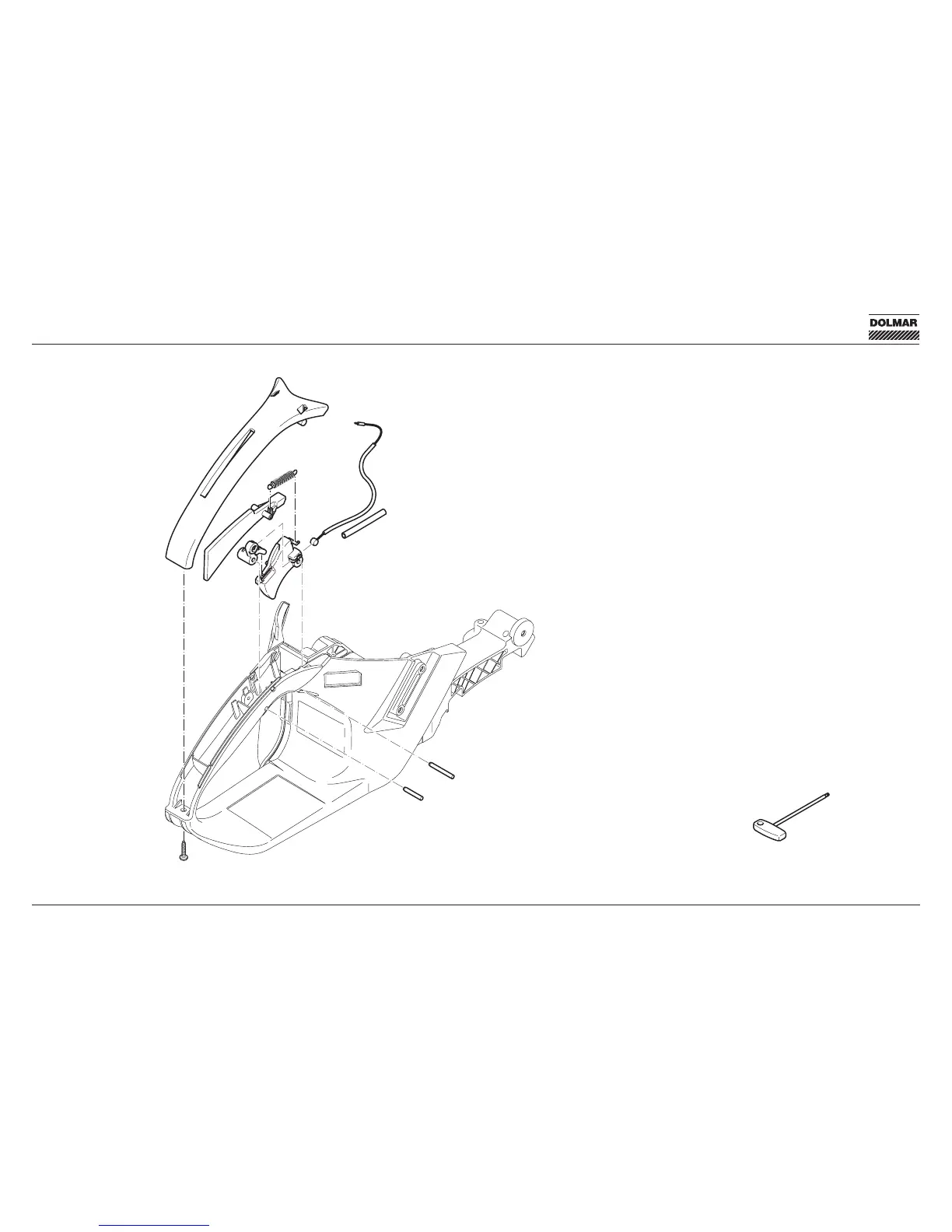

Grip mechanism
The throttle trigger is linked to the carburetor by a
Bowden cable.
The grip shell is attached to the tank with a Torx screw
1 (4 x 20 mm).
Disengage the throttle lock 2 and spring 3.
Check for ease of motion and functioning of the safety
throttle lock spring 3.
To replace the throttle trigger and throttle lockon lever
drive out the cylinder pins 4 (3 x 24 mm) and 5 (3 x
38 mm) with a mandrel (ø 2 mm).
(4.0 Nm ± 0.5)
