QUICKSTEP INTERFACE
Home Screen
When starting the printer, the following Home screen is displayed.
Status Icons: Displays current status of printer, e.g:
Laser active
(Laser is busy - laser emission!)
USB device connected
(USB device connected to controller or
TouchPanel)
Dongle connected
(Pharma or Service dongle connected)
Status Bar: Displays printer and alert status. If more than one
alert is present, the highest priority alert is
displayed.
Start/Stop Button: Enables marking
If the laser is switched off, it must be switched on
before marking can take place.
Stops marking
Triggers a print
Restarts the Printer

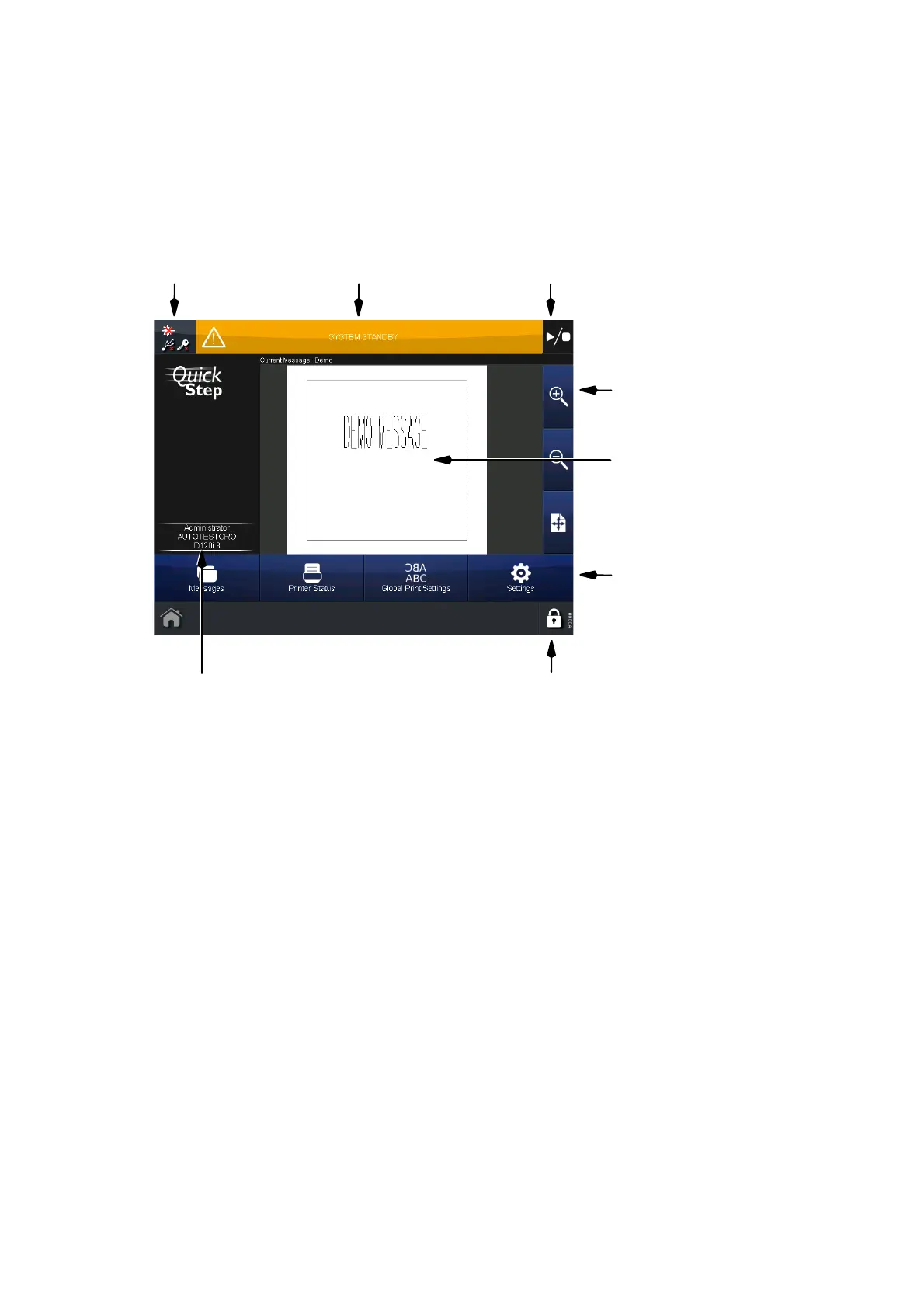

Status Icons Status Bar Start/Stop Button
Lock
Main Menu
Selection
Buttons
Live
Message
Preview
Zoom
Toolbar
Printer Name
To Next Page
