Domino F Series

To Next Page

To Previous Page

INSTALLATION INSTRUCTIONS

EPT031055 Issue 2 September 2017 2-43

Timing

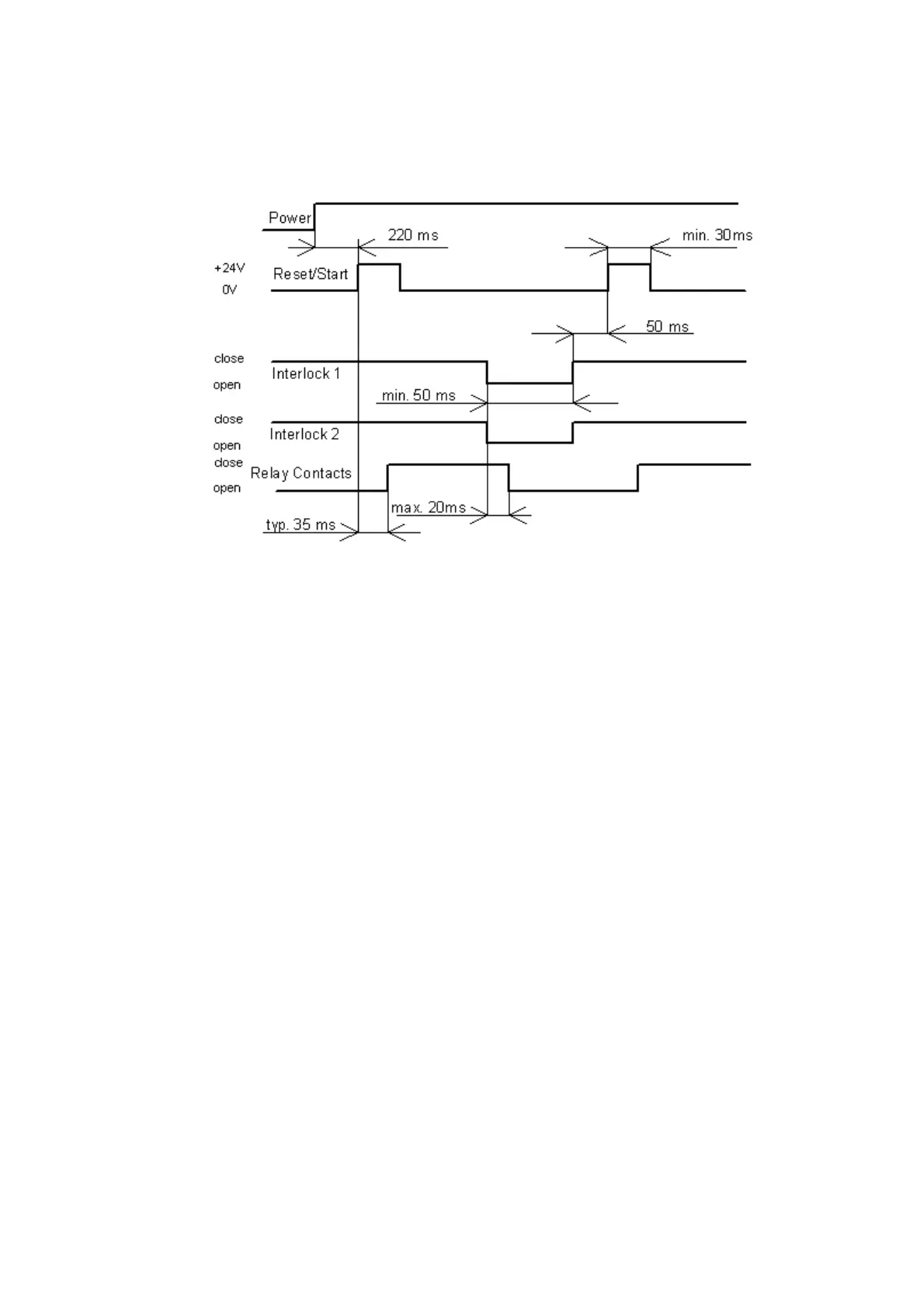

The next picture shows the general E-Stop Relay timing:
