TECHNICAL REFERENCE
EPT009665 Issue 2 May 2015 4-13
TOUCHPANEL
Note: The TouchPanel can be supplied as an optional user interface.
Note: The TouchPanel may be powered via external power via the
mains in connector or via the ethernet connector when
connected to a BCP7 controller. The mains switch only switches
the power of the TouchPanel when external power is connected
to the TouchPanel.
Technical Specifications
Display 10.4 inch SVGA full colour touch screen
Operating System Windows CE 6
Toushscreen Dimensions (mm) 307(W) x 232(H) x 75(D)
Touchpanel IP Rating Designed to IP55
Mounting Accessories Full range of brackets
Temperature 5 - 45 degrees Celsius
Humidity 10 - 90% none-condensing
Electrical Input AC: 100 -240VAC, 0,7A ,50/60Hz
Input DC: 24Vdc, 20W over Ethernet
Weight 2.85 Kg
Mounting VESA 75 Mounting standard
Ethernet Cable 5 metre and 10 metre available

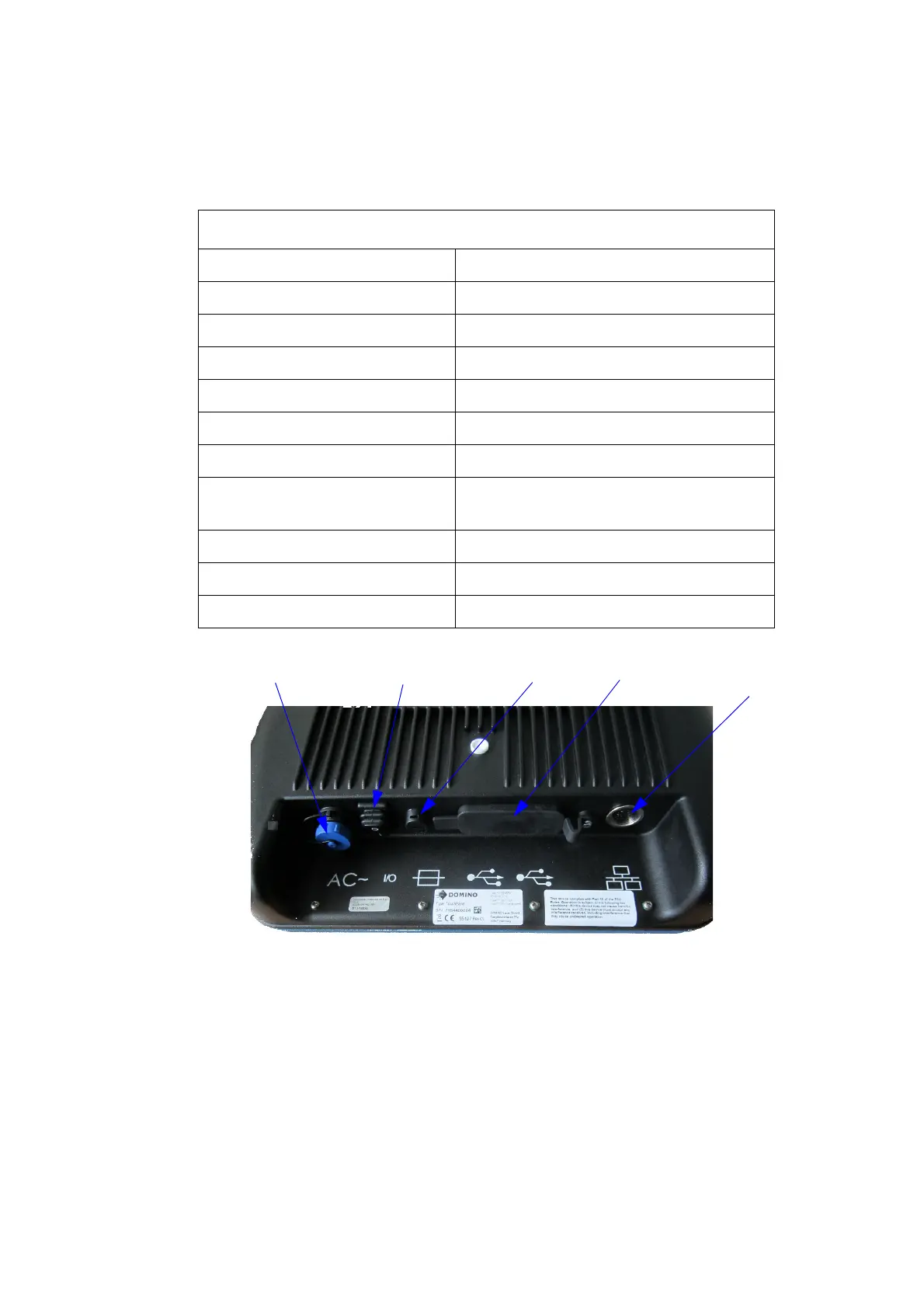

TouchPanel rear view
USB ports
Mains Switch
Mains Socket
Mains Fuse
Ethernet
Connection
