PSS 5000 – Hardware Configuration Guide
Selecting the CPU Board and Interface Modules

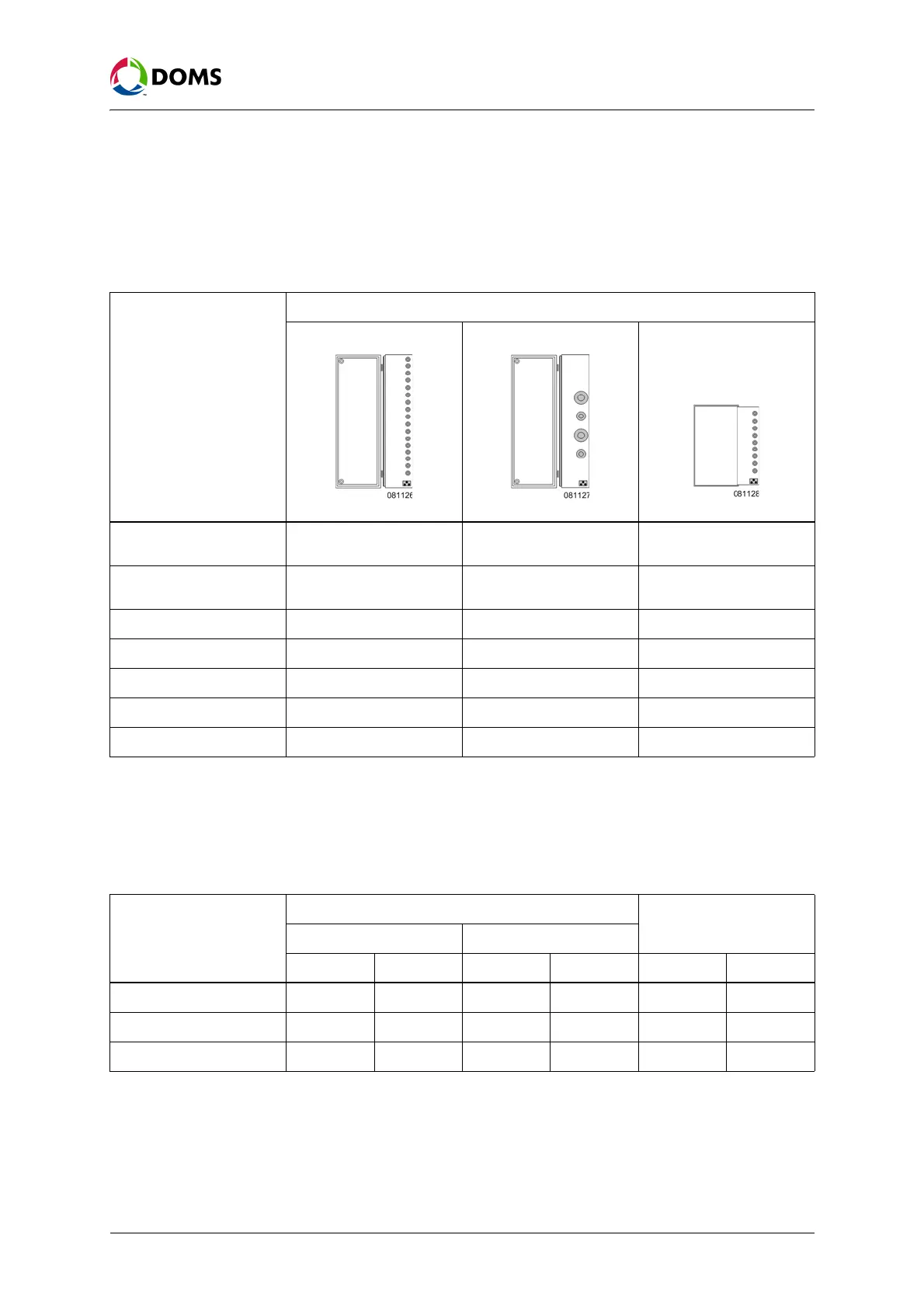

4.2 PSS 5000 Cabinets
PSS 5000 cabinet types
and specifications
The product specifications for the PSS 5000 cabinet are presented in the table
below:
Note: The weights given are for the basic cabinet with a power supply and
CPU board (HIMs are not included).
4.3 System Versions
PSS 5000 system
versions
The table below shows the CPU Board version, cabinet version and power
supply version combinations. Each combination has its own Doms stock num-
ber:
Cabinet Version
Standard - cable Standard - conduit Compact
Dimensions:
(HxWxD)
600x200x124 mm
(23.5 x 7.9 x 4.9")
600x200x124 mm
(23.5 x 7.9 x 4.9")
363x200x 100 mm
(14.3 x 7.9 x 3.9")
Max. number of single-
width modules:
14 14 6
Material: Metal Metal Metal
Weight: 8kg (17.6 lbs) 8kg (17.6 lbs) 5kg (11 lbs)
CE + UL Approved: Yes Yes Yes
Hinged door: Yes Yes Yes
No. of grommets: 17 (cables) 4 (conduits) 9 (cables)
CPB Type
Standard Cabinet
Compact cabinet
Cable Conduit
230V 120V 230V 120V 120V 230V
CPB505-2 – – – 144752 144740 144610
CPB509 140925 – – 140232 – –
CPB539 145049 145282 ––––
To Next Page
