PSS5000/INGU/805799/09
17 of 27
PSS 5000
–
Installation Guide
2

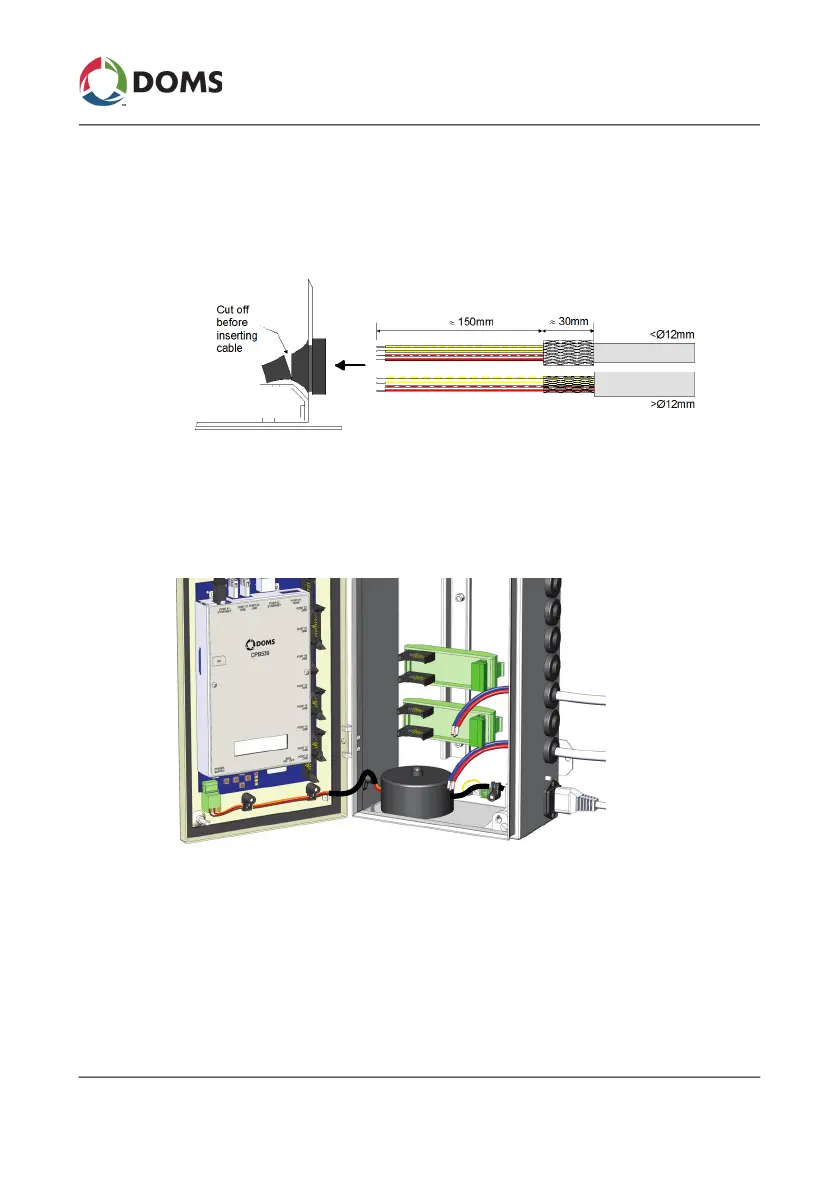

Installing the PSS 5000 Forecourt Controller
1.
Prepare
the c
ommunication c
ables
by rem
oving the
insulation a
s
illus
-
trated below.
Note:
It is necessary to cut rubber grommet for cables > Ø12
mm.
2.
Refer
to
t
he
P
rotocol
to
Port
Assignment
web
se
rvice
page
and
insert
each
communication
cable
t
hrough
the
r
ubber
grommet
o
pposite
the
relevant HIM.
Illustrated with a Standard cabinet
16
18
