2 Installing the PSS 5000 Forecourt Controller
3. Secure each cable to the cabinet using the cable clamp provided and
connect the cable to the HIM.
4. Make sure that the electrical connections meet the standards required by
the relevant national regulations. And to minimize the risk of Ground
Potential Differences, whenever possible, ensure that all the devices on
the site have a Common Ground Reference, or alternatively, a Protec-
tive Earth can be implemented.
Note: For more information about general installation recommenda-
tions, refer to the DOMS Forecourt Controller System, Installa-
tion Recommendations (806070/--).
Note: For more information about the cable connections to the individ-
ual HIMs, refer to the relevant installation drawings for the mod-
ules.
You are now ready to validate that all the forecourt devices are connected
correctly and communicating with the PSS 5000.

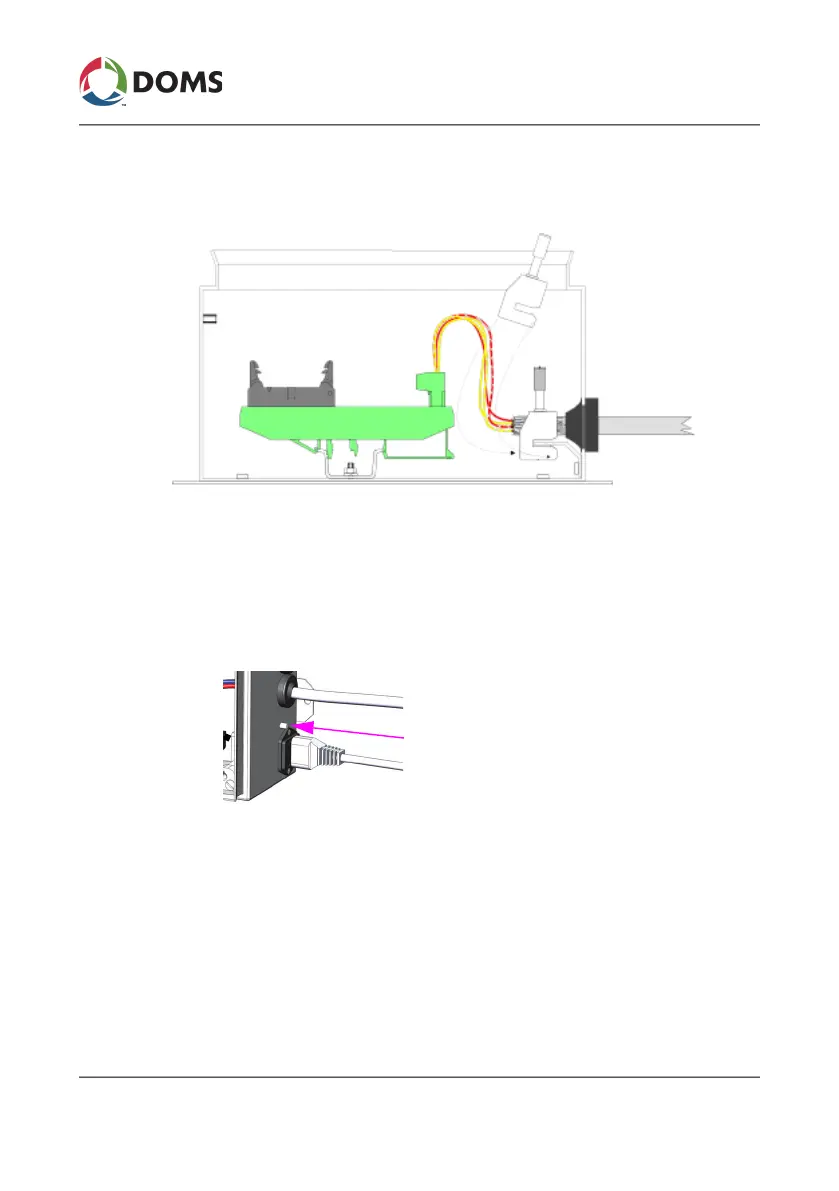

Illustrated with a Standard cabinet
Protective Earth connection stud
To Next Page
