Evolution FDX
10
L
≤
6/5 mts.

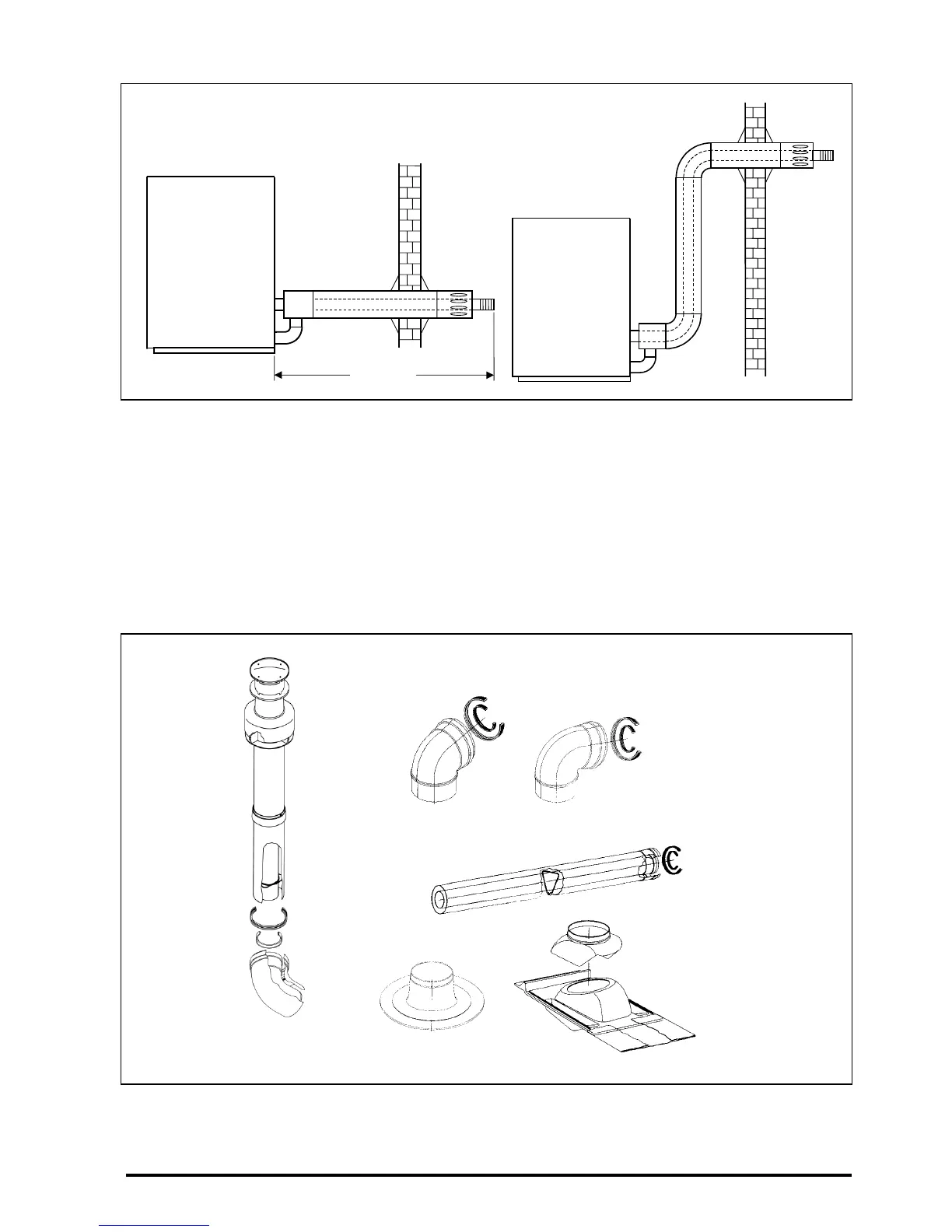

4.4 Combustion products exhaustion and air intake vertically-arranged coaxial device
ø80-125 (type C
33
)
The combustion products exhaustion and air intake can be carried out through concentric
pipes of Ø80 mm. for the combustion products exhaustion and Ø125 mm. for the air intake,
by means of the vertically-arranged outlet Kit Ø80-125 code CGAS000231.
The maximum vertical length counted from the boiler, including the kit end, is; 7 metres for
model EV 30 FDX; and 6 metres for model EV 40 FDX. Each elbow of 90°, or two of 45°,
reduces the available length by 0.6 metres.
Vertically outlet
∅
80/125
Cód . CGAS000 231
Bl ack t il e
∅
80/125
Cód . CGAS000 074
45º elbow
