DOMUSA EVOLUTION EV FDX - Working Diagram; Oil Flow Versus Nozzle and Pump Pressure; Electric Diagrams

27

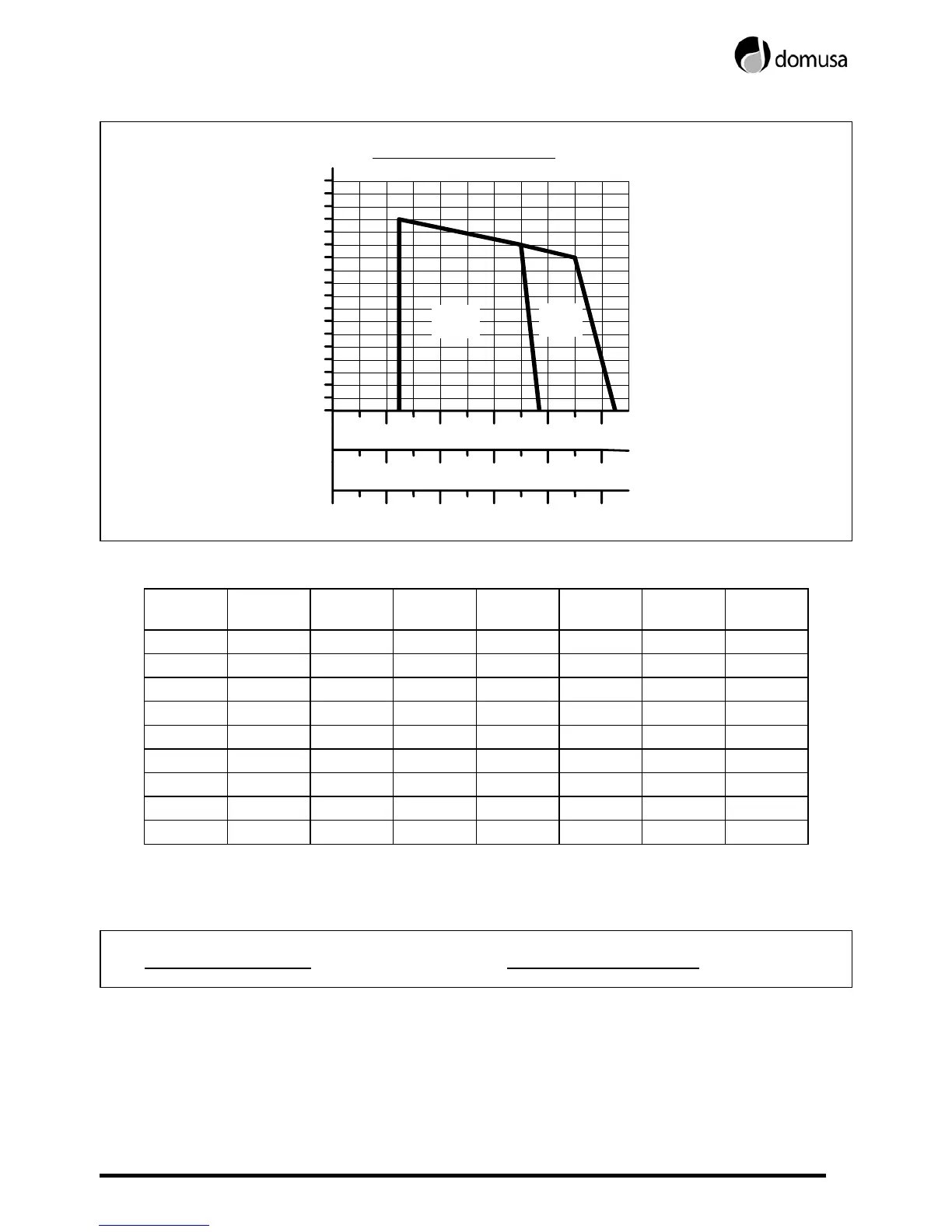

22.13 Working diagram
5
10
15
1
2345
Kg/h
10200
20400 30600 40800 51000
Kcal/h
11.8 23.72 47.4435.58 59.3 Kw
mmH
2
O
OVERPRESSURE / FLOW
D-3
D-4
22.14 Oil flow versus nozzle and pump pressure
GPH 9 Atm.
Kg/h
10 Atm.
Kg/h
11 Atm.
Kg/h
12 Atm.
Kg/h
13 Atm.
Kg/h
14 Atm.
Kg/h
15 Atm.
Kg/h
0,40 1,45 1,55 1,60 1,67 1,75 1,80 1,87
0,50 1,80 1,90 2,00 2,10 2,20 2,27 2,33
0,55 2,00 2,10 2,20 2,30 2,40 2,50 2,60
0,60 2,20 2,30 2,40 2,50 2,60 2,70 2,80
0,65 2,35 2,50 2,60 2,70 2,80 2,90 3,05
0,75 2,70 2,85 3,00 3,15 3,25 3,40 3,50
0,85 3,10 3,25 3,40 3,55 3,70 3,80 4,00
1,00 3,60 3,80 4,00 4,20 4,35 4,50 4,70
1,10 4,00 4,20 4,40 4,60 4,80 5,00 5,10
22.15 Electric diagrams
WITHOUT CONNECTOR
SATRONIC TF 830.3 LANDIS & GYR LOA 24
