3

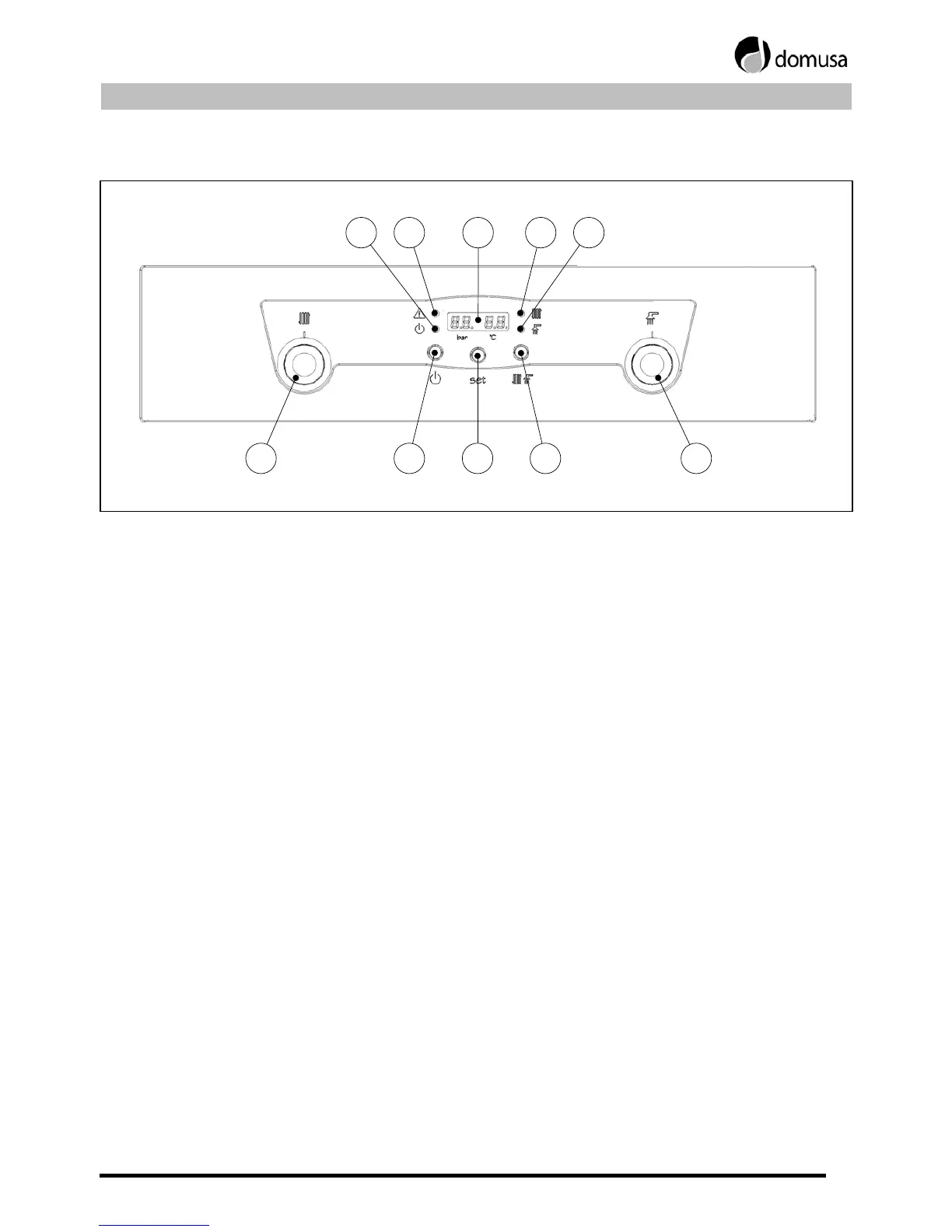

2 CONTROL ELEMENTS
2824 26 2725
2019 232221
19. ON/OFF neon light:
When it is light on, it indicates that the boiler
is switch on.
20. Alarm warning neon light:
When it is light intermittent, it indicates that
any alarm or blockout of boiler operation is
produced.
21. Digital display:
It is the main display of operation of the
boiler. It shows the different temperatures of
the boiler, installation pressure and the
different alarm codes.
22. Heating service neon light:
When it is light on, it indicates that it is
selected the heating service, the boiler is in
winter mode.
23. DHW service neon light:
When it is light on, it indicates that it is
selected the service of Domestic Hot Water.
When the boiler only has this neon lighted
on, it will be in summer mode.
24. Boiler temperature selector:
We will be able to select, in any moment, the
set point of boiler temperature. It is a
removable turning button. For its usage,
push on it and it will be extracted, pushing
again, it will hide.
25. Switch on button:
Pressing this button will switch on and
shutdown the boiler.
26. SET button:
Pressing this button, you will accese to
visualize the different temperatures of the
boiler, in the digital display.
27. Services selection button:
We will be able to select the modes of
operation of the boiler; service of heating +
DHW (winter mode); or service only of DHW
(summer mode).
28. DHW temperature selector:
We will be able to select, in any moment, the
set point of DHW temperature. It is a
removable turning button. For its usage,
push on it and it will be extracted, pushing
again, it will hide.
