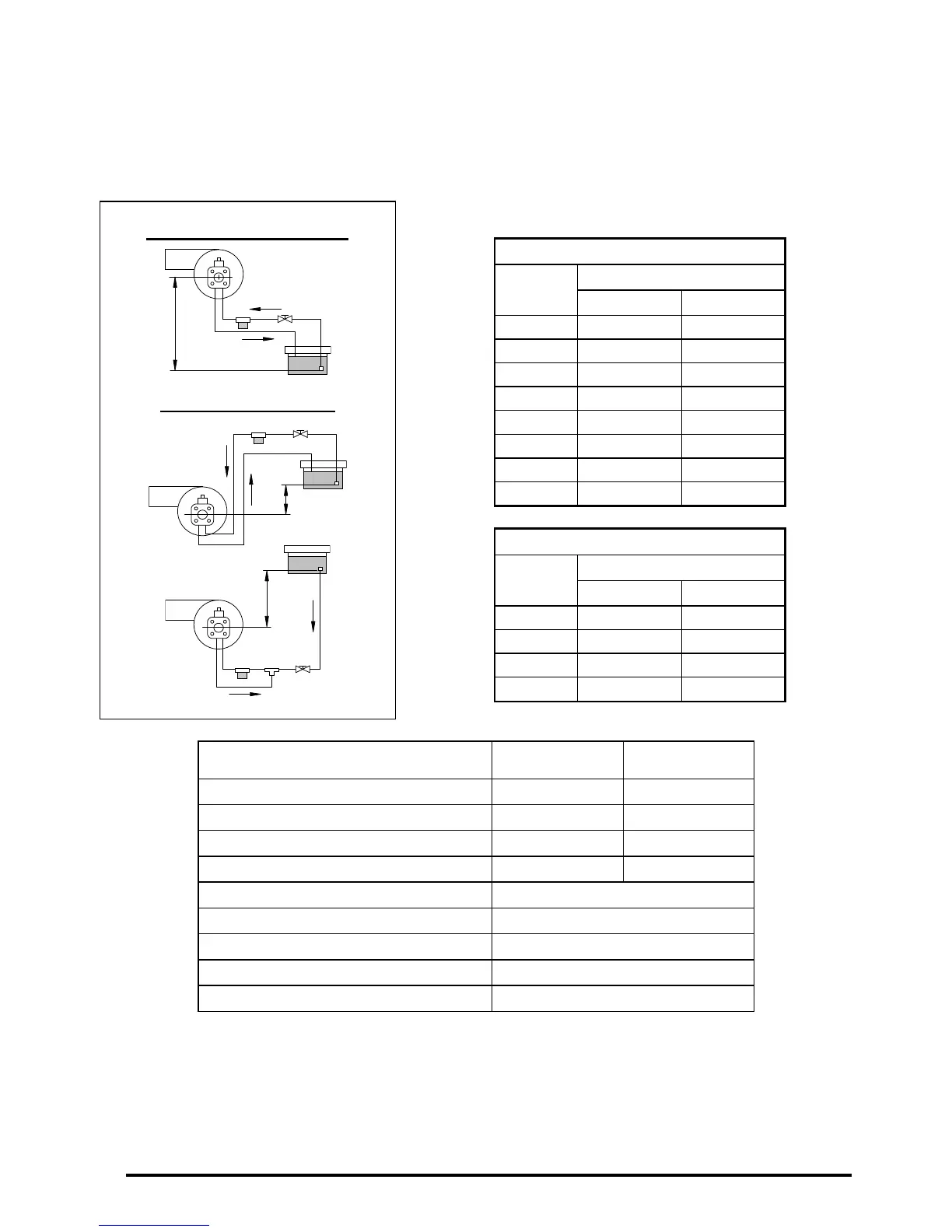

22.11 Oil installation diagrams
These diagrams and charts belong to oil line installations without reductions and with a
perfect hydraulic sealed. It is highly recommended to use copper pipes. Depression of
maximum 0,4 bar (30 cmHg) must not be exceeded.
In aspiration installation
H Pipes length
(m)
∅int 8 mm. ∅int 10 mm.
0,0 25 60
0,5 21 50
1,0 18 44
1,5 15 38
2,0 12 26
2,5 10 26
3,0 8 20
3,5 6 16
In charge installation
H Pipes length
(m)
∅int 8 mm. ∅int 10 mm.
0,5 10 20
1,0 20 40
1,5 40 80
2,0 60 100
22.12 Technical data
MODEL D-3 D-4
Minimum heat outlet Kg/h
1.5 2.3
Maximum heat outlet Kg/h
3 4.65
Minimum heat outlet kW
17.7 27.2
Maximum heat outlet kW
35.5 55.2
Motor power to 2800 r.p.m. W
90-110
Operating type
ON/OFF
Electric power
220 V - 50 Hz
Weight Kg
12.5
Preheater
Yes
In aspiration installation
H
In charge installation
H
H
