Door Controls DC One - Page 16

Installation Manual
DC One V3
321 VZ County Road 4500 · Ben Wheeler, TX 75754 · Phone: 800.437.3667 · Fax: 800.356.8858 · DoorControlsUSA.com
16
Rev050819

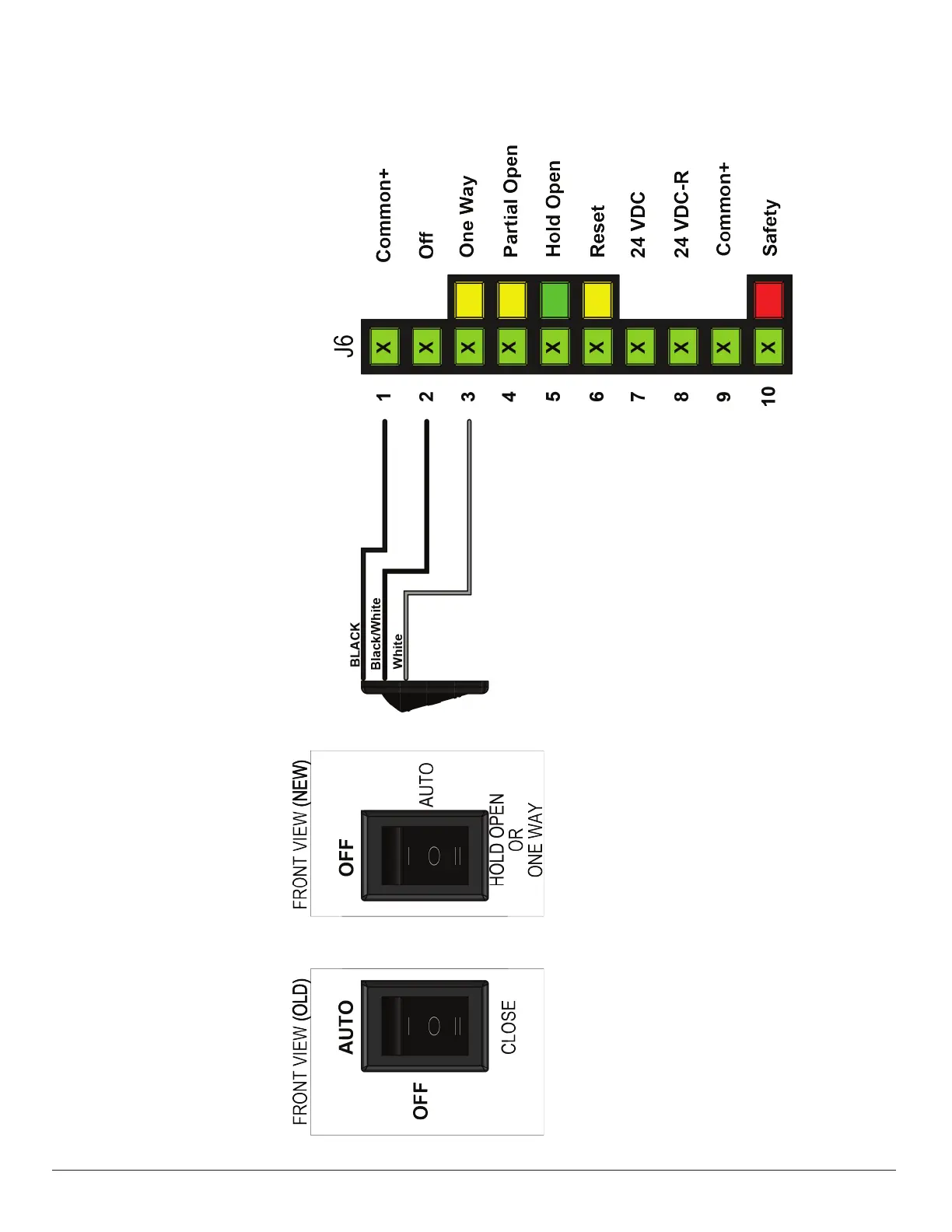

C5670 - Horton 3 Position Rocker Switch Will work but diodes will have to be cut and the nameplate will have to be changed. The switch will basically be used the same as an On/O󰀨 switch, O󰀨/Auto/Hold Open, or O󰀨/Auto/One Way. See below.
