Doosan D55C-5 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly 10

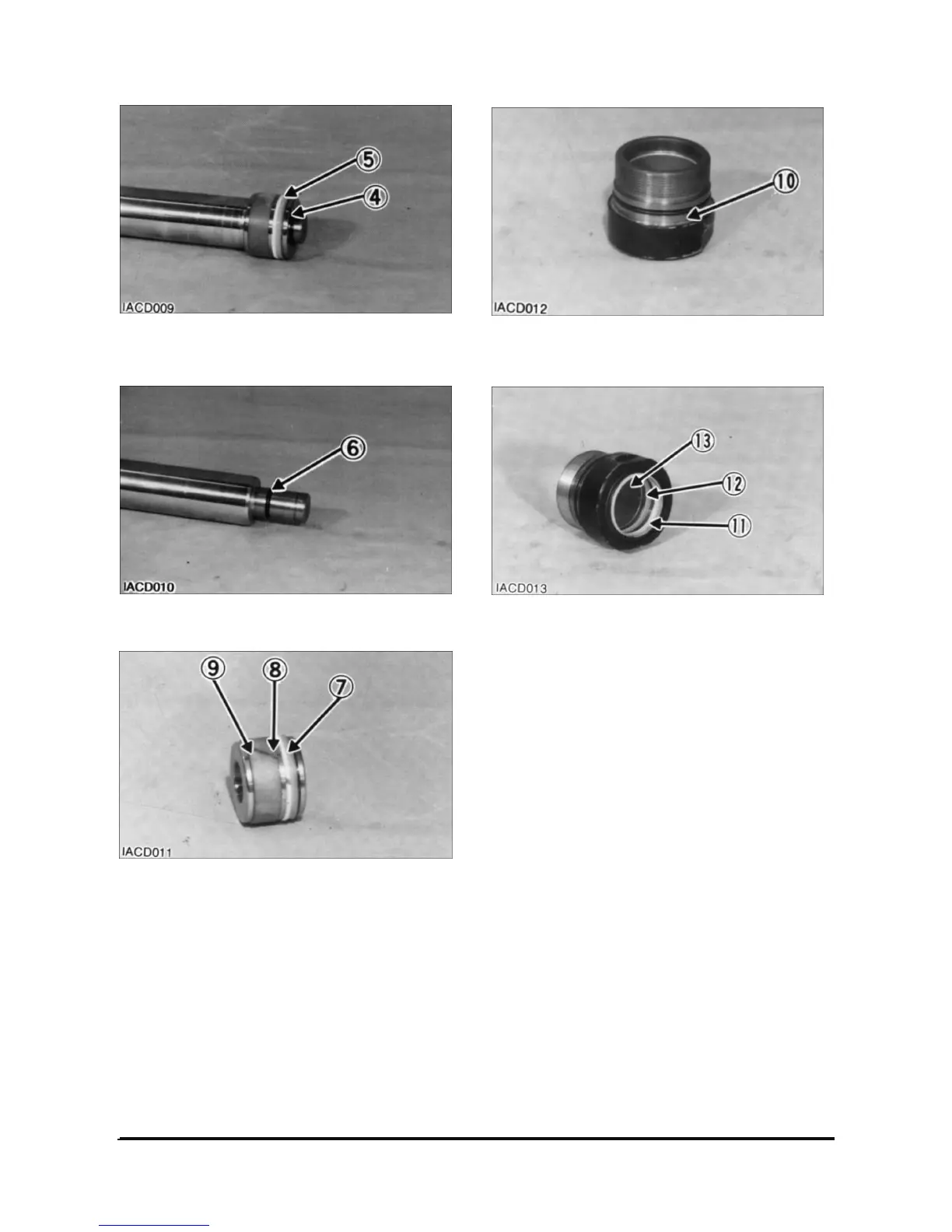

4. Remove retaining ring (4) and piston (5) from the
cylinder rod.
5. Remove O-ring seal (6) from the cylinder rod.
6. Remove O-ring seal (7), back-up ring (8) and seal
(9) from the piston.
7. Remove O-ring seal (10) from the head assembly.
8. Remove wiper seal (11), seal (12) and bush (13)
from the head assembly.

Doosan D55C-5 Specifications

General

Brand	Doosan
Model	D55C-5
Category	Engine
Language	English
