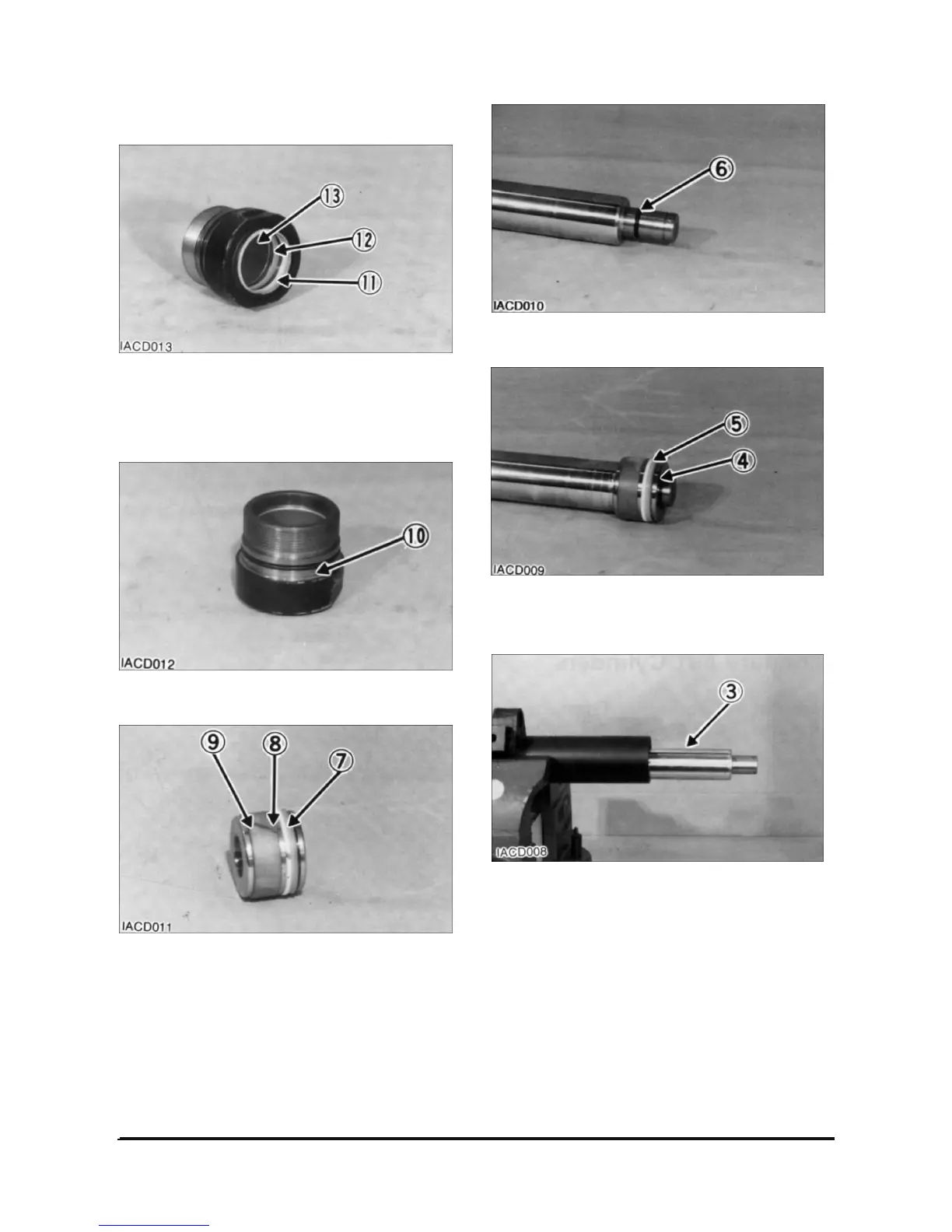

Assemble Secondary Lift Cylinders
1. Install bush (13) and seal (12).
2. Install wiper seal (11). Install the seal with the lip
toward the outside.
3. Install O-ring seal (10) onto the head assembly.
4. Install seal (9), back-up ring (8) and O-ring seal
(7) on the piston.
5. Install O-ring seal (6) on the cylinder rod.
6. Install piston (5) and retaining ring (4) on the
cylinder rod.
7. Install cylinder rod (3) in the cylinder body.
