Vehicle Systems Disassembly & Assembly 33

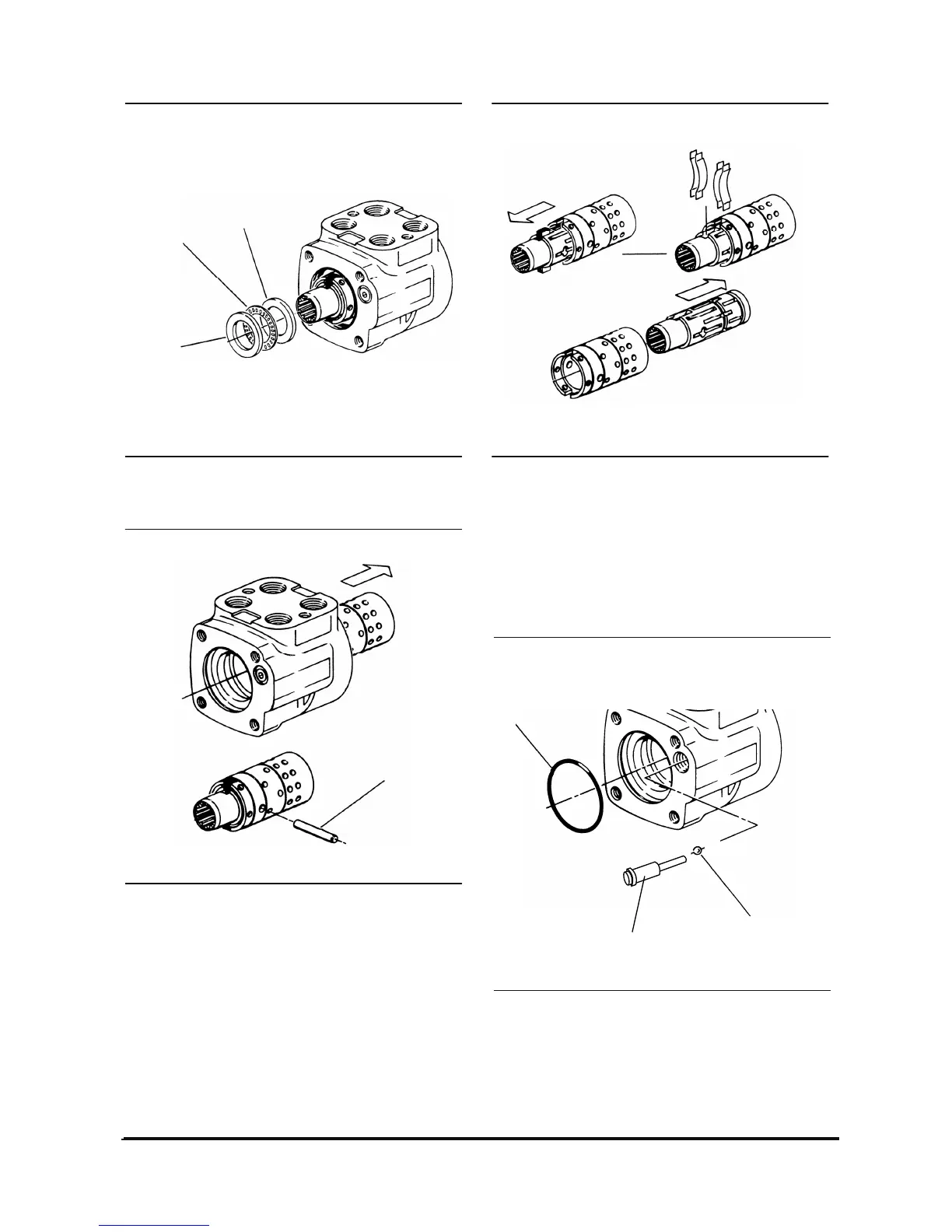

15. Remove 2 bearing races and the needle thrust
bearing from spool and sleeve assembly.
16. Remove spool and sleeve assembly from 14
hole end of housing.
ATTENTION: Do not bind spool and sleeve in housing.
Rotate spool and sleeve assembly slowly when
removing from housing.
17. Push pin from spool and sleeve assembly.
18. Push spool partially from control end of sleeve,
then remove 4 centering springs from spool
carefully by hand.
19. Push spool back through and out of sleeve.
Rotate spool slowly when removing from sleeve.
20. Remove seal from housing.
21. Remove check ball seat.
22. Tip housing to remove check ball.
IDCD286S
Pin
IDCD287S
IDCD288S
Check Ball
Check Ball Seat
Seal
Bearin
To Next Page
