Vehicle Systems Disassembly & Assembly 38
Spacer
Actual
Displacement
㎤/r(in/r)
Length mm [in.]
45 [2.8] None
60 [3.6] None
75 [4.5] None
95 [5.9] 3.56 [.140]
120 [7.3] 6.10 [.240]
145 [8.9] 10.29 [.405]
160 [9.7] 12.19 [.480]
185 [11.3] 15.62 [.615]
230 [14.1] 21.97 [.865]
295 [17.9] 28.45 [1.120]
370 [22.6] 41.15 [1.620]
460 [28.2] 53.67 [2.113]
590 [35.9] 66.37 [2.613]
740 [45.1] 91.77 [3.613]

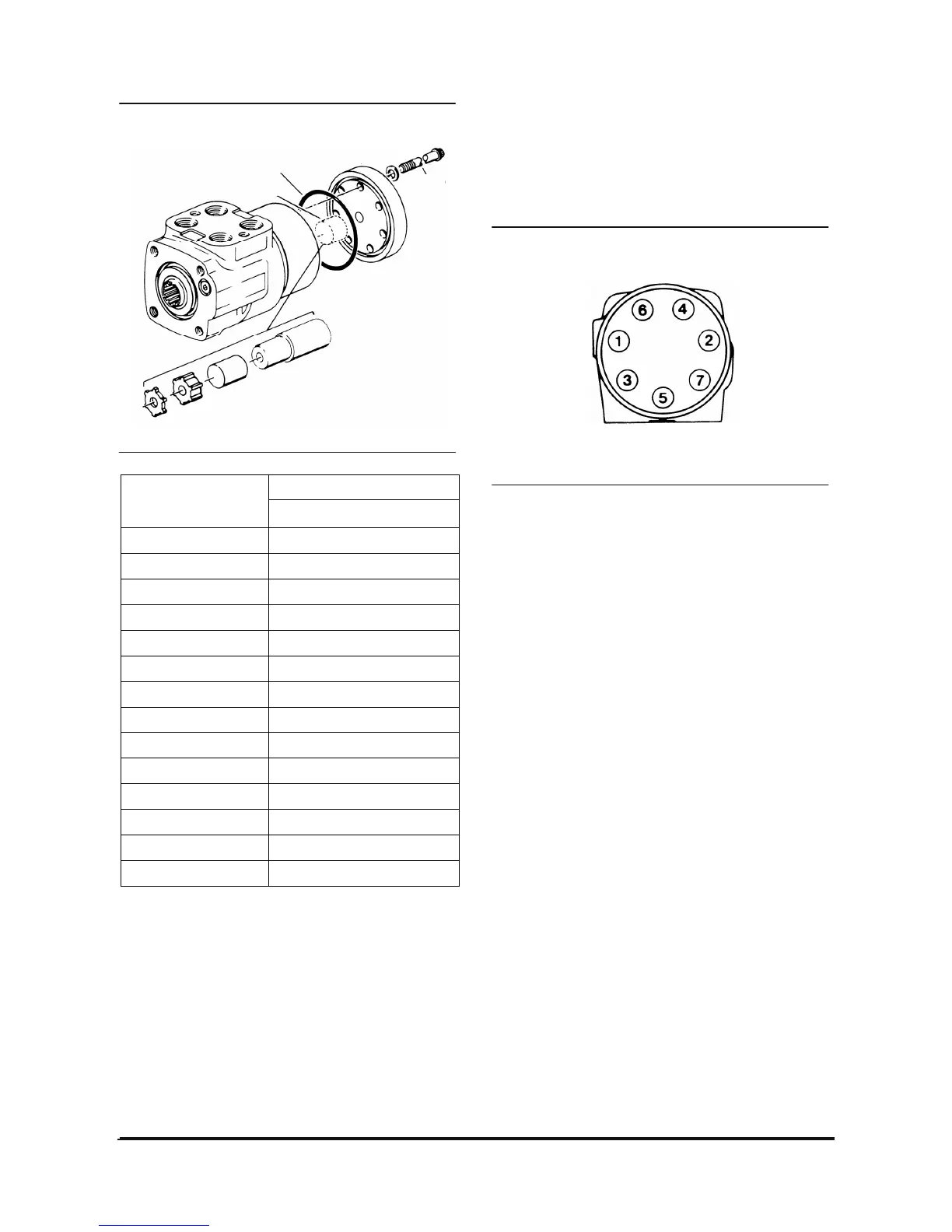

24. Install drive spacer (s) when used, in meter.
25. Install 73.5 mm [2.89 in.] ID seal in gerotor
(meter) or end cap, see notes.
26. Install end cap on gerotor, align holes.
27. Install 7 dry cap screws in end cap. Pretighten
screws to 11-17 N·m [100-150 lb·in] then torque
screws to specifications.
IDCD301P
Drive Spacer(s)
Seal
IDCD302P
