Vehicle Systems Disassembly & Assembly 54

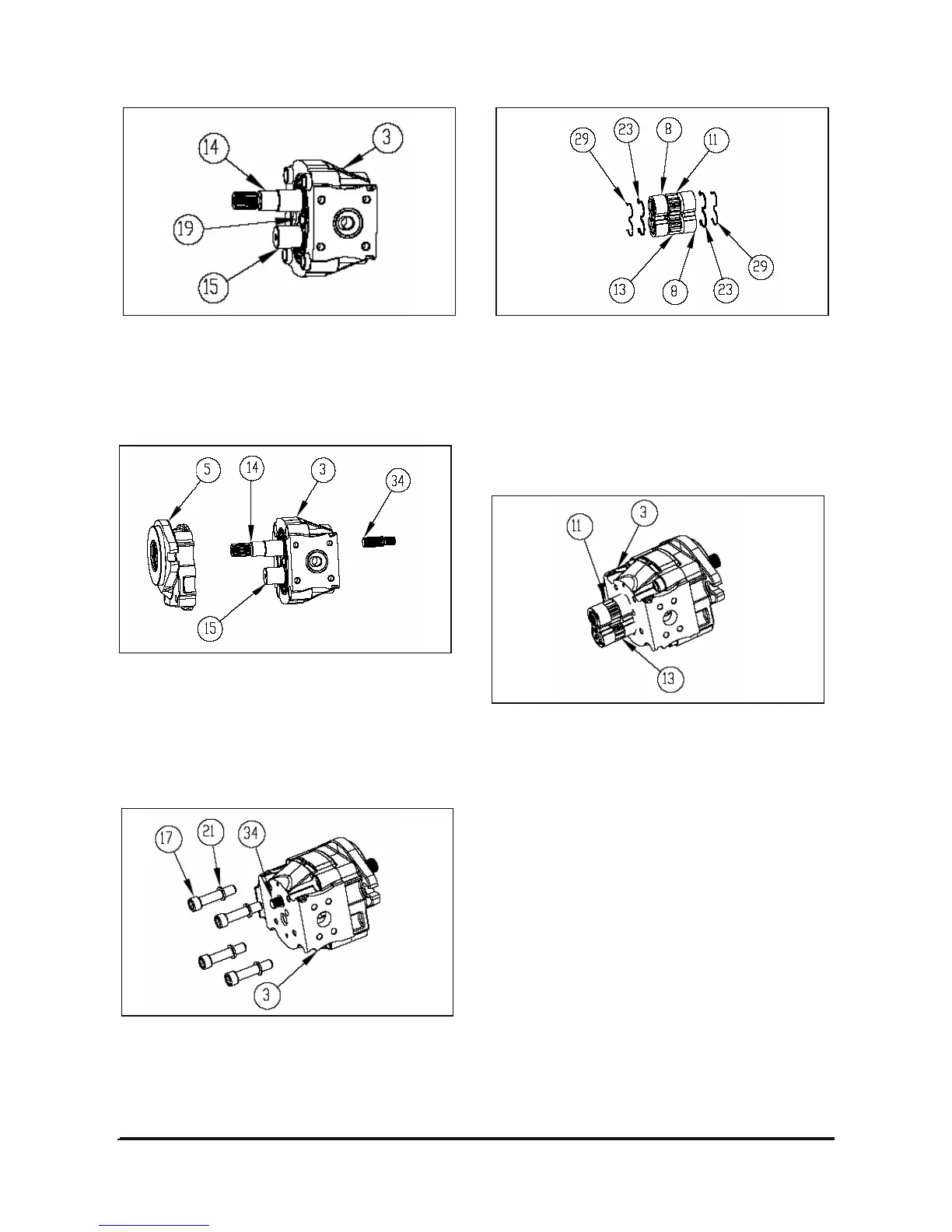

4. Insert the driving gear (14) and driven gear (15)
into working section (3) while keeping the gears
straight.
Locate thrust plate(9+24+30) with care for the
direction
5. Locate the completed mounting flange (5+27+28)
to working section (3) while tacking care not to
give any damage on the shaft seal by edge of
shaft(14).
6. Insert the through shaft (34) to rear side of the
driving shaft (14).
7. Tighten the bolt (17) with washer (21) in a cross
pattern to torque valve of 140Nm.
8. Locate the o-ring (23) on the groove ore-arranged
on the thrust plate (8).
9. Then, locate back-up ring (29) on the groove pre-
arranged on the seals (8, 23).
Smear clean grease on the seal(8,23)
(The front and rear thrust plates and seals and
back-up ring are same.)
10. Insert the driving shaft(11) and driven gear (13)
including the completed thrust plate(8+23+29)
into working section(3) while keeping the plate
straight.
