Vehicle Systems Disassembly & Assembly 59

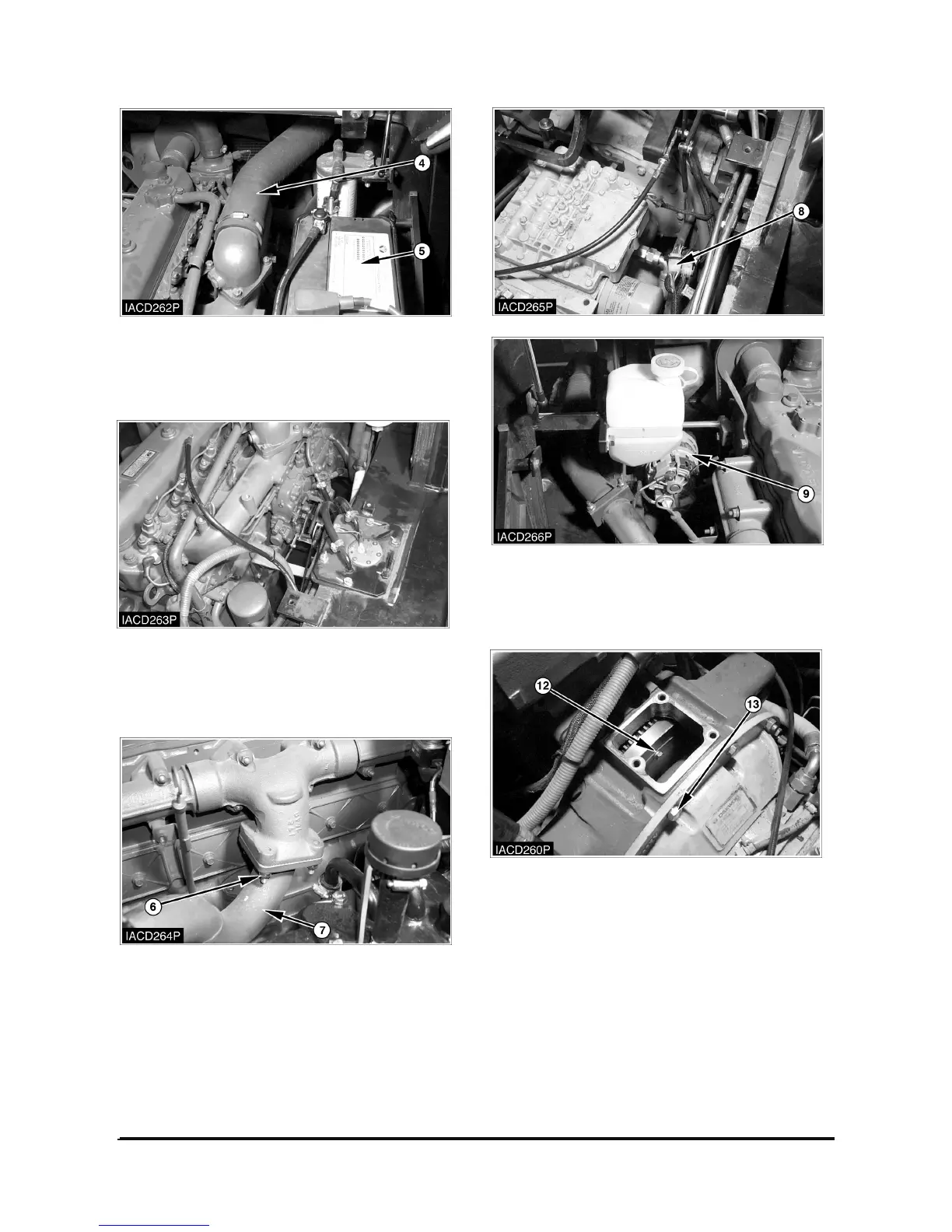

2. Disconnect air intake hose (4).
3. Disconnect battery cables and remove battery (5)
and battery tray assembly.
4. Disconnect fuel lines from the engine.
5. Disconnect accel cable and engine stop motor
cable from the engine.
6. Loosen nuts (6) and disconnect exhaust tube (7).
7. Disconnect engine wire harness (8). Disconnect
wires from the alternator (9). To remove engine
from the truck, other wires or connectors not
shown should be disconnected.
8. Remove housing cover.
Remove bolts (12) that hold the converter to the
flywheel.
NOTE: At this point, make a final check to be sure
all removals and disconnections have been made
from the engine.
9. Support engine with a hoist and tooling (A).
Support transaxle with wood block.
10. Remove bolts (13) and nuts from the converter
housing.
