022-00029AE Operation and Maintenance Manual Inspection, Maintenance and Adjustment 4-9
CHECK TRANSMISSION OIL LEVEL
NOTE: When checking level using a
dipstick always remove and
wipe it clean before making
final level check.
1. Use two people to perform this operation.
2. Start engine and move machine to a level
area.
3. Place transmission lever in "NEUTRAL."
4. Apply parking brake.
5. Allow engine to idle until engine
temperature is between 82°C (180°F) and
93°C (200°F).

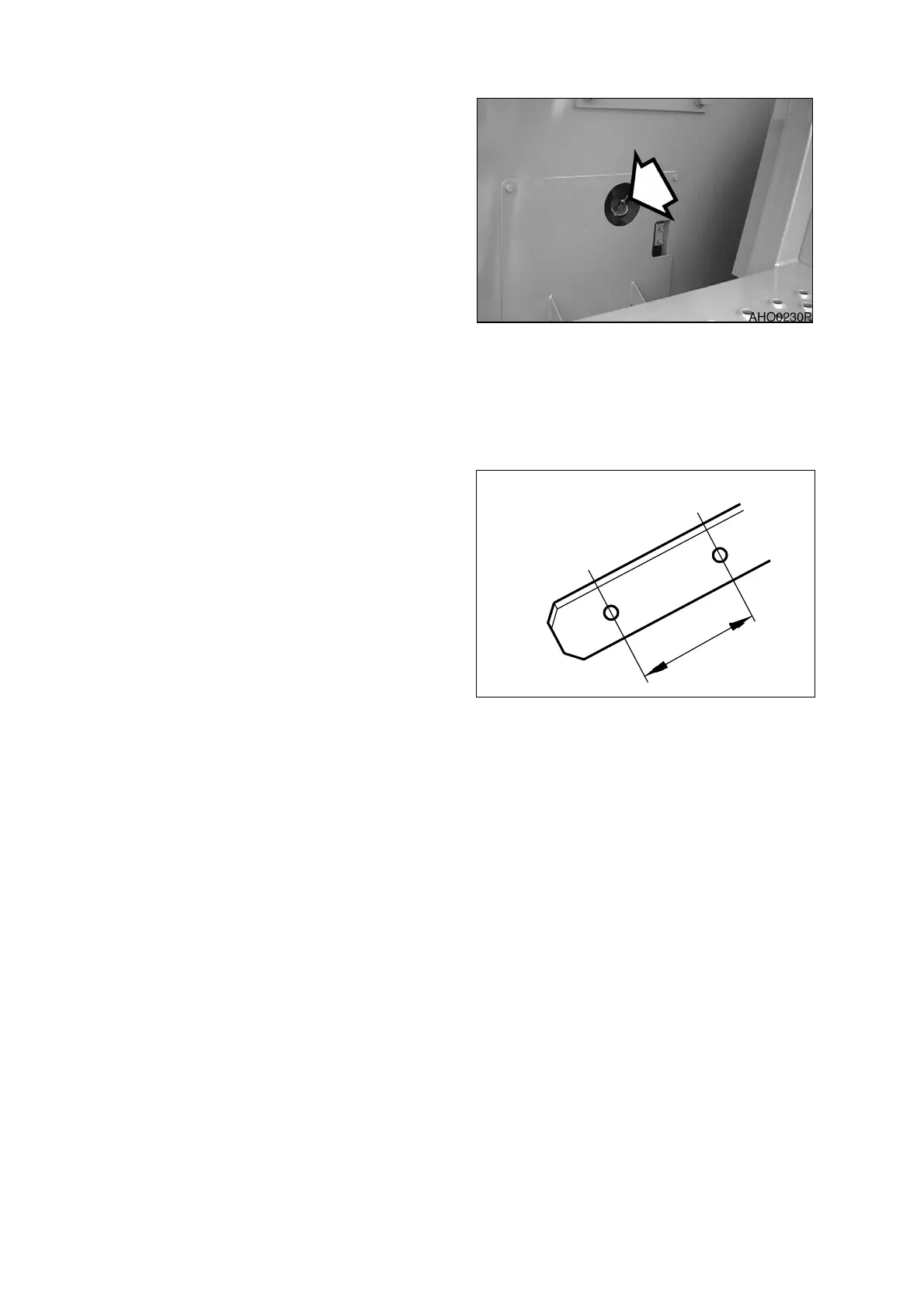

6. Remove transmission dipstick (Figure 6).
Wipe dipstick clean and then insert it back
into transmission.
7. Remove dipstick and check oil level mark.
Oil level must be between “COLD” and
“HOT” marks (Figure 7).
8. To add oil, remove transmission fill cap
(Figure 6) from transmission oil filler pipe.
9. Shutdown engine when done.
Figure 6
HAOC281L
C
H
Figure 7
