Doosan Mega 500-V User Manual

022-00029AE Operation and Maintenance Manual Operating Controls 2-5

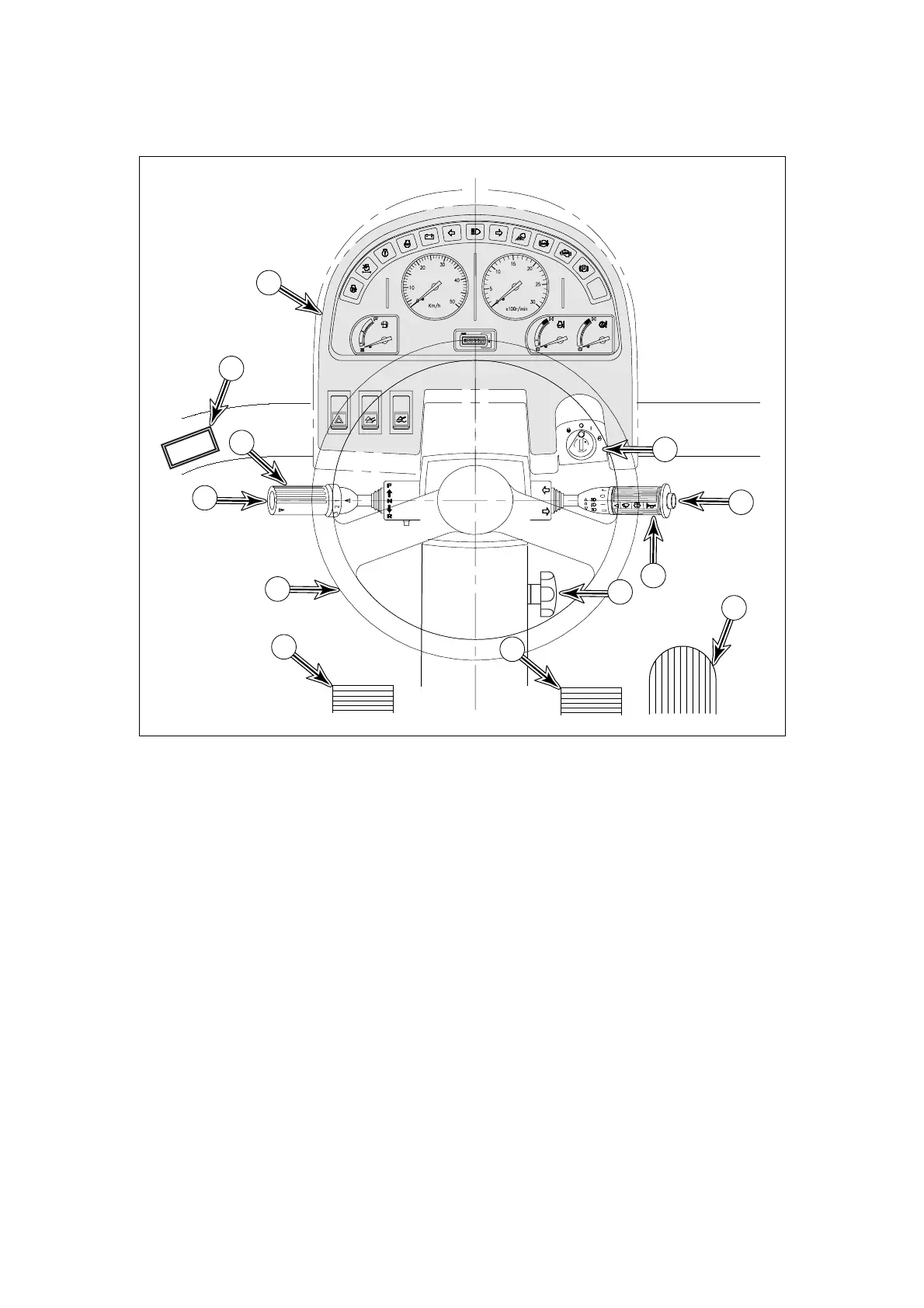

STEERING CONSOLE AND PEDALS
1. STARTER SWITCH
2. HORN BUTTON
3. COMBINATION SWITCH LEVER
4. ACCELERATOR PEDAL
5. STEERING TILT KNOB
6. BRAKE PEDALS
7. STEERING WHEEL
8. KICK-DOWN SWITCH
9. TRANSMISSION LEVER
10. FRONT INSTRUMENT PANEL (See page
2-12)
11. TRANSMISSION DISPLAY (See page
2-21)
Figure 3
11
5
6
6
4
2
1
3
7
8
AQO0340L
10
9
