022-00029AE Operation and Maintenance Manual Operating Controls 2-49
DOOR SIDE LATCH
1. The door side latch (1, Figure 101) is used
to secured the door to the side of the cab
when it is opened (Only cabin machine).
NOTE: Keep the door closed and
locked when machine is not in
use.
2. To release door from side of cab, push the
latch lever (Figure 102) down. The latch
lever is to the left of the operator’s seat.

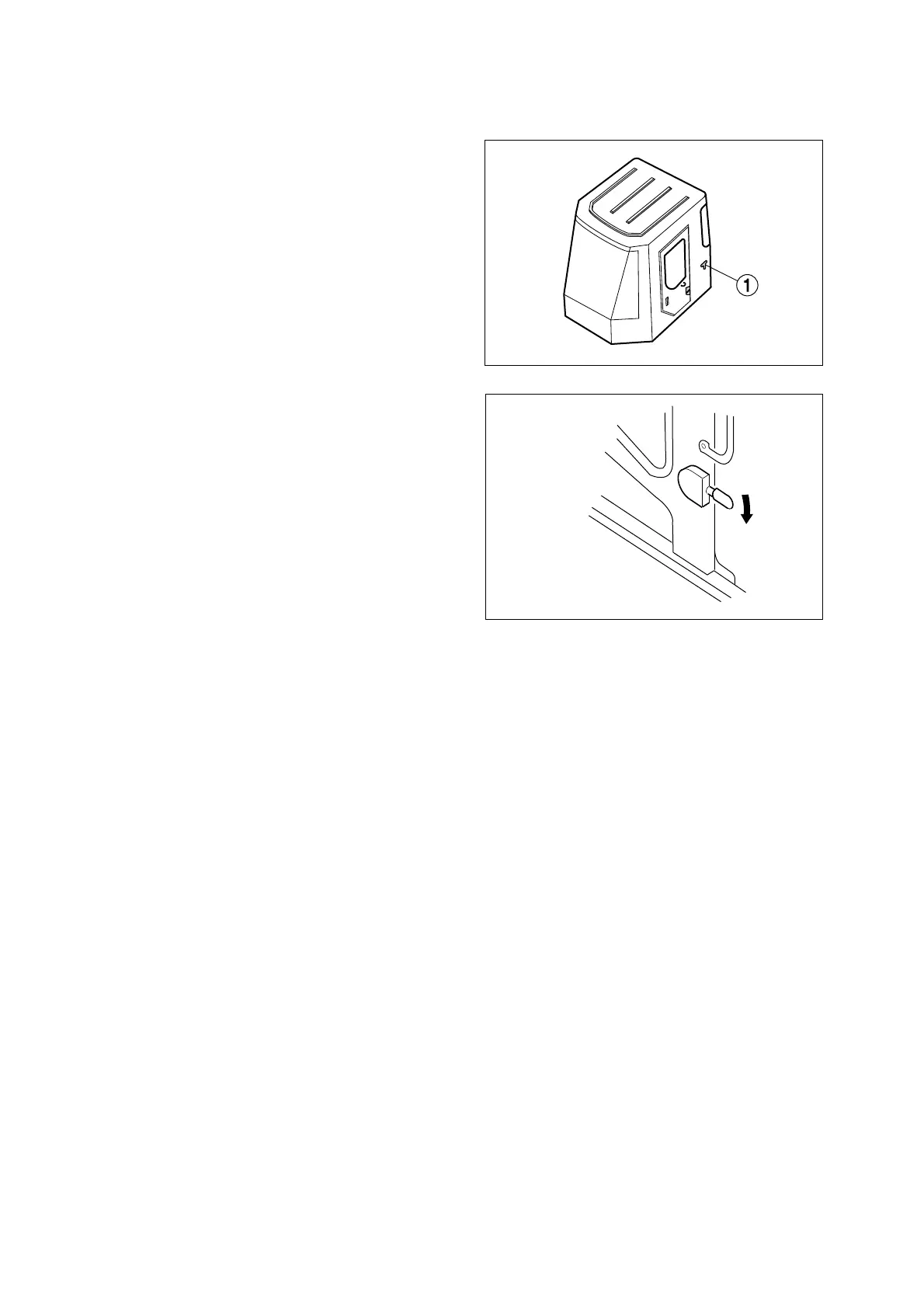

HA3O2042
Figure 101
HAOB250L
Figure 102
