HEATER AND AIR CONDITIONER OPERATION

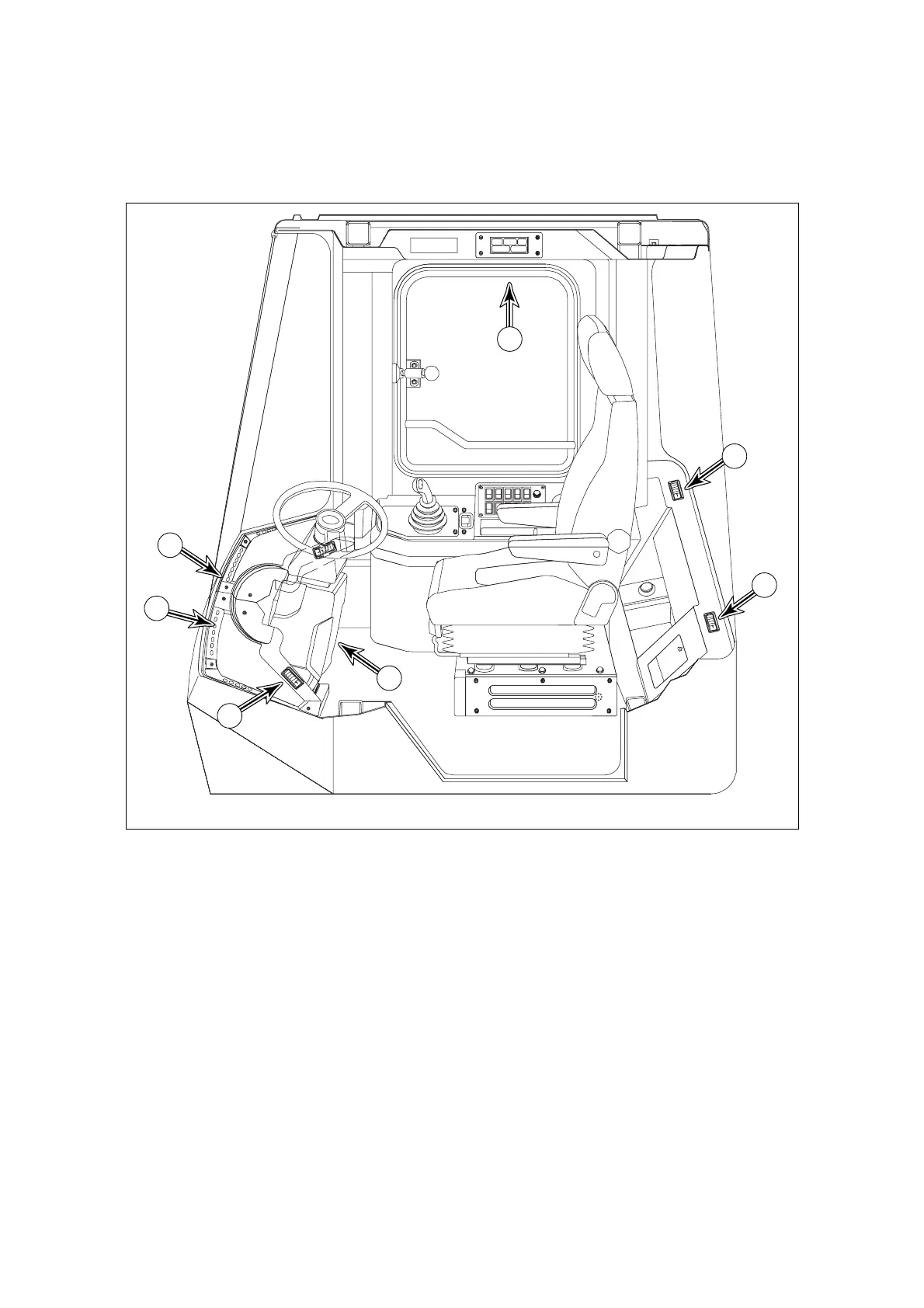

LOCATION OF CONTROLS AND VENTS
1. OPERATION PANEL
2. FRONT NOZZLE (AIR-CON)
3. FRONT NOZZLE
4. FOOT NOZZLE
5. REAR NOZZLE
The heater and air-conditioner are combined into one unit to the rear of the operator’s seat. If necessary,
the operator can control inner temperature using the operation of panel installed in the right control stand.
5
5
4
3
3
2
1
HBOI310L
Figure 79
