2-38 Operating Controls 022-00029AE Operation and Maintenance Manual

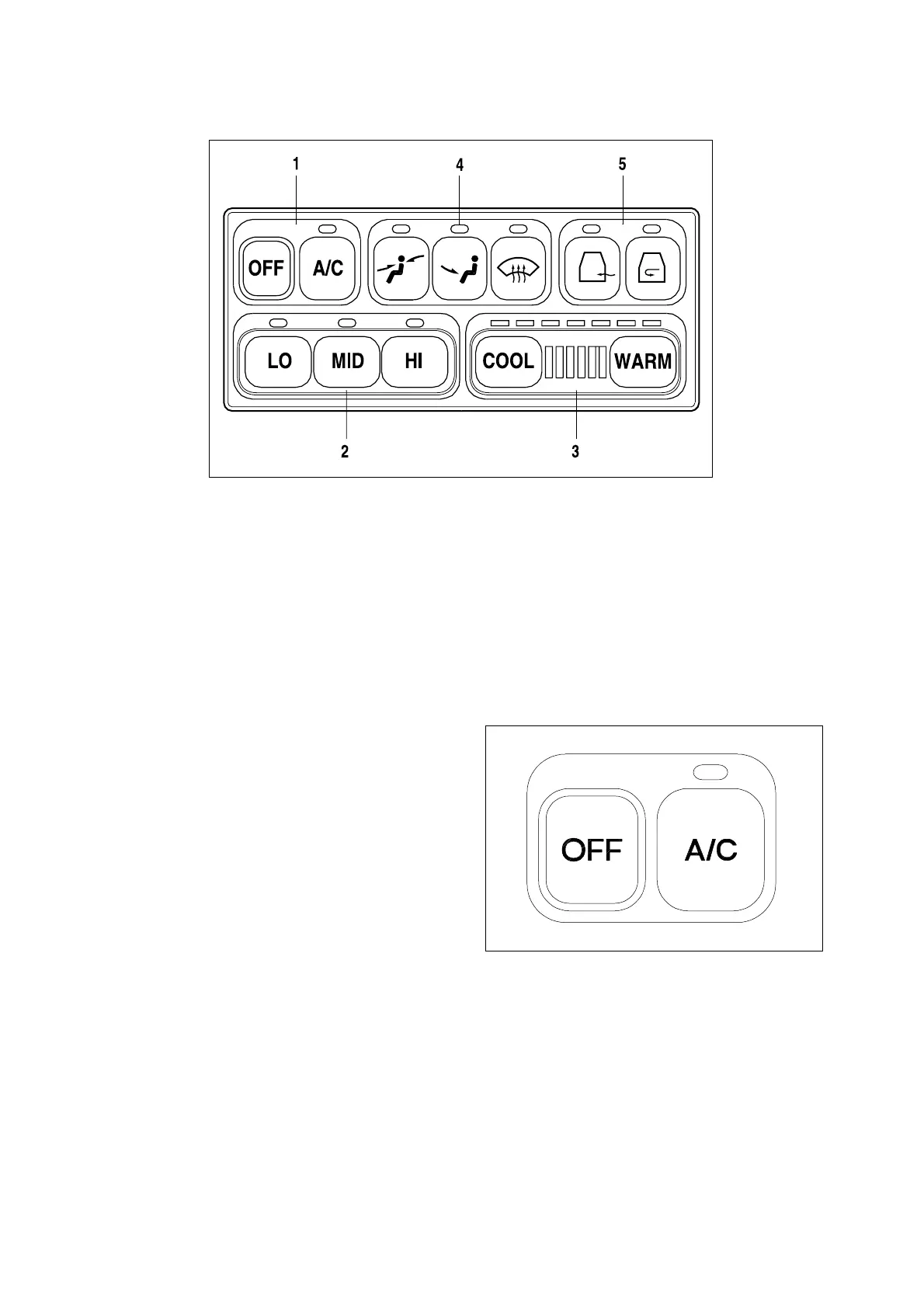

OPERATION PANEL
1. FAN AND AIR-CONDITIONER SWITCH
2. BLOWER FAN SWITCHES
3. TEMPERATURE CONTROL SWITCH
4. SELECTION SWITCH FOR WIND
DIRECTION
5. VENTILATION SELECTION SWITCH
When a switch is selected, the LED above that switch will turn "ON" and give an activation sound.
When the light switch is turned "ON," the panel LED’s will turn "ON."
1. FAN AND AIR CONDITIONER SWITCH
A. "OFF" Switch - Turns "OFF" the
heater and air conditioner unit.
B. "A/C" Switch - Turns "ON" the air
conditioner when one of the blower
switches is activated.
HAOA801L
Figure 80
ARO0510L
Figure 81
