2-50 Operating Controls 022-00029AE Operation and Maintenance Manual
FUSE BOX/RELAY
FUSE BOXES
There are two fuse boxes inside the cab.
Fuse box one (1, Figure 103) is in the rear side
of right control stand. A usage diagram of fuses
is shown inside of fuse box. Spare fuses are
under the cover (10A - Qty. 1, 15A - Qty. 1, 20A
- Qty. 1).
Fuse box two (2, Figure 103) is just above the
windshield washer fluid tank.
WARNING!
If any fuse is blown, turn "OFF" the starter
switch and shut off the power supply.
Remedy the cause if needed and replace
the fuse with a new one.

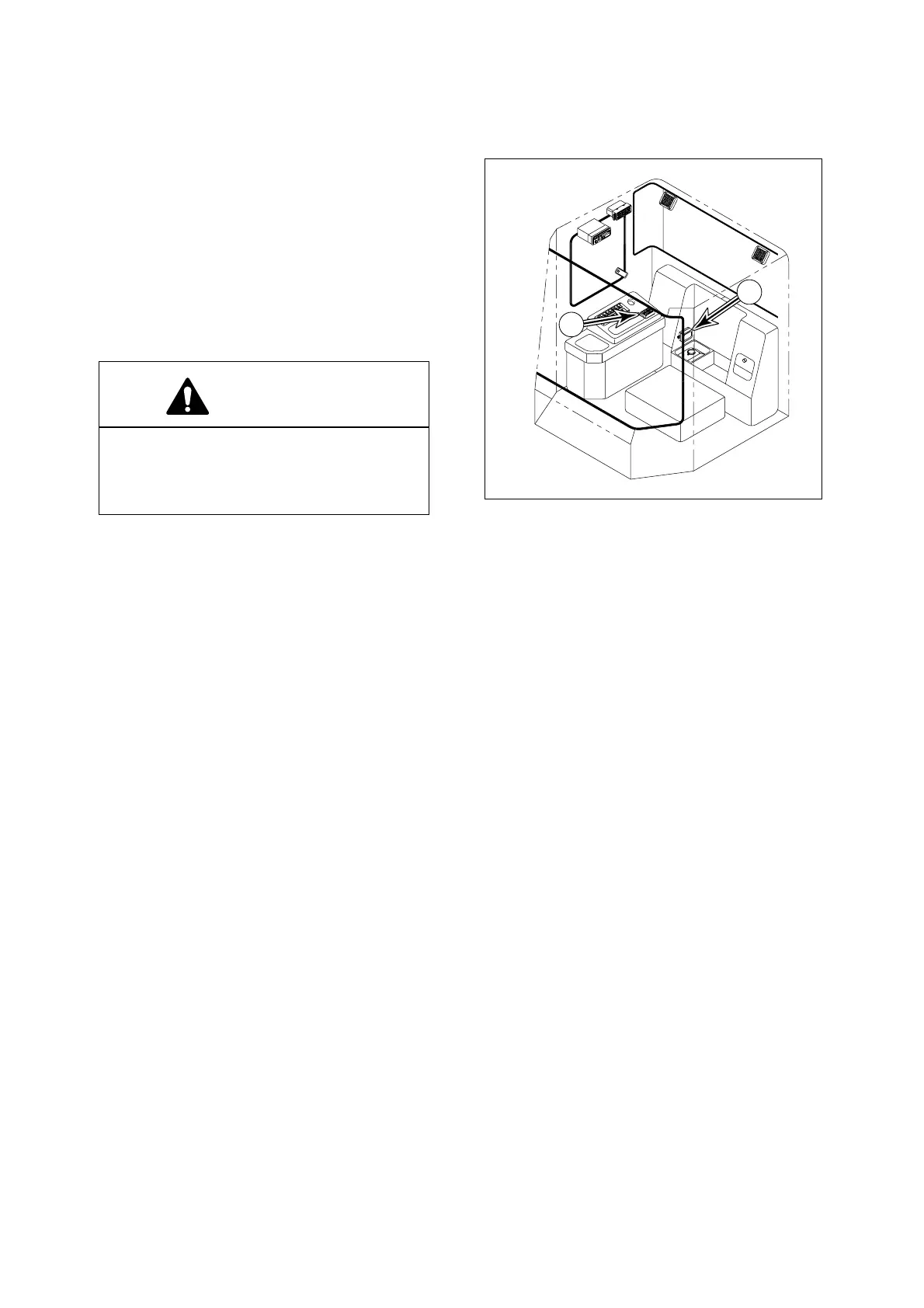

1
2
AQO0160L
Figure 103
