Fuse Box One
No. Name Capacity
1 Gauge Panel 15A
2 Transmission 15A
3 Front Wipers, Horn 15A
4 Parking Brake, Pilot
Cutoff, Log Fork (Option)
15A
5 Stop Light, Headlight 20A
6 Condenser Fan
Engine Derating
15A
7 Spare 15A
8 Air-conditioning, Heater 30A
9 Work Light (Front),
Beacon (Option)
15A
10 Work Light (Rear) 15A
11 Turn Signal Light, Hazard
Light, Indicator Light
15A
12 Stereo, Cab Light,
Fuel Pump
15A
13 Memory Backup,
Pilot Buzzer
10A
14 Starter Switch 10A
Fuse Box Two
No. Name Capacity
1 Cigar Lighter, Rear Wiper 15A
2 LIS (Option), Detente 10A
3 Position Light (Right) 10A
4 Position Light (Left) 10A
5 ECM 10A
6 ECM 10A
HBOI380L

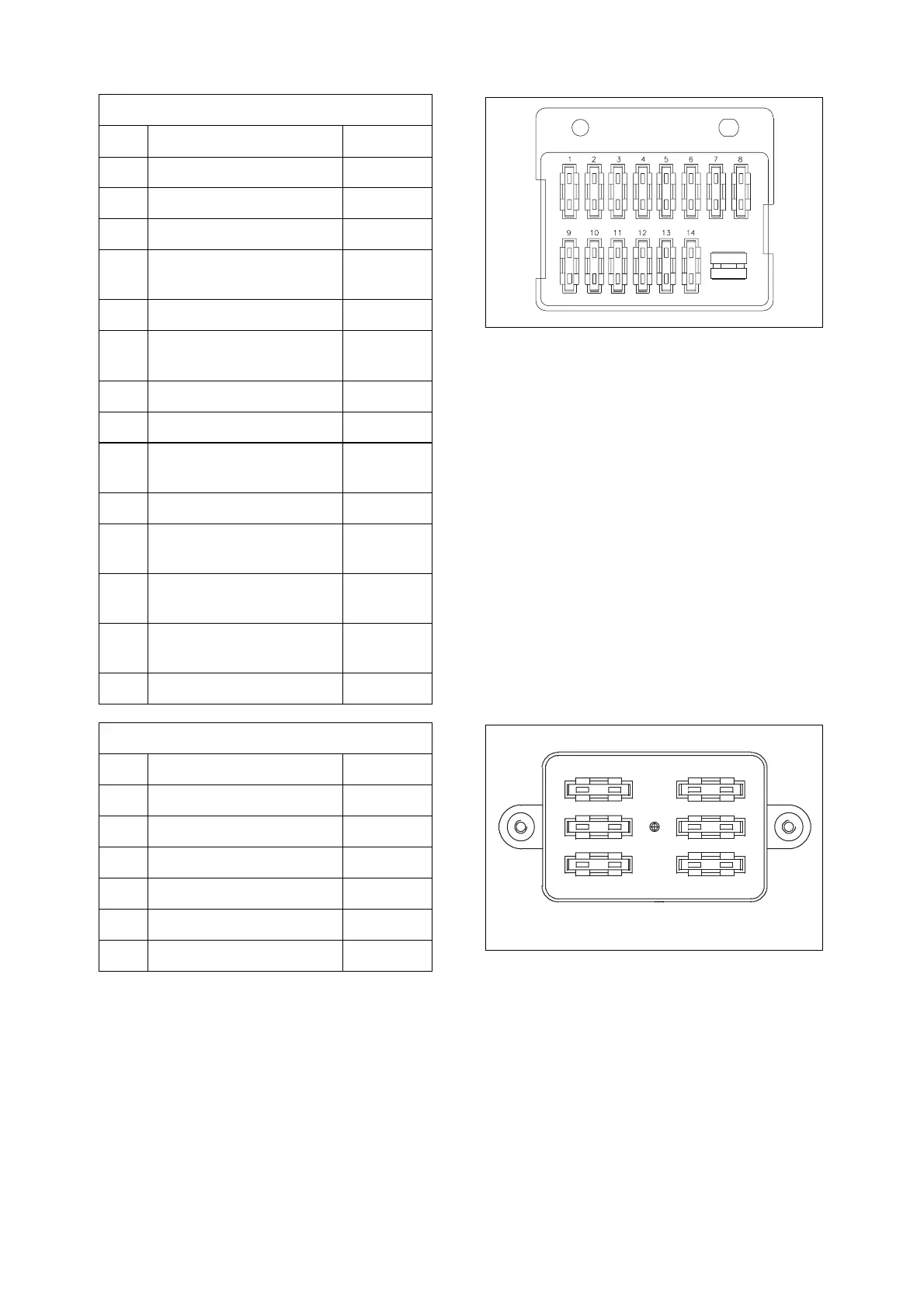

Figure 104 FUSE BOX ONE
5
2
1
4
6
3
HAAA3740
Figure 105 FUSE BOX TWO
