2-52 Operating Controls 022-00029AE Operation and Maintenance Manual
RELAY

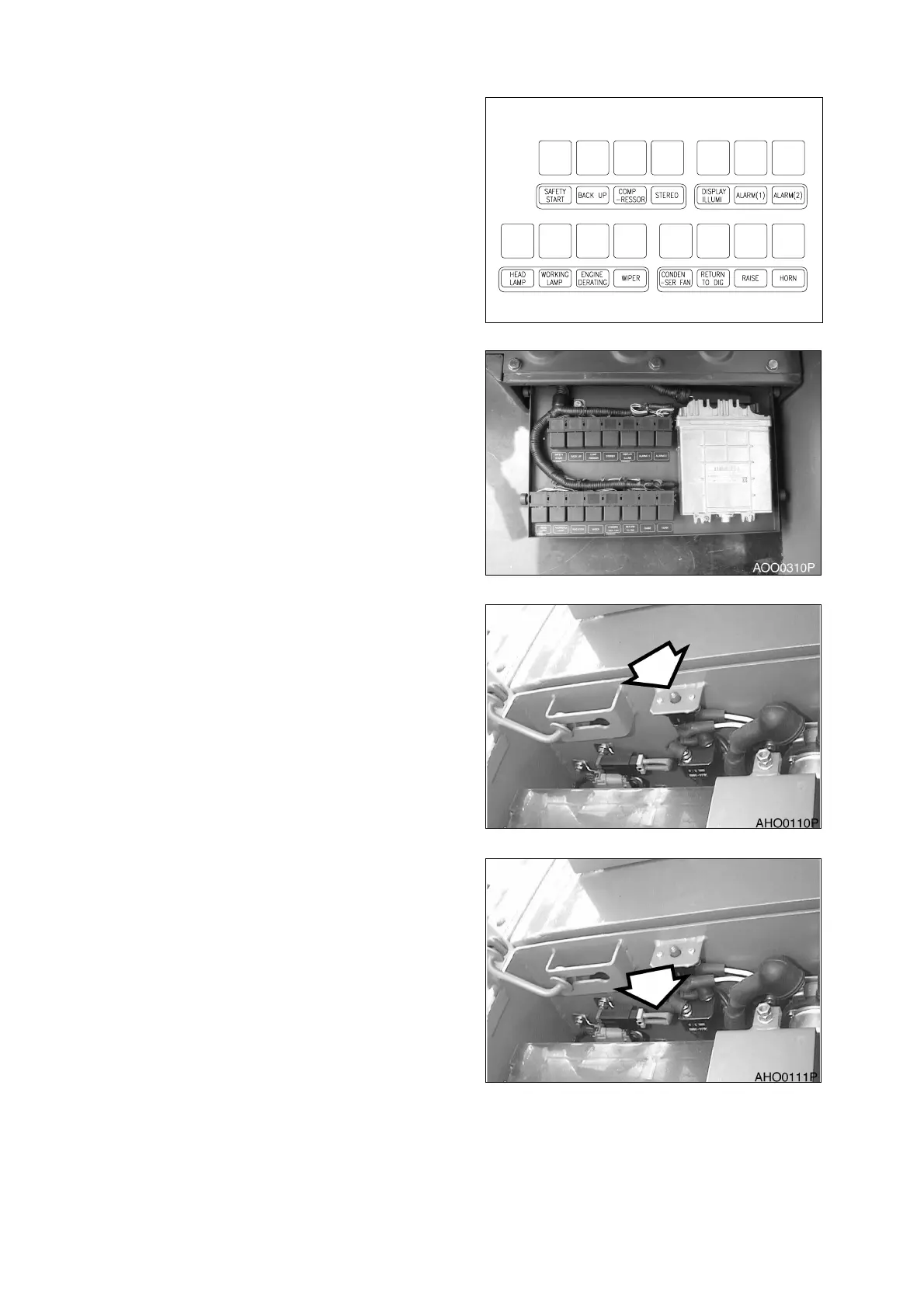

The relays are in the electrical box under the
seat. If the problem is not solved after replacing
the fuse, check the function of the relay.
CIRCUIT BREAKER
A circuit breaker is next to the relay by the
batteries at back of unit under engine
compartment hood. When a short circuit or an
overload occurs, the circuit breaker
automatically cuts-off current, thus preventing
electrical wires from burning.
FUSIBLE LINK
A fusible link is in the battery box. If electric
power is not present at the "I" (ON) position of
the starter switch, check the fusible link first.
NOTE: If fuse wire is burnt off, replace
link.
