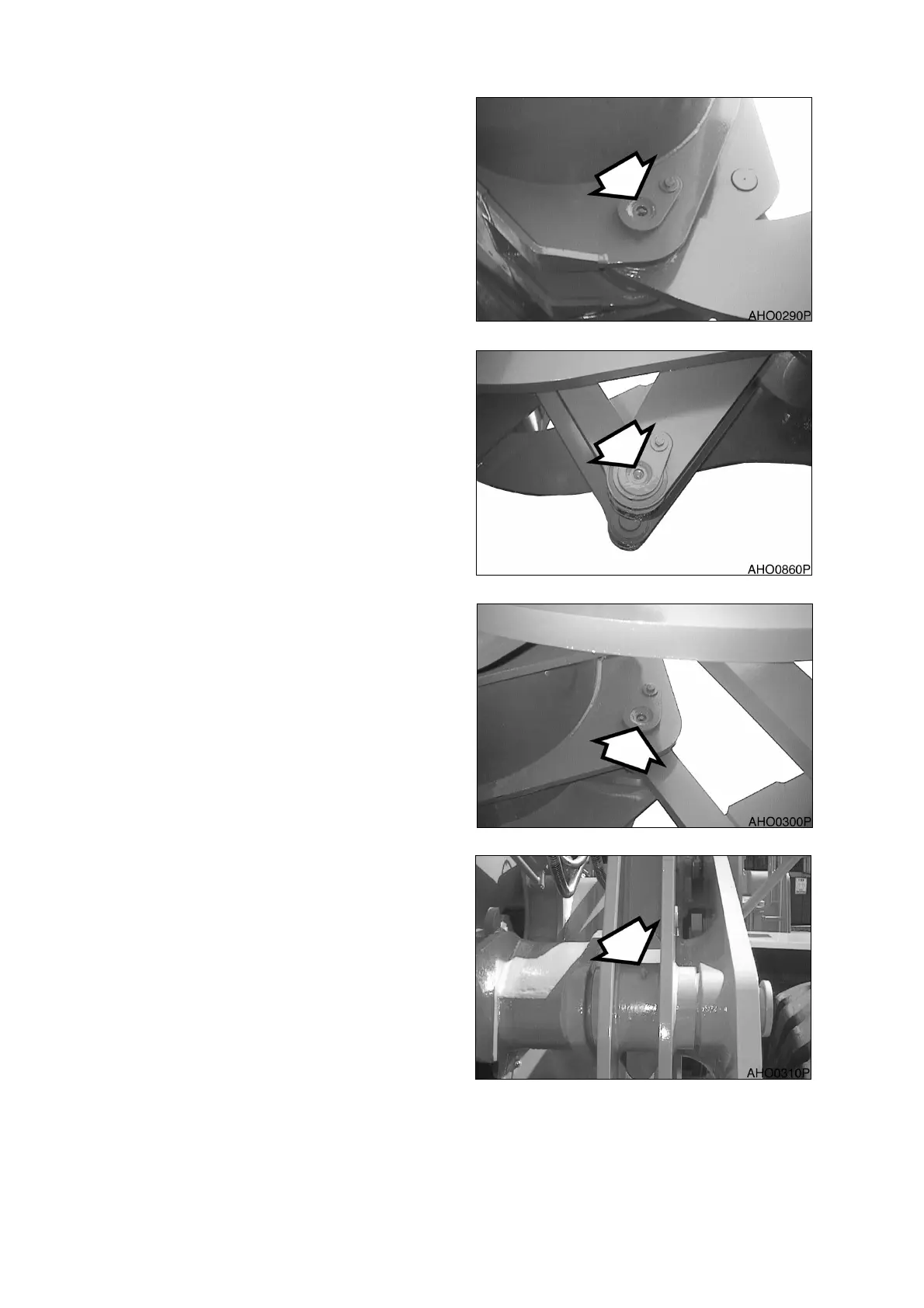

A: Bucket hinge pins, 2 locations (Figure
27).
Lever link connecting pins, 2
locations (Figure 28).
Bucket link connecting pins, 2
locations (Figure 29).
B: Arm lever connecting pins (left, right),
2 locations. (Figure 30)
Figure 27
Figure 28
Figure 29
Figure 30
