022-00029AE Operation and Maintenance Manual Inspection, Maintenance and Adjustment 4-23
GREASE STEERING CYLINDER ROD AND
BASE ENDS
1. Steering cylinder rods, 2 locations, one on
each side of machine.
2. Steering cylinder head ends, 2 locations.
Use remote grease fittings mounted on
frame.
GREASE UPPER AND LOWER CENTER PINS
1. Center pins, upper (Figure 42) and lower (Figure 43). Two locations on each side of machine.
CHANGE ENGINE OIL AND FILTER (INITIAL)
NOTE: Engine oil and filter must be changed after first 50 hours of operation to comply with new
machine break-in requirements. After first change, oil and filter should be changed every
250 hours. Follow procedure under 250 hour maintenance interval (See page 4-30).

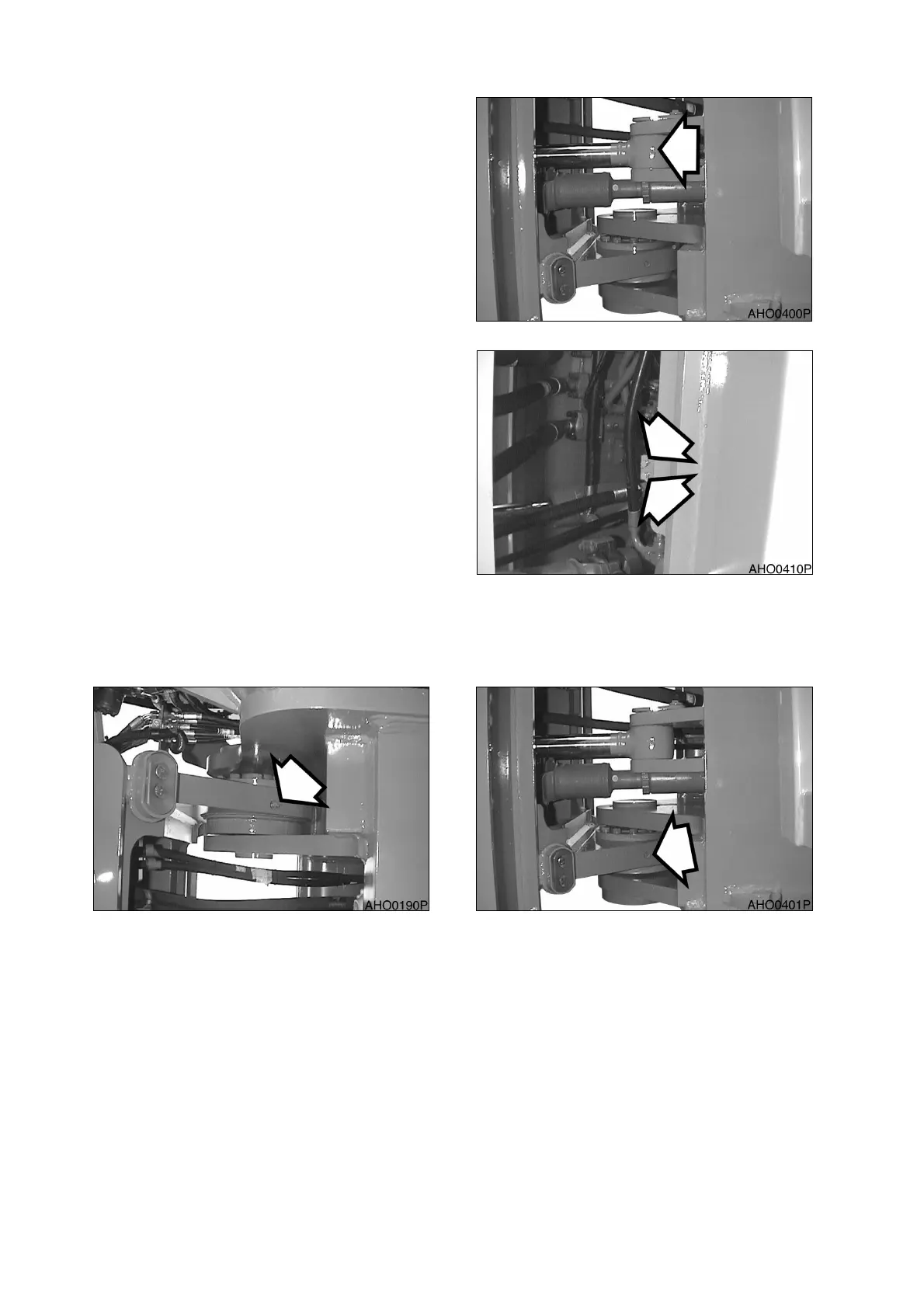

Figure 40
Figure 41
Figure 42 Figure 43
