3. Clean area around level plug (1, Figure
77) and drain plug (2) on center
differential. Remove level plug (1) and
drain plug (2). Allow oil to drain into a
container.
4. Install drain plug (2, Figure 77) into center
differential, and tighten.
5. Pump oil into plug hole for level plug on
center differential. Add oil until oil level is
even with bottom of plug hole. Go to level
plug holes on axle ends. Add oil to these
openings until oil level is even with bottom
of plug hole. Recheck level on center
differential. Add oil if necessary. When oil
level is satisfactory at all three level plug
holes, install and tighten level plugs at all three locations.
6. Repeat procedure for other axle.

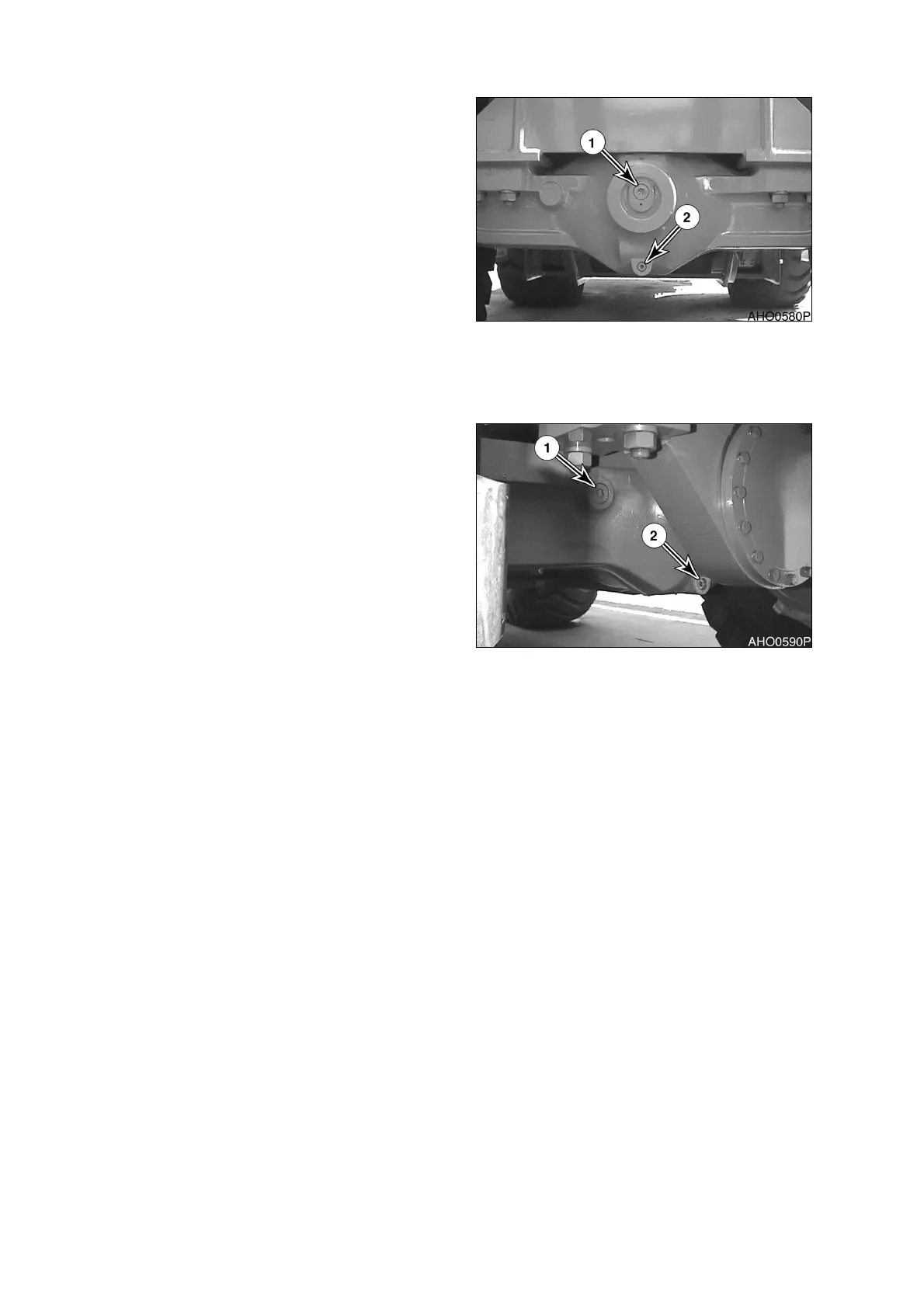

Figure 77 FRONT AXLE
Figure 78 REAR AXLE
