1. Remove strainer cap (4, Figure 90) from inlet hose.
NOTE: Keep strainer cap in a safe location to reseal strainer after refueling is complete.
2. Insert inlet hose (5, Figure 90) into refueling tank.
3. Turn fuel pump switch to “ON” position.
NOTE: The transfer pump rate of flow
is approximately 20 liters /
minute. Use extra care not to
over fill fuel tank so that fuel
does not over flow.
4. Once fuel transfer is completed,
immediately turn switch to “OFF” position
to stop pump.
5. Lift inlet hose from fueling source and turn
switch to “ON” position for 2~3 seconds to
drain remaining fuel from hose to fuel tank.
6. Replace strainer cap (4) to inlet strainer
and return hose to storage position.
1
2
3
4
5
HAOP401L

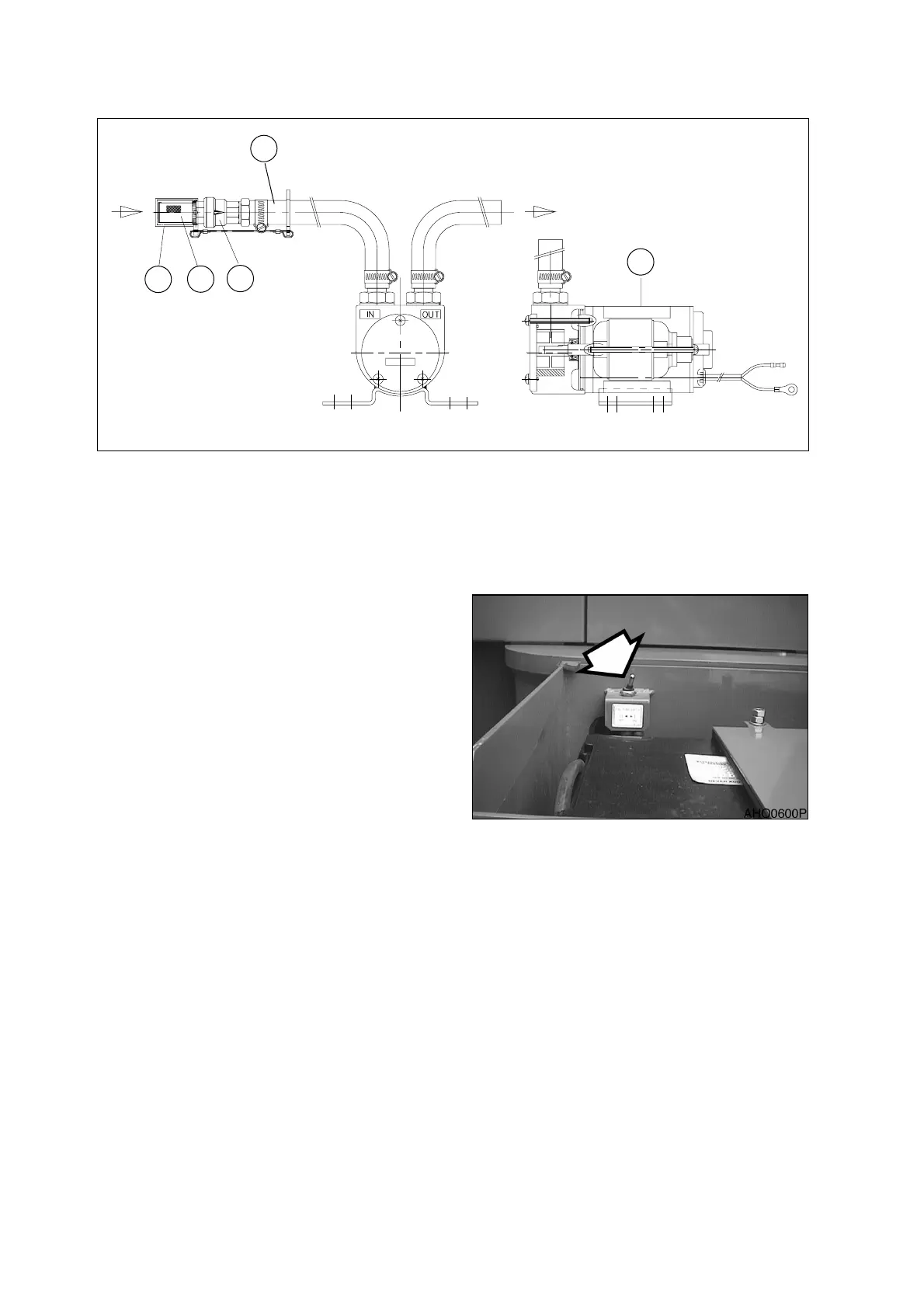

Figure 90
Figure 91
