022-00029AE Operation and Maintenance Manual Operating Controls 2-11

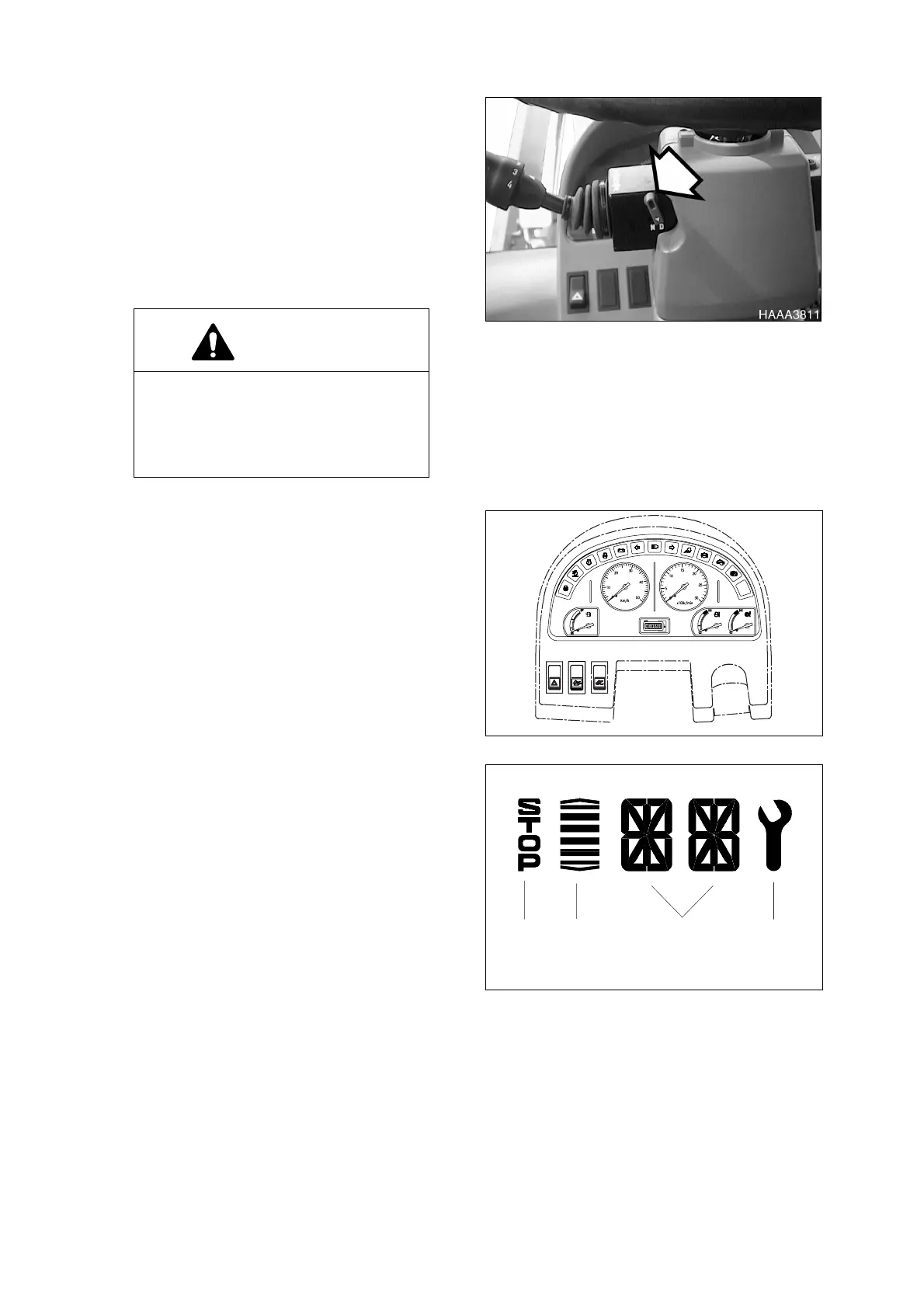

A transmission neutral lever lock is in base
of transmission lever. This neutral lever
lock prevents the transmission lever from
being moved out of "NEUTRAL."
N "NEUTRAL LOCK" position.
Prevents lever from being moved out
of "NEUTRAL."
D "DRIVE" position. Allows lever to be
moved from "NEUTRAL" to
"FORWARD and REVERSE."
10. FRONT INSTRUMENT PANEL
See “Front Instrument panel” on
page 2-12.
11. TRANSMISSION DISPLAY
See “Transmission Display” on page 2-21.
CAUTION!
"LOCK" transmission lever. When
ever machine is parked, "LOCK"
transmission lever in "NEUTRAL" to
prevent accidental machine
movement.
Figure 16
AQO0350L
Figure 17
(D)
(A)
(B)
(C)
AQO0140L
Figure 18
