Dorma ED 100 User Manual

45
150
106
45
120 120 95
451
155
B
D
A
C
120100
32
44
63
4
Upper edge of door
Upper edge of door
Space for cable inlet

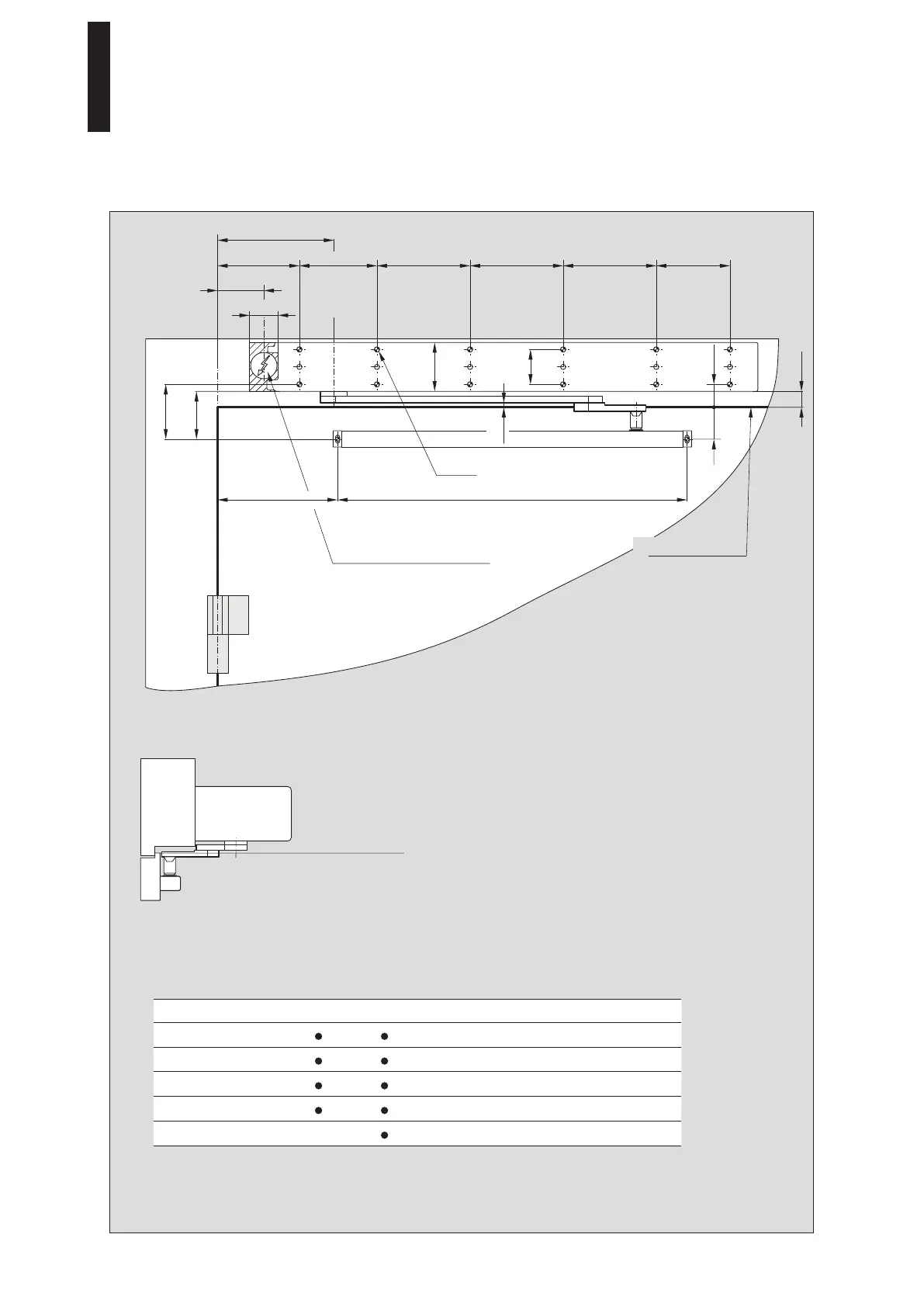

Installation on hinge side, pull version of slide channel CPD, with 25 mm pivot pin
Maximum lintel depth of 60 mm
Ø 6.6
Axle extension ED 100 ED 250 A B C D
Standard (9 mm)
31 mm 74 mm 22 mm 65 mm
20 mm
51 mm 94 mm 42 mm 85 mm
30 mm
61 mm 104 mm 52 mm 95 mm
60 mm
91 mm 134 mm 82 mm 125 mm
90 mm ---
121 mm 164 mm 112 mm 155 mm
 If using the CPD lever, around 30 mm must be
deducted from the real lintel depth when setting
the parameter.
ED 100, ED 250
—
12 DORMA

Dorma ED 100 Specifications

General

Adjustable Closing Speed	Yes
Latching Speed	Adjustable
Type	Electromechanical
Power Supply	230 V AC, 50 Hz
Fire Rated	Yes
Backcheck	Adjustable
Delayed Action	Adjustable
Hold-Open Function	Yes
Finish	Silver
