Dorma ED 100 - Page 23

X
3
4
5

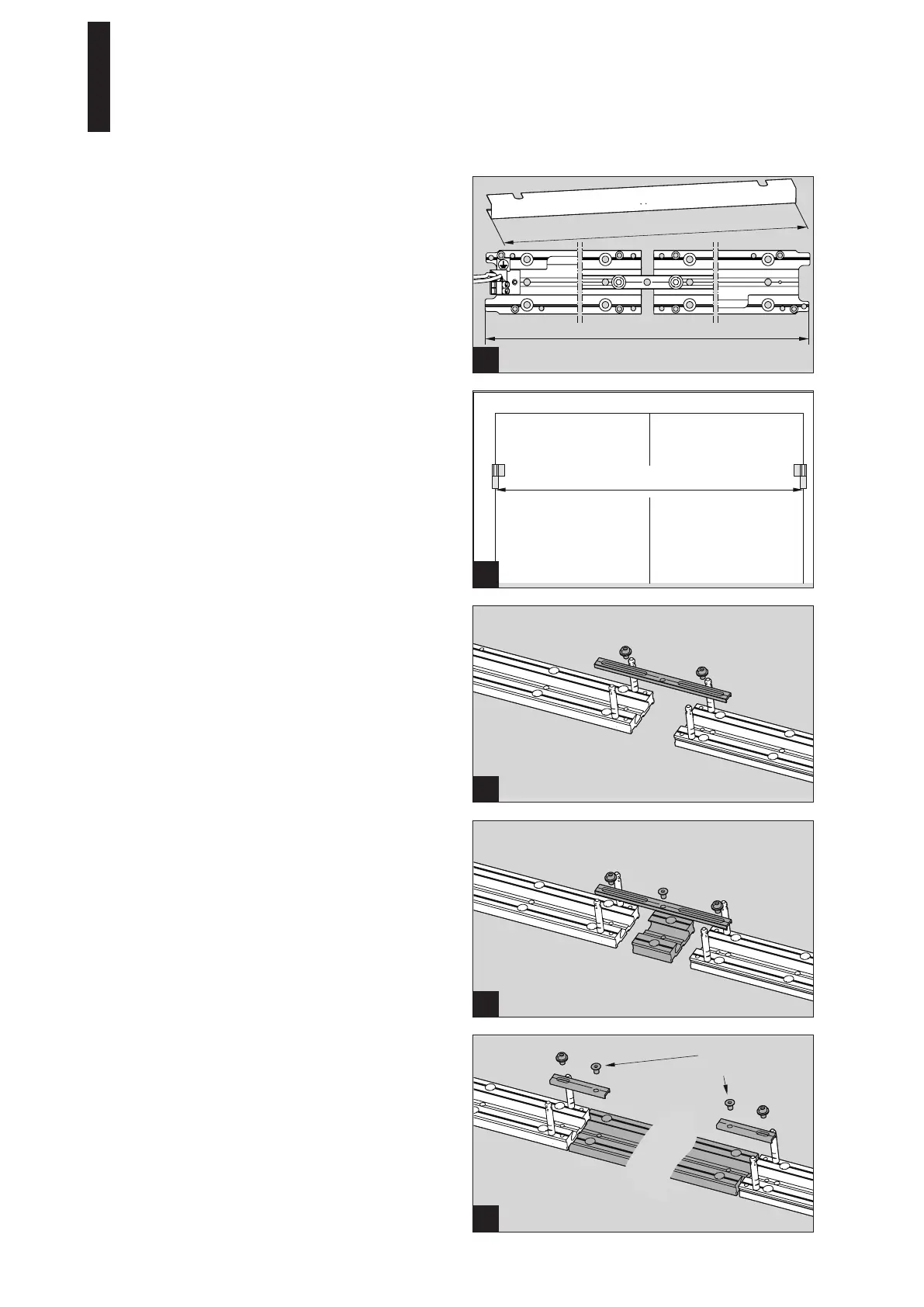

8. Lay the mounting plates on a straight base and align
them accurately.
9. Measure the length of the cover hood and use the
formula hood length - 91 = X to calculate the length of
the assembled mounting plates.
10. Screw the mounting plates together.
Observe the information contained in figures 4 – 7
while doing so.
 After assembling the mounting plates, attach the drives
and check whether the cover fits.
There are three ways of connecting the mounting plates. The
hinge distance determines which one is used.
Hinge distance of 1,400 – 1,415 mm = Connection “A”
Hinge distance of 1,416 – 1,475 mm = Connection “B”
Hinge distance of more than 1,476 mm = Connection “C”
Connection “A”
Hinge distance of 1,400 – 1,415 mm
The long connector is used here.
Hinge distance
6
7
Connection “B”
Hinge distance of 1,416 – 1,475 mm
The long connector and the small
intermediate base plate are used here.
Connection “C”
Hinge distance of more than 1,476 mm
Here 2 short connectors and a suitably
fitted intermediate base plate are used.
Self-tapping screws
ED 100, ED 250
—
23DORMA
